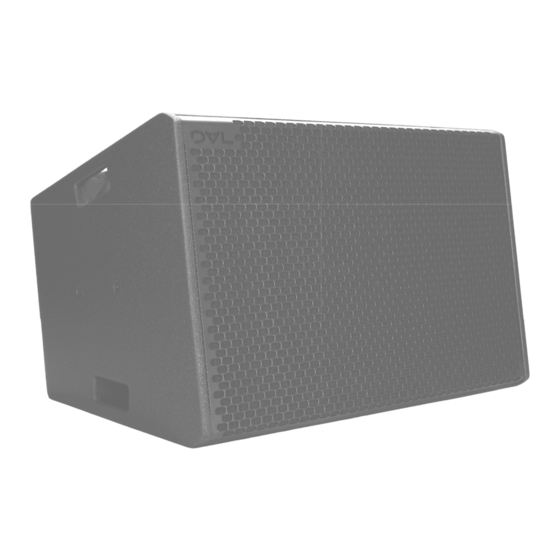

- Page 1 A C O U S T I C S S15N Professional Sound Reinforcement Loudspeaker System Operation Instructions © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL S15N v1.0...
-
Page 2: System Description
PU coating. The S15N provides a horizontal and vertical coverage angel of 90°x 20° (h x v). The S15N system is primarily intended for touring use, but can be ordered with fine textured varnish paint for fixed installation use. - Page 3 This symbol in connection with the signal word "Warning" indicates commands to observe product-relevant operating conditions. © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL S15N v1.0...
-
Page 4: Intended Use And Application
Observe the operating modes described in these operating instructions. Other uses are not permitted. The S15N can be operated without the DAL Control & Drive electronics, but then performance data will differ. In operation avoid Feedback, distorted signals (clipping), peaks resulting from... -
Page 5: Safety Instructions
DAL will not be liable for any damage caused in this way and will not accept any warranty or liability for consequential damage. © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL S15N v1.0... - Page 6 © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL S15N v1.0...
-
Page 7: Technical Specifications
For indefinite operation outdoors as in fixed installations, the loudspeaker systems must be protected with a hood against direct sunlight and rain. If With GAE DS-4L © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL S15N v1.0... - Page 8 Installation And Rigging The S15N is primary intended to be used in a Concert System as a stack of 3 units together with 2 BB218 or 3 BB118 Sub-/Low Systems. For the stacking purpose there is a separate stacking cradle available. The stacking operation and handling is described in the S15N Stacking and Rigging Manual.
- Page 9 Gain -1,6dB 540Hz BW0,23Oct/Q=6,3 Gain +3dB 740Hz BW0,26Oct/Q=5,4 Gain -1,4dB 2000Hz BW1,0Oct/Q=1,4 Gain -1,4dB 11000Hz BW 0,3Oct/Q=4,7 Gain +3dB Hi Shelf 12000Hz 12dB/Oct Gain +3dB © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL S15N v1.0...
-
Page 10: Note On Disposal
Applied national standards and technical specifications: DIN 18800, DIN 1055, DGUV regulation 17, BGI 810-13 Hamburg, 01.06.2018 © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL S15N v1.0...
