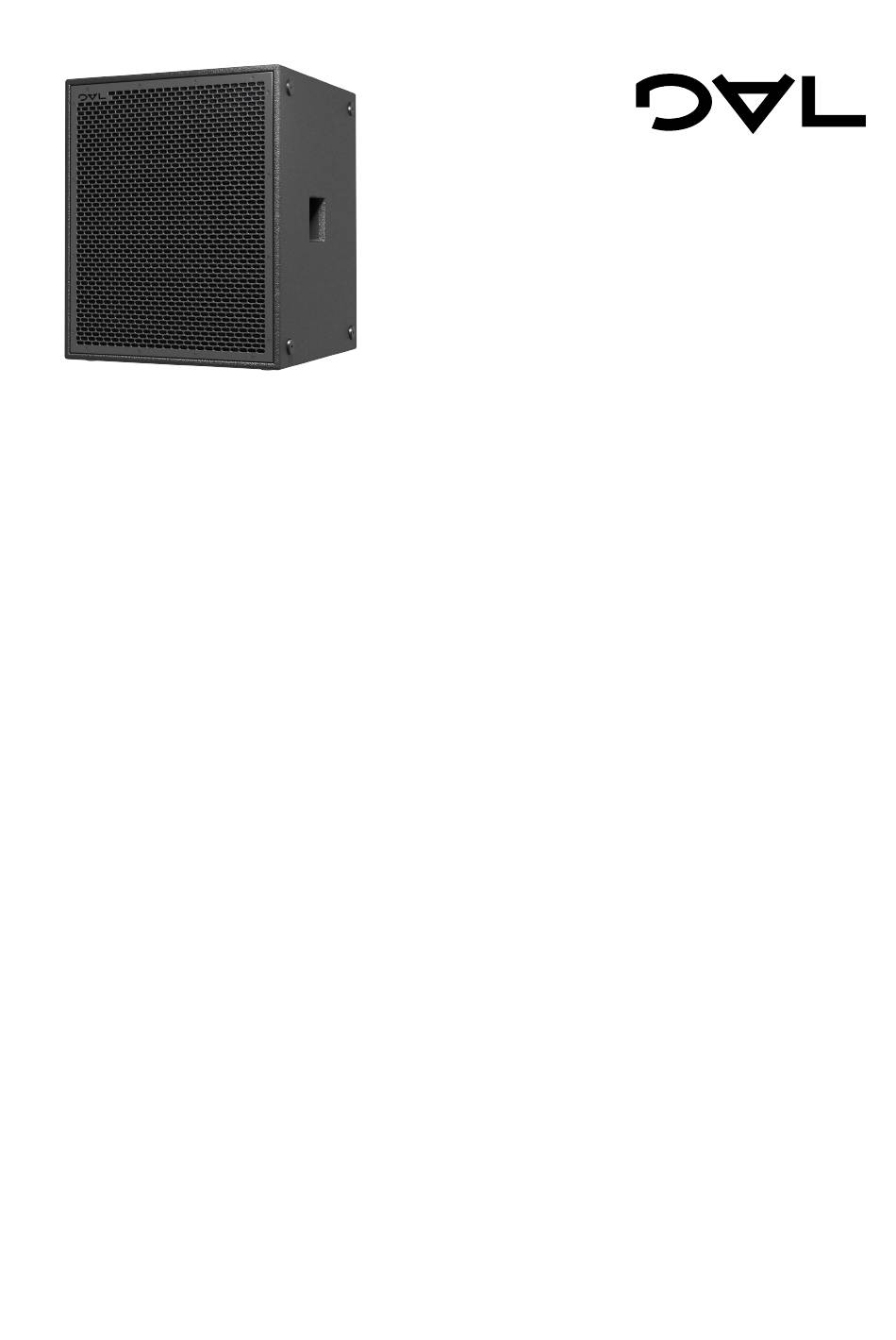

- Page 1 A C O U S T I C S BR118 Professional Sound Reinforcement Loudspeaker System Operation Instructions © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL BR118 v1.0...
-
Page 2: System Description
The DAL Control & Drive Systems provides different settings for the operation of BR118 combinations. With a gross volume of <264l the BR118 is one of the smallest high output 18” sub/low systems with a tuning down to 38Hz. - Page 3 This symbol in connection with the signal word "Warning" indicates commands to observe product-relevant operating conditions. © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL BR118 v1.0...
-
Page 4: General Information
Observe the operating modes described in these operating instructions. Other uses are not permitted. The BR118 can be operated without the DAL Control & Drive System DS-4L, but then it does not offer the performance data specified by us and will not have the same power handling capacity. -
Page 5: Safety Instructions
DAL will not be liable for any damage caused in this way and will not accept any warranty or liability for consequential damage. © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL BR118 v1.0... -
Page 6: Technical Overview
The illustration of the serial number plate is shown on the left. The S/N designation is followed by the serial number of the speaker system. Made In Germany BR118– Manufacturer Plate With Serial Number © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL BR118 v1.0... -
Page 7: Technical Specifications
SWR equipment variant. Both variants are manufactured at the factory only. © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL BR118 v1.0... - Page 8 Additionally secure the stability of the speaker system to prevent personal injury and property damage. © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL BR118 v1.0...
- Page 9 Fixing and mounting points should be inspected frequently. BR118 - internal wiring schematic Operation of DAL BR118 There is the need of active control for the BR118 plus a dedicated power amplifier delivering RMS 2500W@8Ohm. Down below are the parameters to be adjusted for an external system controller.
-
Page 10: Note On Disposal
Applied national standards and technical specifications: DIN 18800, DIN 1055, DGUV regulation 17, BGI 810-13 Hamburg, 01.06.2018 © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL BR118 v1.0...
