Satco Products Nuvo 60-987 Assembly Instruction

NOTE:
Please consult a qualified electrician if you are not certain of the installation.
CAUTION:
Before starting the installation, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box. Caulk to mounting surface at top and sides.

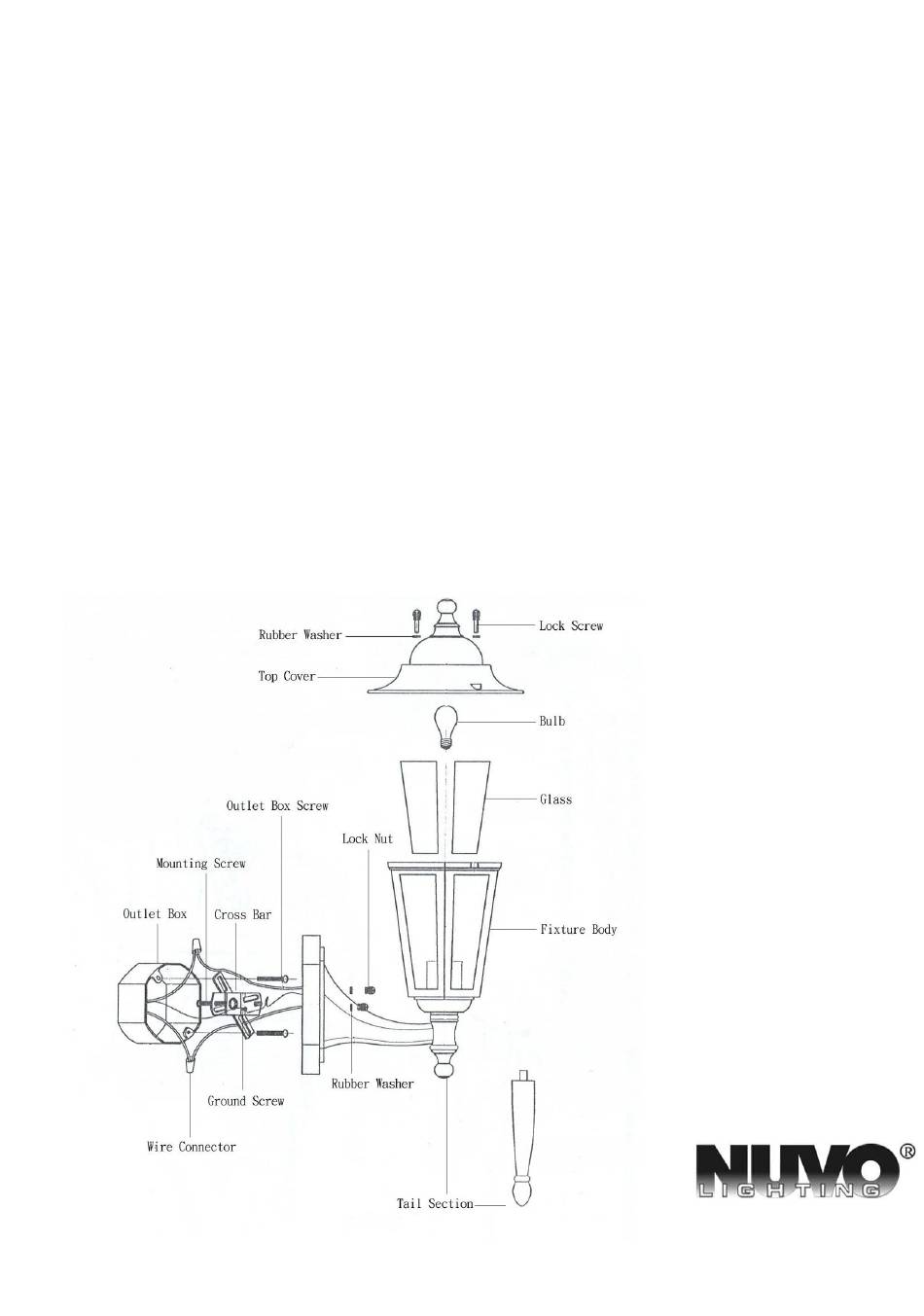

1. Place the glass into fixture body firmly.
2. Install bulb. (Not included).
3. Cover the cap on the fixture body and fasten the cap using screw and rubber washer.
4. Fasten cross bar to the outlet box using 2 outlet box screws.
5. Connect wires with white to white and black to black, cover the connections by using the wire connectors
provided. Take the ground wire from the house, wrap it around the ground screw on the cross bar so that
the end of the ground wire is still loose, tighten the ground screw, and connect the ground wire from the
fixture to the loose end of the ground wire from the house by twisting the ends together with pliers.
6. Carefully tuck all wiring back into outlet box. Place the wall plate onto the wall until mounting screws
protrude out from the wall plate, place the rubber washer to the mounting screw and secure the fixture
using lock nuts provided. Screw the tail section onto the bottom of nipple.
7. Turn on the power.
ASSEMBLY INSTRUCTION
SKU#60/985/986/987
A Satco Product
