Satco Products NUVO LIGHTING 60/2527 Assembly Instruction

NOTE:
Please consult a qualified electrician if you are not certain of the installation or servicing.
CAUTION
: Before starting the installation or servicing, disconnect power by turning off the circuit breaker
or by removing the fuse at the fuse box. Use silicon caulking to seal between wall plate and wall. Leave
bottom unsealed so moisture can drain out.

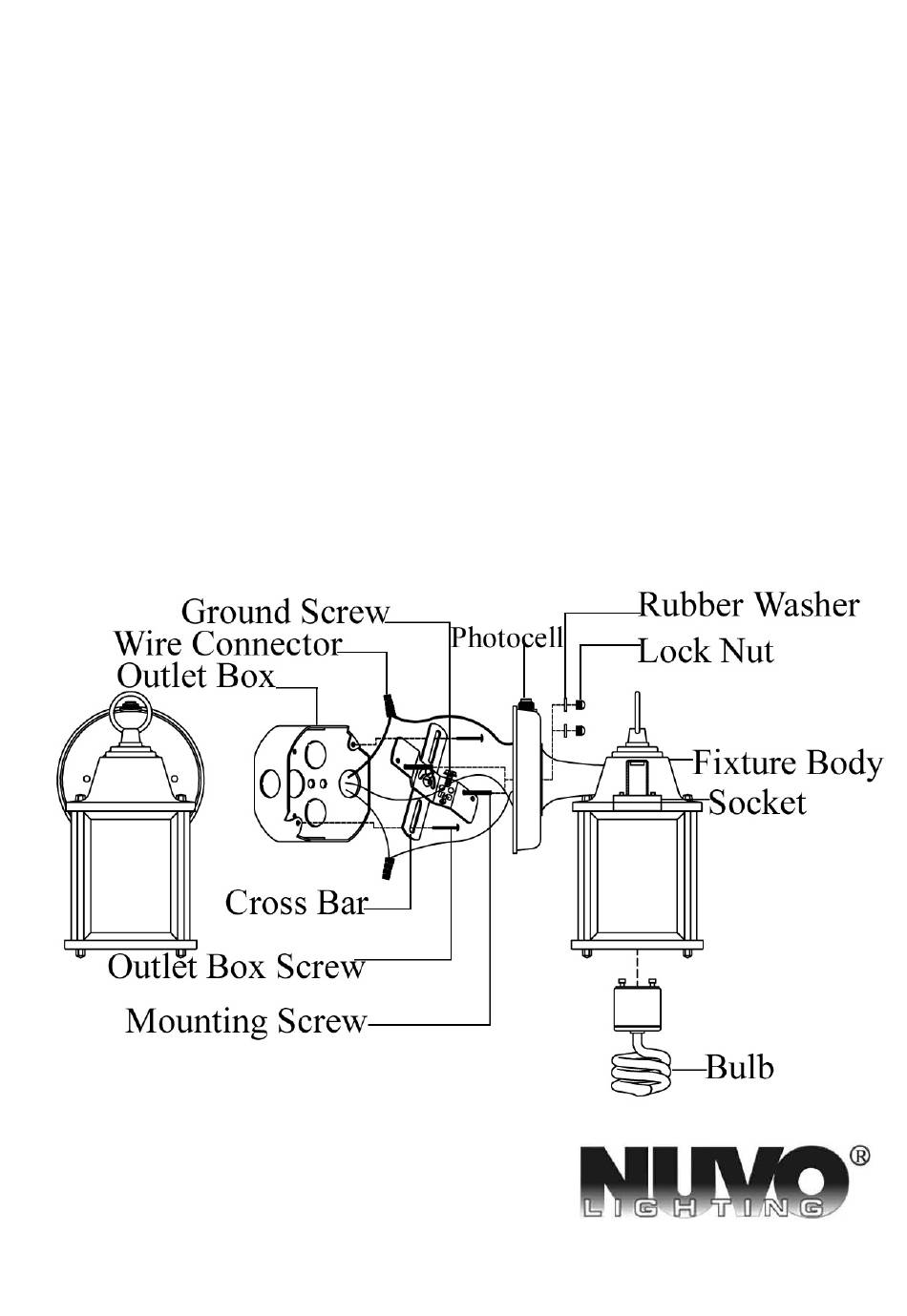

1. Fasten cross bar to the outlet box using 2 outlet box screws.
2. Take the ground wire from the house, wrap it around the ground screw on the cross bar so that the end of
the ground wire is still loose, tighten the ground screw, and connect the ground wire from the fixture to the
loose end of the ground wire from the house by twisting the ends together with pliers. Connect white wires
from fixture to white wire (neutral wire) from supply circuit. Connect black wires from fixture to black wire
(live wire) from supply circuit. Cover the connections by using the Wire Connectors provided.
3. Carefully tuck all wiring back into outlet box. Place the wall plate onto the wall until mounting screws
protrude out from the wall plate, place the rubber washer to the mounting screw and secure the fixture using
lock nuts provided.
4. Install bulb. (Included).
5. Turn on the power. The photocell will automatically light on from dusk to dawn and will automatically
light off from dawn to dusk.
ASSEMBLY INSTRUCTION
SKU#60/2527, 60/2528, 60/2529
A Satco Product
