Satco Products Nuvo 60/879 Assembly Instruction

NOTE:
Please consult a qualified electrician if you are not certain of the installation.
CAUTION:
Before starting the installation, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box.

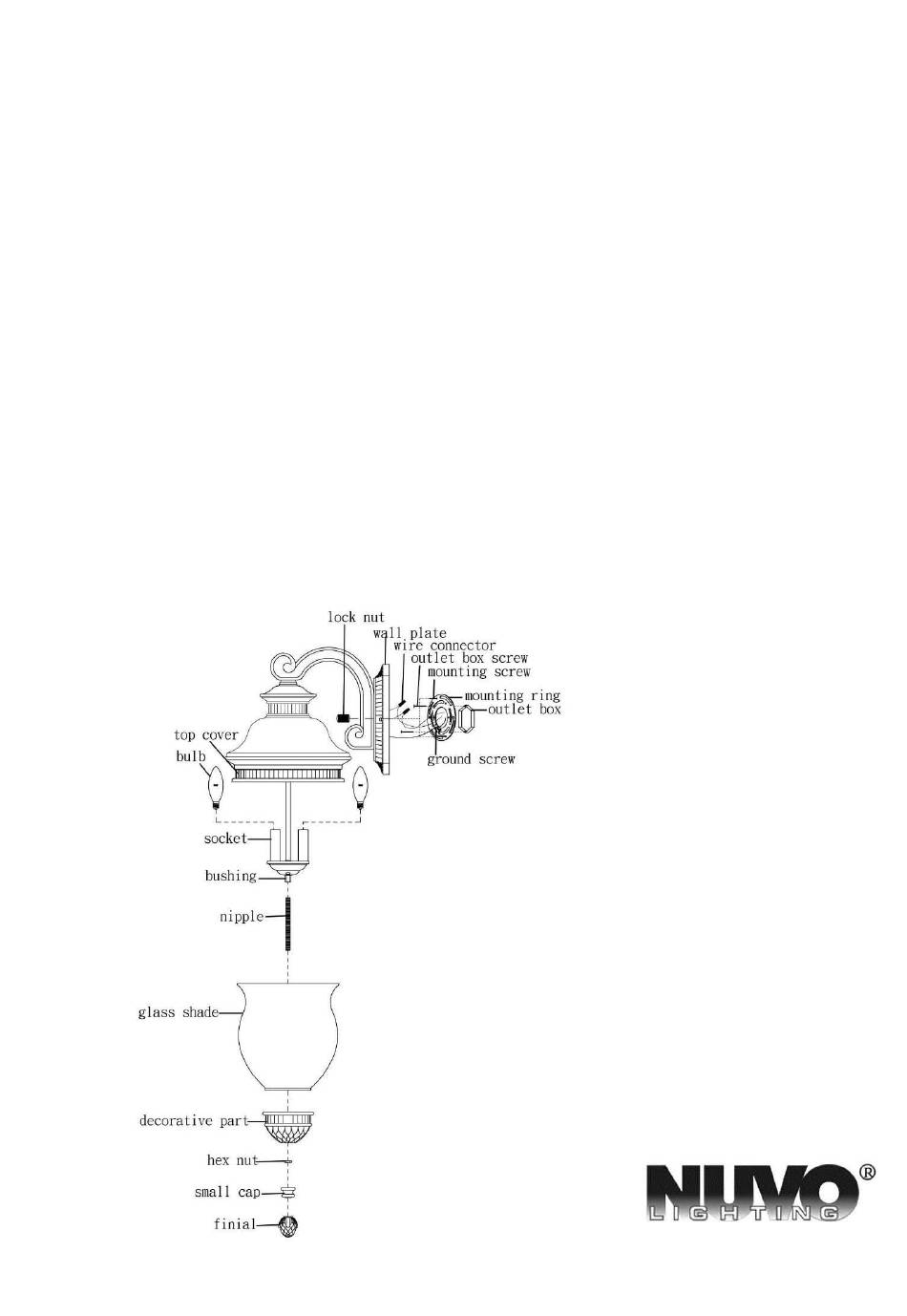

1. Fasten the Mounting Ring onto Outlet Box by using 2 Outlet Box Screws. (Make sure the thread of the
Mounting Screws is facing outside when the Mounting Ring is attached to the Outlet Box).
2. Connect the wires white to white and black to black. Cover the connections using Wire Connectors
provided. Tie the ground wires from Outlet Box and from fixture to the Ground Screw on the Mounting
Ring.
3. Place fixture body to the wall by aligning the protruding Mounting Screw all the way through the Wall
Plate and tighten the fixture using 2 Lock Nuts provided until it is held firmly to the wall.
4. Install the bulbs. (Not included).
5. Screw the Nipple into the Bushing.
6. Fasten the Glass Shade and Decorative Part to the Top Cover all the way through the Nipple and fasten
them using the Hex Nut, Small Cap and Finial provided.
7. Turn on power.
ASSEMBLY INSTRUCTION
SKU#60/879/880
A Satco Product
