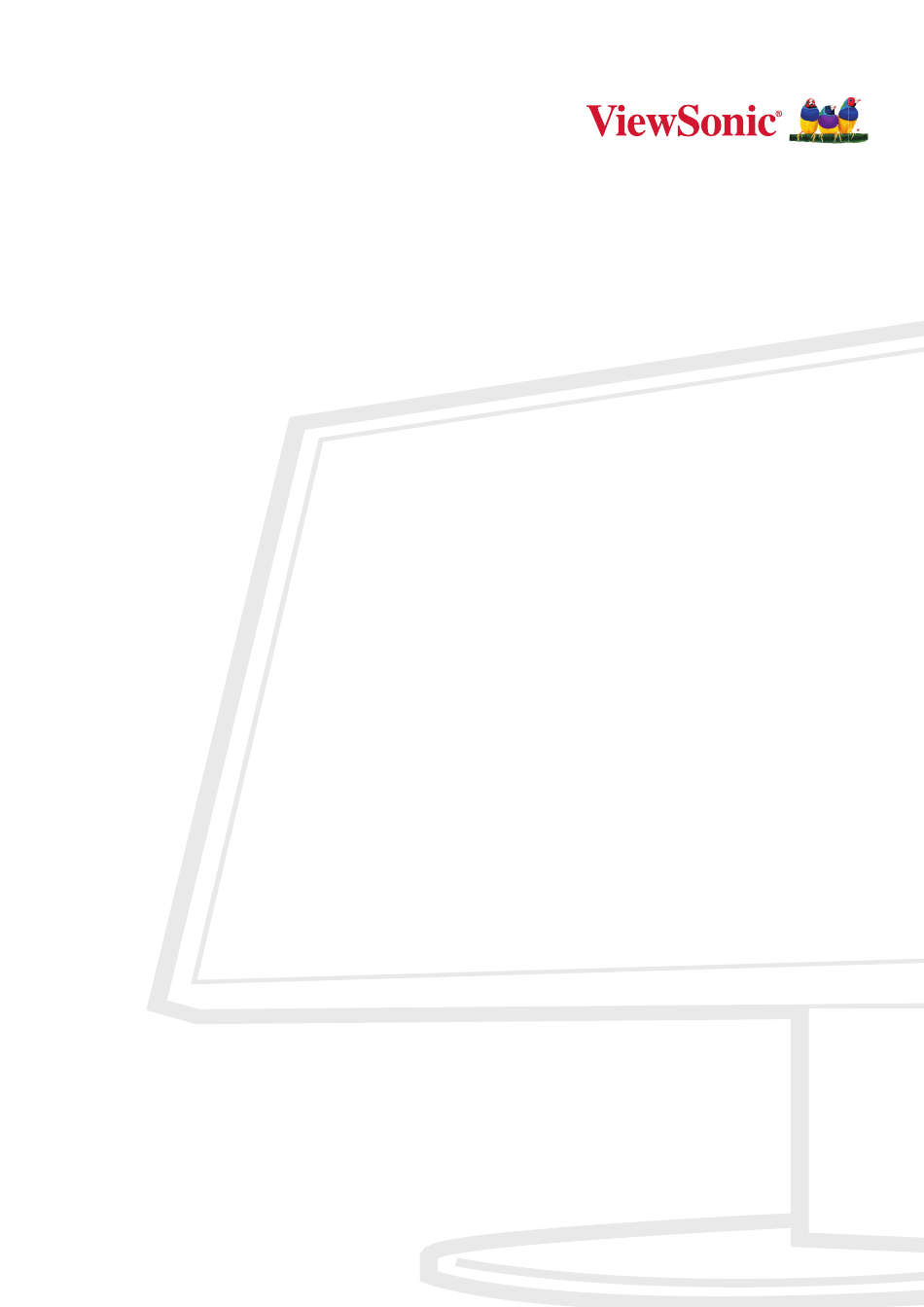

TD2223-2
Display
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS19630
P/N: TD2223-2
Advertisement
Table of Contents
Related Manuals for ViewSonic TD2223-2
Summary of Contents for ViewSonic TD2223-2
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Safety Precautions
Safety Precautions • Read these instructions completely before using the equipment. • Keep these instructions in a safe place. • Heed all warnings and follow all instructions. • Sit at least 18” / 45 cm from the monitor. • When installing the monitor, please leave 4” / 10 cm of open space around the monitor for ventilation safety purposes. - Page 4 • If smoke appears, an abnormal noise, or a strange odor is present, immediately switch the display off and contact your dealer or ViewSonic. It is dangerous to continue using the display. •...
- Page 5 • Stability Hazard: The display may fall, causing serious personal injury or death. To prevent injury, this display must be securely attached to the floor/wall in accordance with the installation instructions. • Fastening the monitor to a wall or fixed object using cordage or other restraining devices can help support the weight of the monitor in order to prevent the monitor from falling over.
-
Page 6: Table Of Contents
Contents Safety Precautions ............3 Introduction ..............8 Package Contents ....................8 Product Overview ....................9 Initial Setup ............... 10 Installing the Stand ....................10 Removing the Stand and Mounting the Display ...........11 Using the Security Slot ..................12 Making Connections ..........13 Connecting to Power ....................13 Connecting External Devices ................14 HDMI Connection .................... - Page 7 Appendix ..............31 Specifications ......................31 Glossary ........................34 Troubleshooting ....................39 Maintenance......................41 General Precautions ....................41 Cleaning the Screen ....................41 Cleaning the Case ....................41 Regulatory and Service Information ......42 Compliance Information ..................42 FCC Compliance Statement ................... 42 Industry Canada Statement ................... 42 CE Conformity for European Countries ..............
-
Page 8: Introduction
Introduction Package Contents • Touch display • Power cord • HDMI cable • USB 2.0 upstream cable (Type B to Type A) • Audio cable • Quick start guide NOTE: The power cord and video cables included in your package may vary depending on your country. -
Page 9: Product Overview
Product Overview Front View Display Screen Power LED Magnetic Point ▲ Power Button Rear View Security Slot AC IN HDMI Audio In Audio Out USB Downstream USB Upstream NOTE: For more information about the 1/2/ key and its functions, refer to ▲... -
Page 10: Initial Setup
Initial Setup This section provides detailed instructions for setting up your monitor. Installing the Stand 1. Place the monitor on a flat, stable surface with the screen facing down. 2. With one hand applying downward pressure on the monitor, carefully lift and extend the stand. -
Page 11: Removing The Stand And Mounting The Display
Removing the Stand and Mounting the Display Refer to the table below for the standard dimensions for mounting kits. NOTE: For use only with a UL certified mounting kit/bracket. To obtain a wall- mounting kit or height adjustment base, contact ViewSonic® or your local dealer. Maximum... -
Page 12: Using The Security Slot
Using the Security Slot To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object. Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over. -
Page 13: Making Connections
Making Connections This section guides you on how to connect the monitor with other equipment. Connecting to Power 1. Connect the power cord to the AC IN jack at the rear of the device. 2. Plug the power cord plug into a power outlet. -
Page 14: Connecting External Devices
Connecting External Devices HDMI Connection Connect one end of an HDMI cable to the HDMI port of the monitor. Then connect the other end of the cable to the HDMI port of your computer. NOTE: The monitor is equipped with one HDMI 1.4 port. -
Page 15: Dvi Connection
DVI Connection Connect one end of a DVI cable to the DVI port of the monitor. Then connect the other end of the cable to the DVI port of your computer. -
Page 16: Vga Connection
VGA Connection Connect one end of a VGA cable to the VGA port of the monitor. Then connect the other end of the cable to the VGA port of your computer. -
Page 17: Audio Connection
Audio Connection Plug an audio cable into the Audio In/Audio Out port of the monitor. Plug the other end into your computer (Audio In) or ear-/headphones (Audio Out). NOTE: The monitor is also equipped with dual speakers. -
Page 18: Usb Connection
USB Connection Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer. NOTE: The monitor supports two (2) types of USB ports. When making the connection(s), observe the following guidelines: •... -
Page 19: Touch Function Control
Touch Function Control Before using the touch function, ensure the USB Type B to Type A cable is connected to your computer and the Windows operating system is running. When using the touch function, please note: • The touch function may need about five (5) seconds to resume if the USB cable is removed and plugged in again, or the computer resumes from Sleep Mode. -
Page 20: Touch Accuracy
Touch Accuracy • Touch accuracy is ± 2 mm over 90% of the touch active area located in the middle area. • Touch size at 10% of the edge area is ≥ 8 mm (as illustrated below); the area at the edges without might not support any touch. -
Page 21: Using The Monitor
Using the Monitor Adjusting the Viewing Angle Tilt Angle Adjustment Tilt the monitor stand forwards or backwards to the desired viewing angle (20˚ to 40˚). -
Page 22: Turning The Device On/Off
Turning the Device On/Off 1. Plug the power cord into a power outlet. 2. Press the Power key to turn on the monitor. 3. To turn the monitor off, press the Power key again. NOTE: The monitor will still consume some power as long as the power cord is connected to the power outlet. -
Page 23: On-Screen Display (Osd) Menu
Select one of the preset color settings. Displays the timing mode coming from the computer’s Information graphics card, the monitor’s model number and serial number, and the ViewSonic® website URL. Manual Image Adjust Manually set image quality adjustments. Setup Menu Adjust On-Screen Display (OSD) settings. -
Page 24: Hot Keys
Hot Keys When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the control panel keys. Description Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu. - Page 25 Description Press the key to enter the Contrast menu. Press the key to enter the Color Adjust menu. Press the key to toggle between input sources.
-
Page 26: Configuring The Settings
Configuring the Settings General Operations 1. Press the 1 key to display the On-Screen Display (OSD) Menu. A U T O I M A G E A D J U S T A S T / B R I G H T N E S S L E C T J U S T J U S T... - Page 27 3. Press the ‚ or key to select the desired menu option. Then press the 2 key to enter the sub-menu. M A N U A L I M A G E A D J U S T E C O M O D E S T A N D A R D O P T I M I Z E C O N S E R V E...
-
Page 28: On-Screen Display (Osd) Menu Tree
On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option Auto Image Adjust Contrast (-/+, 0~100) Contrast/Brightness Brightness (-/+, 0~100) Input Select HDMI Volume (-/+, 0~100) Mute Audio Adjust HDMI Audio Input Audio In sRGB Bluish Cool Native Color Adjust Warm (-/+, 0~100) User Color... - Page 29 Main Menu Sub-menu Menu Option Standard Manual Image ECO Mode Optimize Adjust Conserve Blue Light Filter (-/+, 0~100) English Français Deutsch Español Italiano Suomi Русский Language Select Türkçe 日本語 Setup Menu 한국어 繁體中文 简体中文 Česká Svenska Tiếng Việt Resolution Notice H.
- Page 30 Main Menu Sub-menu Menu Option 0° OSD Pivot +90° -90° OSD Timeout (-/+, 5/15/30/60) OSD Background Auto Power Off 30 Minutes 45 Minutes Setup Menu Sleep 60 Minutes 120 Minutes Power Indicator Boot Up Screen Single Point Touch Touch Screen Touch Disable Memory Recall...
-
Page 31: Appendix
Appendix Specifications Item Category Specifications a-Si, TFT Active Matrix, 1920 x 1080 LCD, Type 0.249 mm x 0.241 mm pixel pitch Display Size 54.5 cm, 22” (21.5” viewable) Surface Treatment Glossy treatment (Haze 1%, 7H) RGB Analog (75 Ω) :24~82 kHz, f :50~75 Hz Input Signal Video Sync... - Page 32 Item Category Specifications • 1920 x 1080 @ 50, 60, 75Hz • 1680 x 1050 @ 60Hz • 1600 x 1200 @ 60Hz • 1600 x 900 @ 60Hz • 1440 x 900 @ 60, 75Hz • 1400 x 1050 @ 60Hz •...
- Page 33 Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display. ² Please use the power adapter from ViewSonic® or an authorized source only. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or...
-
Page 34: Glossary
This function, on some models, is disabled by default. Black Stabilization ViewSonic’s Black Stabilization provides heightened visibility and detail by brightening dark scenes. Blue Light Filter Adjusts the filter that blocks high-energy blue light for a more comfortable viewing experience. - Page 35 Color Adjust Provides several color adjustment modes to help adjust the color settings to fit the user’s needs. Color Format The monitor can detect the input signal color range automatically. You can manually change the color range options to fit the correct color range if the colors are not displayed correctly.
- Page 36 Displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL. See your graphics cards’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
- Page 37 Manual Image Adjust Displays the “Manual Image Adjust” menu. You can manually set a variety of image quality adjustments. Memory Recall Returns the adjustments back to factory settings if the display is operating in a factory preset timing mode listed in the “Specifications” of this manual. NOTE: ...
- Page 38 Sharpness Adjusts the picture quality of the monitor. ViewMode ViewSonic’s unique ViewMode feature offers “Game”, “Movie”, “Web”, “Text”, “MAC”, and “Mono” presets. These presets are specifically designed to deliver an optimized viewing experience for different screen applications. YUV Color Space YUV color space is used for color image and video processing;...
-
Page 39: Troubleshooting
Troubleshooting This section describes some common problems that you may experience when using the monitor. Problem or Issue Possible Solutions • Make sure you have turned on the monitor by pressing the Power button. • Make sure the power cord is properly and securely No power connected to the monitor and power outlet. - Page 40 Problem or Issue Possible Solutions The OSD Menu • Check whether the OSD Menu is locked. Turn off does not appear the monitor, unplug the power cord, plug it back in, on the screen/the and then turn on the monitor. OSD controls are •...
-
Page 41: Maintenance
• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 42: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 43: Declaration Of Rohs2 Compliance
The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law. -
Page 44: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 45: Copyright Information
ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein;... -
Page 46: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ www.viewsonic.com.cn www.viewsonic.com/hk/ 中国 (China) 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/... -
Page 47: Limited Warranty
“What the warranty excludes and does not cover” section). How long the warranty is effective: ViewSonic® displays are warranted for between 1 and 3 years, depending on your country of purchase, for all parts including the light source and for all labor from the date of the first consumer purchase. - Page 48 (e) the serial number of the product. • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
- Page 49 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of...
-
Page 50: Mexico Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &... - Page 51 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages...
- Page 52 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
