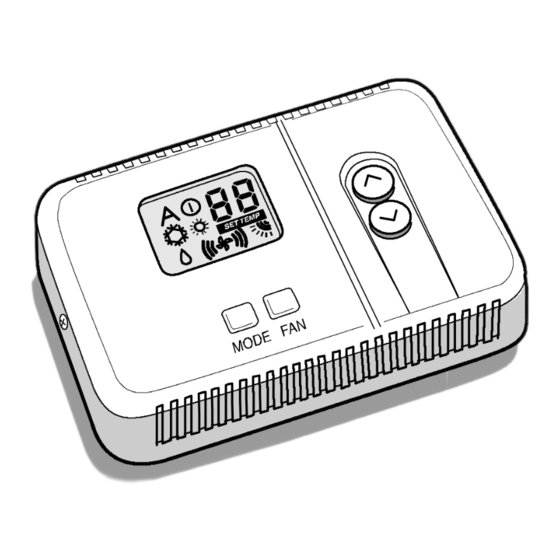

- Page 1 619FN- -URC Room Controller 619FNF 619FNQ 619ENF 619ENQ INSTALLATION MANUAL...
- Page 2 This control system only operates with indoor units of the following types: 619FNF, 619FNQ Cassette, 619ENF, 619ENQ High Wall For installation instructions of this unit, refer to the relevant manuals. CONTENTS PAGE General information ................Characteristics .
- Page 3 General information and characteristics IMPORTANT: Read the entire instruction manual before The Room Controller will connect to the receiver board connection on the electronic board inside the unit. starting the installation. For trouble- -free installation, which should be carried out by a qualified installer, follow the installation chart sequence.
- Page 4 General information and characteristics MOUNTING WARNING ELECTRICAL SHOCK HAZARD Failure to follow this warning could result in personal injury or death. Before installing the Room Controller, turn off all power to the Unit that will supply power to the Room Controller. Fig.
- Page 5 General information and characteristics Diagram 2: WARNING Connection diagram for the following units: 619ENF and 619ENQ Hiwall Family ELECTRICAL SHOCK HAZARD Failure to follow this warning could result in personal injury or death. Before connecting any wiring to the Room Controller, turn off all power to the unit that will supply power to the Room Controller.
- Page 6 Unit Configuration 1. Configuration Item 10 — Heat pump Vs Cooling mode OF- - Room Thermistor Override not active. H - - The Room Controller will allow and display the All units will be controlled to the room air thermistors following modes: Off, Fan, Auto, Cool, Dry, and Heat.
- Page 7 Unit Configuration Description Item Value 1 : Heat pump Unit Configuration 0 : AC Only (indoor unit with or without electric heaters) Defaults to Heat Pump CCN Address of the unit 1--- 199 in increments of 1 Defaults to 1 To display the hundreds, icon ON/OFF is .
- Page 8 Catalog No. II 619FN---URC ---01 EBryant Heating & Cooling Systems 7310 W. Morris St. Indianapolis, IN 46231 Printed in Italy Edition Date: 07/06 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Replaces: NEW...
