Synergy Hardware S700 Series Installation And Use Instructions And Warnings

1
45 O

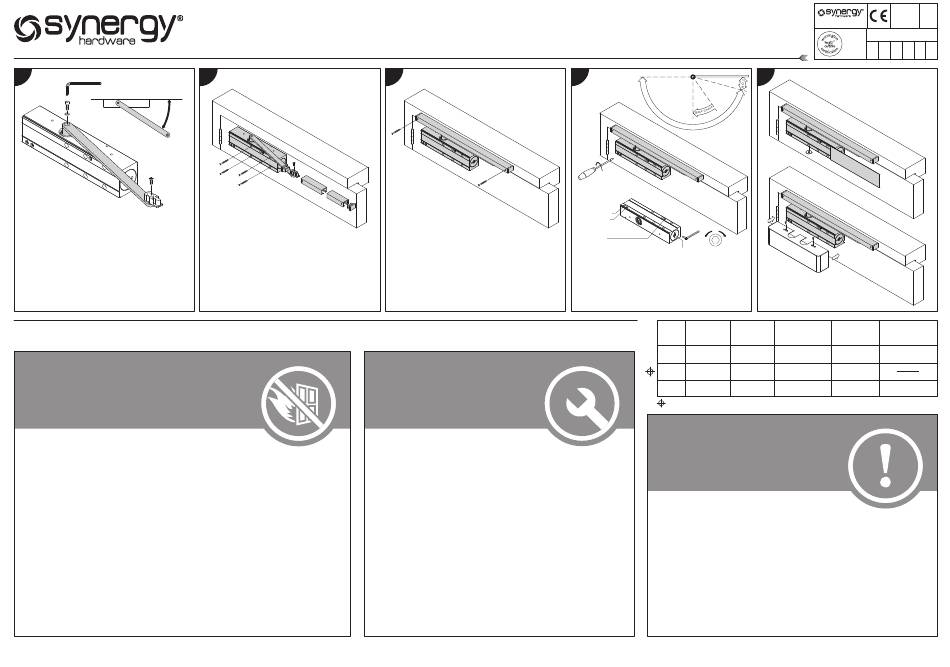

1.Prepare fixing holes in door and frame
(use template)
2.Assemble arm to body at 45 to back face.
O
Secure arm and sliding block with bolts provided.
Installation and Maintenance Instructions:
Warning
1.Please note the minimum power size requirement for fire / smoke
door assemblies is 3 as required by Approved Document B.
2.Do not install mechanical hold open devices on fire / smoke door
assemblies.
3.Take care not to exceed the maximum opening angle as detailed
above.
4.Care and attention must be taken when adjusting any of the units
control valves to avoid damage through over adjustment.
5.All Synergy Door Closer units are sealed for life and the internal
components assembled under high load, therefore, tampering with
the mechanism is to be strictly avoided.
www.synergyhardware.co.uk
Fixing Instructions for : S700 Series
Door Closer Power Adjustable EN 2-4
2
3.Fix body to door (4 screws).
Slip sliding block into track and insert end cap.
3
4.Push track and arm towards frame and secure in
position (2 screws).
After Installation
1.When the closer operates to close the door from its
maximum opening position, it should ensure the
lock latchbolt and any seals are overcome and the
leaf returned into its frame.
2.When the door is slightly open and the latch bolt
resting against the strike, release the door to
ensure the leaf fully closes into its frame.
4
NO.1
See instructions on
rear of trim plate
NO.2 Latching
NO.1 Closing
Back Check
- +
Closing Force SW5
5.When adjusting, please note there is MAXIMUM
of 2 TURNS for Latching, Closing and Back
Check valves. Over adjustment will affect the
perfomance of the closer. for the number of turns
required to adjust the closing force, please refer
to the table below.
Max. door Max. door
Force
width weight
EN2 850mm 40kg
EN3 950mm 60kg
EN4 1100mm 80kg
FACTORY PRE-SET
Maintenance
1.Once the unit has been correctly fitted it is
recommended that periodic checks (every six months)
are carried out to ensure all fixings are tight and the
door closes freely and positively into the frame, without
slamming.
2.A light oil lubricant (non-graphite) should be applied to
the moving joints and exposed pivot points.
19
2812-CPR
AD5331
www.synergyhardware.co.uk
BS EN1154:1997+ A1:2002
APPROVED
PRODUCT
4
4 8 1 1 3
CF5294
2
5
Max. opening Number of
Direction
angle turns
180° -2~-5 Anticlockwise
180° -2~+3
180° +3~+5 Clockwise
ISSUE 01:10/23
11211 ZINS-Y1560-3S
