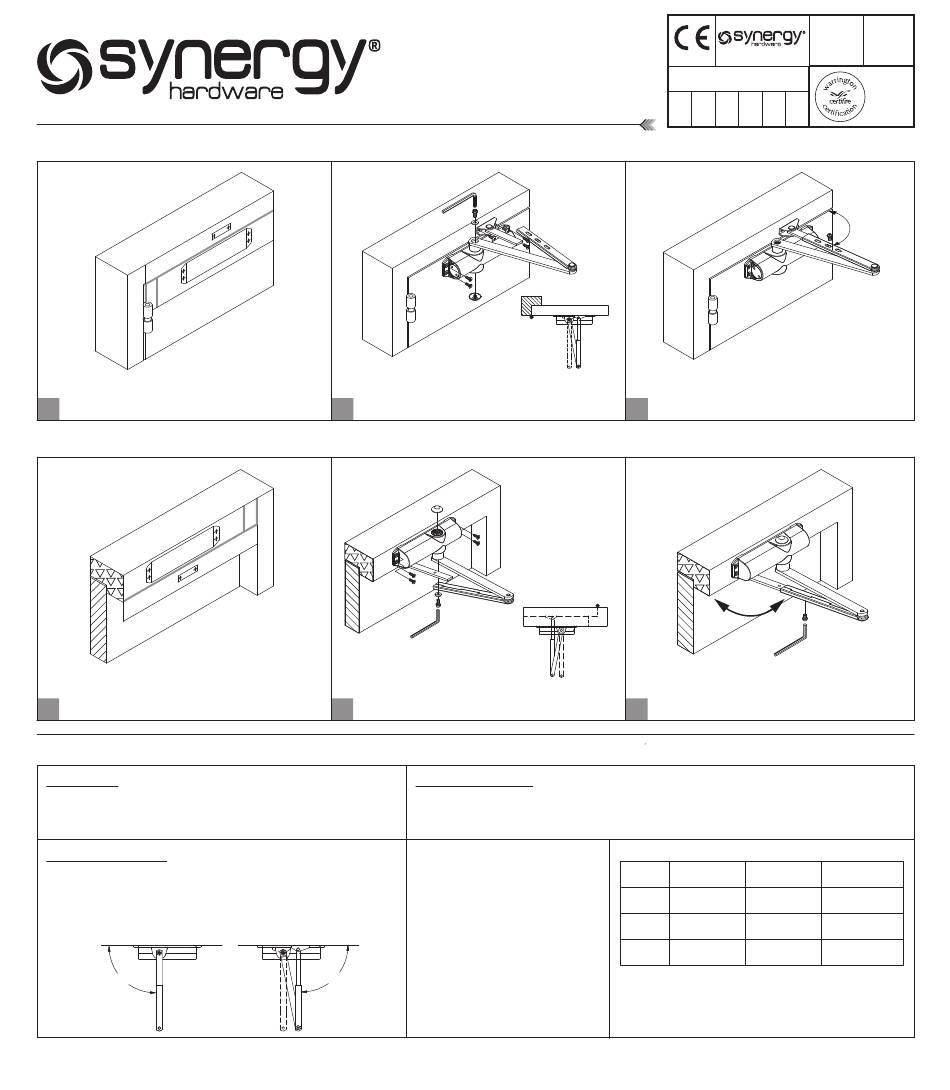

Synergy Hardware S150 Series Fixing Instructions

Regular Fixing

Using the templates provided, mark and drill pilot
holes into the door and frame.
1

Transom Fixing

Using the templates provided, mark and drill pilot
holes into the door and frame.
1

Installation Instructions : Please refer to actual size template for exact fitting dimensions

Information

This door closer is a size selectable model by means of a template.
Please see these separate documents for the exact fixing position
on the door.

Pre-Loading of Arm

For the unit to provide the optimum performance and overcome any
resistance upon closing it is recommended that the armset is
"pre-loaded" To pre-load, reposition the fixing angle of the arm onto
the mechanism so that the end of the closing cycle would be past the
stop position, as indicated below.
90°
Before
www.synergyhardware.co.uk
Fixing Instructions for :
S150 Series
Door Closer
Power Selectable EN 2-4
Using the templates provided, fix the mechanism
to the door as well as the armset and any
2
necessary brackets.
Using the templates provided, fix the mechanism
to the door as well as the armset and any
2
necessary brackets.

Adjustment Details

After Installation check the operation of the door closer. Adjustment to the operation of the unit is
made by altering the two valves at the side of the mechanism. PLEASE NOTE each valve is at
its fastest speed with the adjustment of 1 full turn.
ATTENTION: Speed adjustment
valves are in closed position when
they leave the factory. Make any
adjustments in the directions shown
in the diagram overleaf. Do not
adjust the valves for more than 3
turns. Over adjustment will damage
the mechanism and/or the
performance of the door closer and
90°
invalidate its guarantee.
After
www.synergyhardware.co.uk
1121
EN1154:1997+ A1:2002
4
3 8 1 1 3
2
Attach the armset to the mechanism ensuring the
pre-loading requirement has been completed.
3
90°
Attach the armset to the mechanism ensuring the
pre-loading requirement has been completed.
3
Fixing in Fig.1 / Fig.61
Max. Max.
Power
Door width Door weight
size
2 850mm 40Kg
3 950mm 60Kg
4 1100mm 80Kg
10611 ZINS-KA958-3S
14
CPR
AD5191
APPROVED
PRODUCT
CF5294
90°
Max.
Door opening
180°
180°
105°
ISSUE 02:11/17
