Synergy Hardware S500 Series Fixing Instructions

Regular Fixing
Using the templates provided, mark and
drill pilot holes into the door and frame.
1
Transom Fixing
Using the templates provided, mark and
drill pilot holes into the door and frame.
1
Installation Instructions: Please refer to actual size template for exact fitting dimensions
Pre-Loading of Arm
For the unit to provide the optimum performance and overcome
any resistance upon closing it is recommended that the armset
is "pre-loaded" To pre-load, reposition the fixing angle of the
arm onto the mechanism so that the end of the closing cycle
would be past the stop position, as indicated below.
90°
Before
www.synergyhardware.co.uk
Fixing Instructions for :
S500 Series

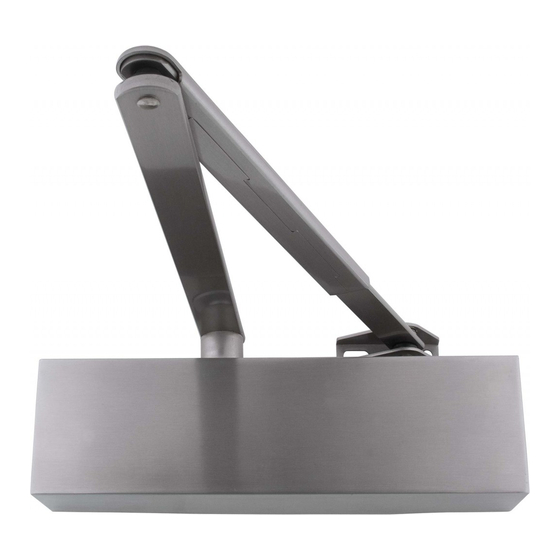

Door Closer
Power Adjustable EN 2-4
Using the templates provided, fix the mechanism to the door
as well as the armset and any necessary brackets.
2
Using the templates provided, fix the mechanism to the door
as well as the armset and any necessary brackets.
2
Adjustment Details
This unit is a power adjustable mechanism. Power / force adjustment is carried out by a single
adjustment valve in the end of the mechanism. The unit is pre-set in the factory at EN size 3.
Please see table below for adjustment details for each power size.
Instructions for adjusting this product are detailed overleaf.
Fixing in Fig.1 / Fig.61
Power
Door width
size
No.1
90°
2
3
4 1100mm
Factory preset
After
CW:Clockwise CCW:Counterclockwise
Max. Max. Max.
Number of turns
Door weight Door opening
180° 7CCW
750mm 20Kg
180° 4CCW
850mm 40Kg
180° 0
950mm 60Kg
165° 4CW
80Kg
CPR
AD5194
www.synergyhardware.co.uk
1121
BS EN1154:1997+ A1:2002
4
3 8 1 1 4
2
Attach the armset to the mechanism
ensuring the pre-loading requirement
3 has been completed.
90°
Attach the armset to the mechanism
ensuring the pre-loading requirement
3
has been completed.
ISSUE 02:11/17
10611 ZINS-X981-3S
15
APPROVED
PRODUCT
CF5294
90°
