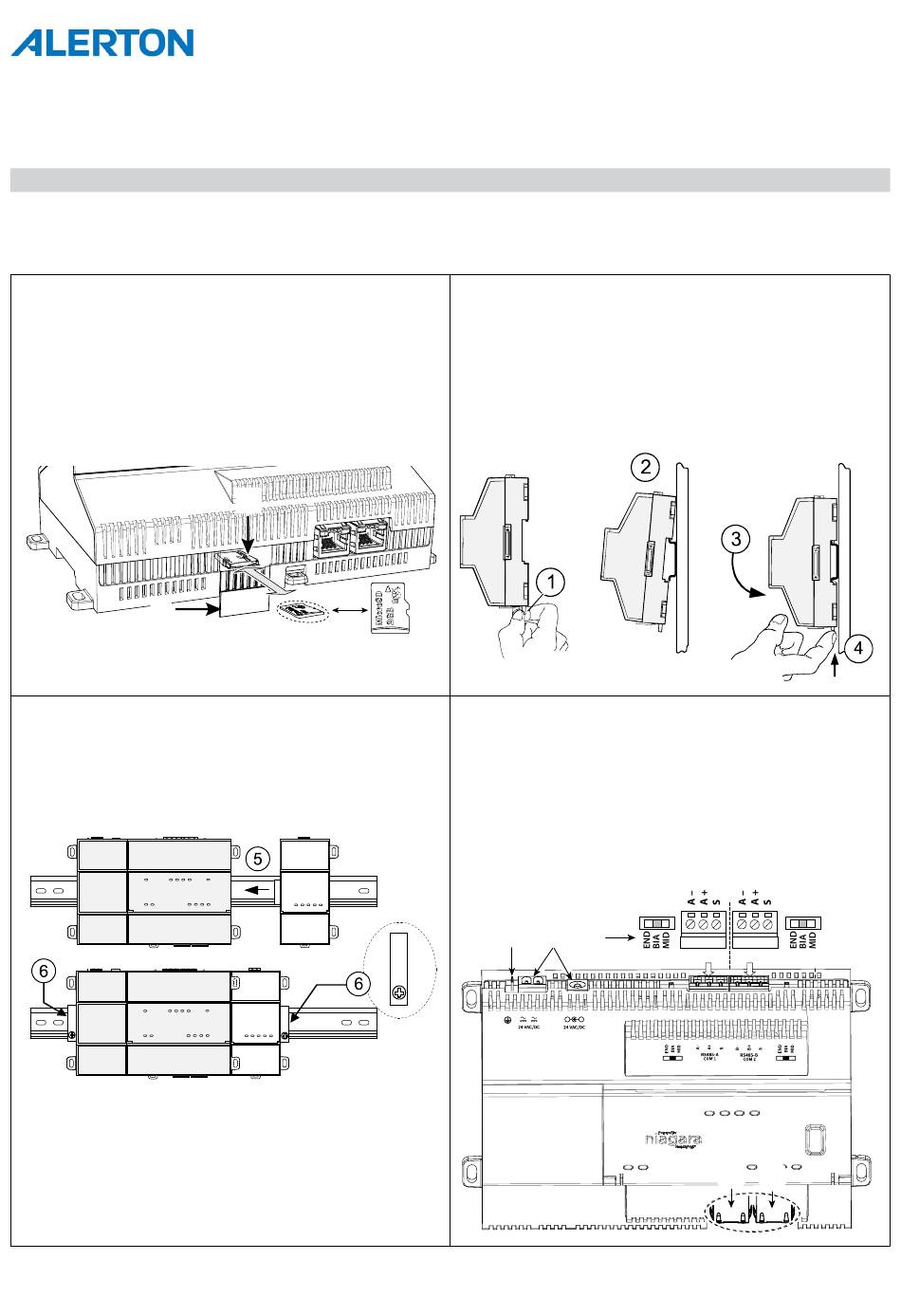

ALER-9000 Controller
1. INSERT CARD
1. Access Shutter
2. Card Carrier
3. MicroSD Card
3. INSTALL ON DIN (2)
5. Install module
6. Install end clips
Copyright © 2023 Honeywell Inc. All Rights Reserved
2. INSTALL ON DIN (1)
1. Pull down clip
2. Tilt and hook on rail
3. Push down and in
4. Push clip up
4. POWER AND FIELD COMMUNICATIONS PORTS
1. Ground
2. Power
3. RS485 A/B with Bias switches
4. Ethernet (Sec)
5. Ethernet (Pri)
QUICK START GUIDE
RS485-A RS485-B
(COM1)
(COM2)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ALERTON ALER-9000
Summary of Contents for ALERTON ALER-9000
- Page 1 ALER-9000 Controller QUICK START GUIDE 1. INSERT CARD 2. INSTALL ON DIN (1) 1. Access Shutter 1. Pull down clip 2. Card Carrier 2. Tilt and hook on rail 3. MicroSD Card 3. Push down and in 4. Push clip up ...
- Page 2 ALER-9000 CONTROLLER - QUICK START GUIDE 5. RS485 EXAMPLE 1. Port A (COM1) 2. Port B (COM2) 3. See note Port A (COM1) IO-R-16 IO-R-16 Port B (COM2) IO-R-16 IO-R-16 IO-R-16 See note 6. GROUND AND POWER 7.
- Page 3 ALER-9000 CONTROLLER - QUICK START GUIDE 8. PORTS AND SWITCHES 1. SHUT DOWN button. 2. SHUT DOWN “Job in progress” LED (Green) 3. DEBUG USB-C SHUT DOWN COM 1 COM 2 DEBUG STAT BEAT A. OPTION (1) B.
- Page 4 ALER-9000 CONTROLLER - QUICK START GUIDE PREPARATION NOTE: A maximum of four (4) total option modules are supported. Separate limits may exist in the If using a microSD card, insert the card controller’s license, which can further limit options. before mounting a new controller.
- Page 5 The default subnet mask is 255.255.255.0. By 4. Ethernet port (Sec), 10/100/1000-Mbit, RJ-45 default, the SEC (LAN2) port is disabled. Refer to the ALER-9000 Install and Startup Guide for 5. Ethernet port (Pri), 10/100/1000-Mbit, RJ-45 details on the software configuration of the Ethernet ports.
- Page 6 1. RS485 “A” (COM1): Transmit (TX, Yellow) and Receive (RX,Green). 1. ALER-9000 controller with no option modules added. Allow at least 1.5” (38mm) clearance around all sides. 2. RS485 “B” (COM2): Transmit (TX, Yellow) and Receive (RX,Green).
- Page 7 ALER-9000 CONTROLLER - QUICK START GUIDE By using this Honeywell literature, you agree that Honeywell will have no liability for any damages arising out of your use or modification to, the literature. You will defend and indemnify Honeywell, its affiliates and subsidiaries, from and against any liability, cost, or damages, including attorneys’ fees, arising out of, or resulting from, any modification to the literature by you.
