brent V800 Instruction Manual

Corner-auger grain cart
Hide thumbs
Table of Contents

Advertisement

Quick Links

Grain Handling

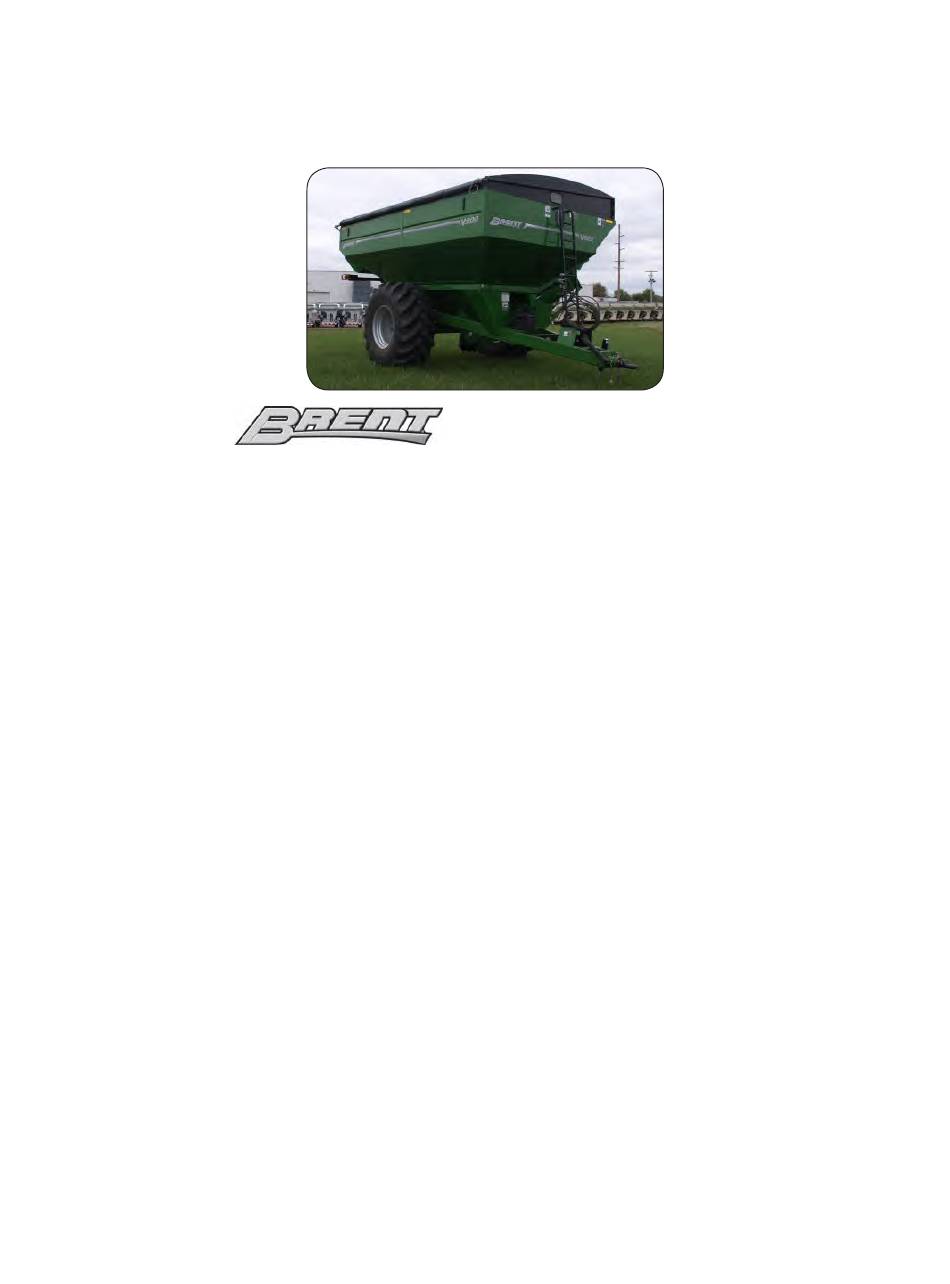

CORNER-AUGER GRAIN CART
MODELS V800 & V1000
Serial Number B44730100 & Higher
Part Number 297411

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for brent V800

Summary of Contents for brent V800

  • Page 1 Grain Handling CORNER-AUGER GRAIN CART MODELS V800 & V1000 Serial Number B44730100 & Higher Part Number 297411...
  • Page 2 — Introduction Brent V800 & V1000 Foreword This symbol identifies important safety messages. When you see it, read the message that follows and be alert to the possibility of personal injury. Remember, safety instructions stated in this manual are for your protection. Read them care- fully and follow them closely when working around or using this machine.
  • Page 3 — Introduction Brent V800 & V1000 Product Information When ordering parts or when requesting further information or assistance, always give the following information: • Machine name • Model • Serial Number All products manufactured by Unverferth Mfg. Co., Inc. are warranted to be free from ma- terial and workmanship defects for one full year from time of consumer delivery.

  • Page 4: Table Of Contents

    — Introduction Brent V800 & V1000 Table of Contents Section I Safety General Hazard Information ......................1-2 Decals ............................. 1-3 Following Safety Instructions ......................1-5 Before Servicing or Operating ......................1-6 During Operation ..........................1-6 Before Transporting ......................... 1-7 During Transport..........................1-7 Driveline Safety ..........................
  • Page 5 — Introduction Brent V800 & V1000 Table of Contents Section II Set Up Set Up Checklist ..........................2-2 Wheel/Tire Set Up........................... 2-3 Optional Hydraulic Brake System..................... 2-3 Tire Pressure ..........................2-3 Wheel Nuts ..........................2-3 Dual Wheel Installation......................2-3 Wheel Axle Spacing........................2-5 Adjustable Axle (Optional)......................
  • Page 6 — Introduction Brent V800 & V1000 Table of Contents Section III Operation Operating Checklist ......................... 3-2 Preparing Tractor..........................3-3 Preparing Cart - Hardware ......................3-4 Preparing Cart - Pivot Pins......................3-4 Preparing Cart - Hitch........................3-4 Preparing Cart - Auger........................3-4 Preparing Cart - Auger Driveline Assembly ...................
  • Page 7 — Introduction Brent V800 & V1000 Table of Contents Section IV Maintenance Lubrication............................4-2 PTO Driveshaft Lubrication ......................4-4 Hydraulic System ..........................4-5 Purge Hydraulic System ......................4-5 Relieving Hydraulic Pressure ....................4-6 Bleeding Procedure for Braking System (Optional) ................ 4-7 Brake Pressure Manual Release ....................
  • Page 8 Rigid Axle V800 (Single Wheel)....................5-18 Rigid Axle V1000 (Single Wheel)....................5-19 Adjustable Axle V800........................5-20 Adjustable Axle V1000........................5-22 Track Axle V800 and V1000 ......................5-24 Hub & Spindle — Straddle Duals ....................5-26 Hub & Spindle — Single Wheel....................5-27 Single Wheels & Tires........................5-28 Dual Wheels & Tires ........................5-29 Brake Components —...
  • Page 9 — Introduction Brent V800 & V1000 Notes...
  • Page 10 — Safety Brent V800 & V1000 Section I Safety General Hazard Information ......................1-2 Decals ............................. 1-3 Following Safety Instructions ......................1-5 Before Servicing or Operating ......................1-6 During Operation ..........................1-6 Before Transporting ......................... 1-7 During Transport..........................1-7 Driveline Safety ..........................1-8 Pressurized Oil ..........................

  • Page 11: Safety

    — Safety Brent V800 & V1000 General Hazard Information No accident-prevention program can be successful without the wholehearted cooperation of the person who is directly responsible for the operation of the equipment. A large number of accidents can be prevented only by the operator anticipating the result before the accident is caused and doing something about it.

  • Page 12: Decals

    — Safety Brent V800 & V1000 Decals 9003475 9003477 9003476 9003474 95008 9003478 9008715 9008721 9008151 9003475 95839 95046 94094 9003574 97961 95445 97575 9003127 REFLECTOR AMBER...
  • Page 13 — Safety Brent V800 & V1000 Safety Decals (continued) TA510514 9008714 9008720 94754 95046 9003125 FLUORESCENT STRIP TA1-906109-0 9003126 REFLECTOR RED 9003127 REFLECTOR AMBER...

  • Page 14: Following Safety Instructions

    — Safety Brent V800 & V1000 Following Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufac- turer.

  • Page 15: Before Servicing Or Operating

    — Safety Brent V800 & V1000 Before Servicing or Operating • Avoid working under an implement; however, if it becomes absolutely unavoidable, make sure the implement is safely blocked. • Ensure that all applicable safety decals are installed and legible.

  • Page 16: Before Transporting

    — Safety Brent V800 & V1000 Before Transporting • Secure transport chains to towing vehicle before transporting. DO NOT transport without chains. • Check for proper function of all available transport lights. Make sure that all reflectors are clean and in place on machine. Make sure the SMV emblem and SIS decals are visible to approaching traffic.

  • Page 17: Driveline Safety

    — Safety Brent V800 & V1000 Driveline Safety • Do not allow children near equipment that is running or engaged. • Do not exceed 1000 rpm PTO speed. • Disengage the PTO, stop the tractor engine, and remove key from ignition before making inspec- tions, or performing maintenance and repairs.

  • Page 18: Pressurized Oil

    — Safety Brent V800 & V1000 Pressurized Oil • Relieve the hydraulic system of all pressure before adjusting or servicing. See hydraulic power unit manual for procedure to relieve pressure. • High-pressure fluids can penetrate the skin and cause serious injury or death. Leaks of high- pressure fluids may not be visible.

  • Page 19: Preparing For Emergencies

    — Safety Brent V800 & V1000 Preparing for Emergencies • Keep a first aid kit and properly rated fire extinguisher nearby. • Keep emergency numbers for fire, rescue, and poison control personnel near the phone. Wearing Protective Equipment • Wear clothing and personal protective equipment appropriate for the job.

  • Page 20: Set Up

    — Set Up Brent V800 & V1000 Section II Set Up Set Up Checklist ..........................2-2 Wheel/Tire Set Up........................... 2-3 Optional Hydraulic Brake System..................... 2-3 Tire Pressure ..........................2-3 Wheel Nuts ..........................2-3 Dual Wheel Installation......................2-3 Wheel Axle Spacing........................2-5 Adjustable Axle (Optional)......................

  • Page 21: Set Up Checklist

    — Set Up Brent V800 & V1000 Set Up Checklist After the cart has been completely assembled, use the following checklist and inspect the cart. Check off each item as it is found satisfactory or after proper adjustment is made.

  • Page 22: Wheel/Tire Set Up

    — Set Up Brent V800 & V1000 Wheel & Tire Set Up Optional Hydraulic Brake System Any cart with optional hydraulic brakes must have the brake system bled before operation. See “Bleeding Procedure For Braking System (Option)” in the MAINTENANCE section.
  • Page 23 — Set Up Brent V800 & V1000 Wheel & Tire Set Up (continued) Dual Wheel Installation (continued) 3. Align and install the dual wheels and rein- forcing ring over the guide pins (FIG. 2-2). FIG. 2-2 Reinforcing Ring 4. Secure the wheel and reinforcing ring with FIG.

  • Page 24: Wheel Axle Spacing

    — Set Up Brent V800 & V1000 Wheel & Tire Set Up (continued) Wheel Axle Spacing Slide Out Distance Distance Hub Flange Center of tire to Center Tire Size (From end of the main axle tube to inside of to Hub Flange of Tire w/ Rim Offset the extension weldment end cap plate.)
  • Page 25 — Set Up Brent V800 & V1000 Wheel & Tire Set Up (continued) Adjustable Axle (Optional) 4. Slide extensions to desired tire gauge spacing. Axle extensions should be extended equally. Refer to chart on page 2-5 and Figure 2-6. 900/65 X 32 R-3 SHOWN FIG.

  • Page 26: Driveline Install

    — Set Up Brent V800 & V1000 Driveline Install • ENTANGLEMENT WITH THE DRIVELINE WILL CAUSE SERIOUS INJURY OR DEATH. KEEP ALL GUARDS AND SHIELDS IN GOOD CONDITION AND PROPERLY INSTALLED AT ALL TIMES. AVOID PERSONAL ATTIRE SUCH AS LOOSE FITTING CLOTHING, SHOE STRINGS, DRAWSTRINGS, PANTS CUFFS, LONG HAIR, ETC.
  • Page 27 — Set Up Brent V800 & V1000 Driveline Install (continued) 1. Clean and grease the grain cart driveline FIG. 2-8 splined shaft. 2. Remove telescopic PTO driveshaft from the rear of the cart. (FIG. 2-8) PTO Driveshaft Located On The Rear 3.
  • Page 28 — Set Up Brent V800 & V1000 Driveline Install (continued) • CHECK TO ENSURE ALL THE LOCKS ARE SECURELY ENGAGED BEFORE STARTING WORK WITH THE PTO DRIVESHAFT. 4. Attach the overrunning clutch/torque limiting end of the telescopic PTO driveshaft to the grain cart driveline splined shaft.

  • Page 29: Auger Set Up

    — Set Up Brent V800 & V1000 Auger Set Up Due to shipping requirements and various dealer-installed options, some initial cart set up will be required after it arrives from the factory. Use the following procedures as needed for initial cart set up.

  • Page 30: Jack Set Up

    — Set Up Brent V800 & V1000 Jack Set Up • UNHITCHING A LOADED CART CAN CAUSE SERIOUS INJURY OR DEATH DUE TO THE TONGUE RISING OR FALLING. ALWAYS HAVE A LOADED CART ATTACHED TO A TRACTOR. THE JACK IS INTENDED TO SUPPORT AN EMPTY CART ONLY.

  • Page 31: Warning Lamp Set Up

    — Set Up Brent V800 & V1000 Warning Lamp Set Up 1. Pivot warning lamp to widest setting. 2. Adjust warning lamp brackets so that the REFLECTORS are not more than 16” from the outer edge of the tire. NOTE: The edge of the reflector (not lamp) must be within 16” of the outer edge of the tire. (FIG. 2-17) 3.

  • Page 32: Basic Cart Set Up - Sideboards

    — Set Up Brent V800 & V1000 Basic Set Up Sideboards 1. Park the empty grain cart on a firm, level surface. Block the machine to keep it from moving. Set the tractor’s parking brake, shut-off the engine, remove the ignition key and disconnect the PTO shaft.
  • Page 33 Brent V800 & V1000 Basic Set Up (continued) NOTE: Right-hand sideboard bracket weldment (Model V800: 296366B; Model V1000: 296282B) arrives from the factory attached between the right-hand front and rear sideboards. (Fig. 2-21) 5. Loosely secure sideboard cover plate (295691B) with 3/8”-16UNC x 1” carriage bolts (9388-051) and 3/8”-16UNC flange nuts (91263) to the inside bottom right-hand front and rear sideboards.
  • Page 34 — Set Up Brent V800 & V1000 Basic Set Up (continued) 9. Loosely secure sideboard cover plate FIG. 2-24 Model V800 (295691B) with 3/8”-16UNC x 1” carriage bolts (9388-051) and 3/8”-16UNC flange nuts Left-Hand Sideboard (91263) to the inside bottom left-hand front Bracket Weldment and rear sideboards.
  • Page 35 Brent V800 & V1000 Basic Set Up (continued) 12. Lift the rear sideboard (Model V800: 296357B; Model V1000: 296273B) into position and loosely secure with 3/8” flange screws and flange nuts along the bottom. (Fig. 2-26) 13. Connect rear sideboard to the right-hand and left-hand sideboards using the right-hand rear cor- ner sideboard plate (Model V800: 296364B;...
  • Page 36 — Set Up Brent V800 & V1000 Basic Set Up (continued) 14. Lift front sideboard (Model V800: 296356B; Model V1000: 296272B) into position and loosely secure with 3/8” flange screws and flange nuts along the bottom. (Fig. 2-27) FIG. 2-27...

  • Page 37: Weather Guard Tarp Installation

    — Set Up Brent V800 & V1000 Weather Guard Tarp Installation • TO PREVENT PERSONAL INJURY OR DEATH, ALWAYS ENSURE THAT THERE ARE PEOPLE WHO REMAIN OUTSIDE THE CART TO ASSIST THE PERSON WORKING IN- SIDE, AND THAT ALL SAFE WORKPLACE PRACTICES ARE FOLLOWED. THERE ARE RESTRICTED MOBILITY AND LIMITED EXIT PATHS WHEN WORKING INSIDE THE CART.
  • Page 38 — Set Up Brent V800 & V1000 Weather Guard Tarp Installation (continued) 2. Slide end cap extension panels (286843B - 3/8”-16UNC x 1” right-hand front & left-hand rear; 286842B - Truss Head Screw left-hand front & right-hand rear) under the (9005312) end caps previously installed.
  • Page 39 — Set Up Brent V800 & V1000 Weather Guard Tarp Installation (continued) 5. Attach sideboard cover plates (296249B) to the end cap extension panels with 5/16”- FIG. 2-30 18UNC x 3/4” large flange screws (91256), 5/16”-18UNC flange nuts (91257). (FIG. 2-30)
  • Page 40 — Set Up Brent V800 & V1000 Weather Guard Tarp Installation (continued) NOTE: For V1000 carts, skip to step 9 on next page. NOTE: Ensure RH and LH sideboard doublers are inside the upper sideboard lip. See FIG. 2-32. 7. Attach the bow brackets (283425B) by sliding the sideboard doubler (294635B right-hand side &...
  • Page 41 — Set Up Brent V800 & V1000 Weather Guard Tarp Installation (continued) NOTE: Ensure RH and LH sideboard doublers are inside the upper sideboard lip. See FIG. 2-34. 9. Attach the bow brackets (283425B) by sliding the sideboard doubler (289986B - Qty. 5 right-hand &...
  • Page 42 (FIGS. 2-36 and 2-37) 3/8” Flat Washer (9004548) (9405-074) For V800: Insert threaded boss tube (294685) un- der the sideboard lip. Hold in place with eyebolt (9004548), 3/8”-16UNC x 1” truss head screw (9005312) and 3/8” flat washer (9405-074) as shown in FIG.
  • Page 43 Sideboard Doubler 13. Attach left-hand bow brackets (283427B) (289986B) by sliding the sideboard doubler (Model V800: 289986B - Qty. 5 left-hand side; 5/16”-18UNC Model V1000: 289986B - Qty. 5 right-hand Flange Nut & left-hand sides) under the upper lip of 5/16”-18UNC x 3/4”...
  • Page 44 — Set Up Brent V800 & V1000 Weather Guard Tarp Installation (continued) 15. Insert capscrew (902703-046) into the tarp bow (283424B). (FIG. 2-41) Capscrew (902703-046) 16. Tighten all hardware on sideboards, end caps, sideboard brace tubes, and tarp bows. Tarp Bow (283424B) FIG.

  • Page 45: Cables, Tarp, Tubes

    — Set Up Brent V800 & V1000 Weather Guard Tarp Installation (continued) Cables, Tarp, Tubes 18. Attach the cable assemblies (Model V800 Run Cable (Model V800 - 9007675; - 9007675; Model V1000 - 9007896) to the Model V1000 - 9007896) Through...
  • Page 46 22. Insert the 2” roll tube into the large pocket, with the splined shaft to the rear. Measure 10 1/2” for Model V800; 11 1/2” for Model V1000 from the end of the spline to the start of the tarp. Install the first U-clamp (9004949) and self-drilling screws (9005197) on the first reinforcement strap, to secure the tarp to the tube.
  • Page 47 (9405-074), plastic tube (221668), 9405-074 end plug (9004947) and hose (TA806225). 9001396 Place these items as an assembly into front end of roll tube weldment (Model V800 - Roll Tube 221809; Model V1000 - 291079) and press Weldment 221668 the end plug into the end of the tube.
  • Page 48 FIG. 2-52 Use 1/2”-13UNC x 1” capscrews (9390-099) and 1/2”-13UNC flange nuts (9002058) to attach the crank handle (Model V800 - 265706B; Model V1000 - 287394B). Attach handle retainer (221770B) to plastic handle (9004969) using capscrew (9390-055) and locknut (9928).

  • Page 49: Smv Emblem & Sis Decals

    — Set Up Brent V800 & V1000 SMV Emblem & SIS Decals The reflective surface of the SMV must face rearward. This may require removal of film pro- FIG. 2-54 tecting the reflective surface or removing and reinstallation of the SMV.

  • Page 50: Operational Check

    — Set Up Brent V800 & V1000 Operational Check • MOVING OR ROTATING COMPONENTS CAN CAUSE SERIOUS INJURY OR DEATH. EN- SURE SERVICE COVERS, CHAIN/BELT COVERS AND CLEAN-OUT DOOR ARE IN PLACE AND SECURELY FASTENED BEFORE OPERATING UNIT. • Before running the auger, inspect and verify all grain dust and filings are removed from inside the lower auger to prevent machine damage and the cleanout door is completely closed.
  • Page 51 — Set Up Brent V800 & V1000 Notes 2-32...
  • Page 52 — Operation Brent V800 & V1000 Section III Operation Operating Checklist ......................... 3-2 Preparing Tractor..........................3-3 Preparing Cart - Hardware ......................3-4 Preparing Cart - Pivot Pins......................3-4 Preparing Cart - Hitch........................3-4 Preparing Cart - Auger........................3-4 Preparing Cart - Auger Driveline Assembly ................... 3-4 Preparing Cart - Soft Start System ....................

  • Page 53: Operating Checklist

    — Operation Brent V800 & V1000 Operating Checklist  Read and understand all safety precautions before operating cart.  Check axle spacing to be sure axle is adjusted from shipping position to desired operating width. (If applicable)  Set or Calibrate tractor PTO control engagement to MINIMUM setting. Refer to tractor operator’s manual for setting information.

  • Page 54: Preparing Tractor

    — Operation Brent V800 & V1000 Preparing Tractor Before operating cart, read the tractor Operator’s Manual and gain an understanding of its safe methods of operation. Check the tractor brakes and transport lights. Make sure they are in proper working order.

  • Page 55: Preparing Cart - Hardware

    — Operation Brent V800 & V1000 Preparing Cart Perform the service checks below. Repair or replace any damaged or worn parts before operating. Hardware Check for loose bolts and nuts, and tighten as needed. Check again after the first half-day of operation.

  • Page 56: Preparing Cart - Hitch

    — Operation Brent V800 & V1000 Preparing Cart (continued) Soft Start System Check the missile shaft wear. Make sure there is grease on the missile cone to prevent binding during the fold and unfold sequence. Inspect the split bushing in the soft start receiver for uneven wear.

  • Page 57: Hitching To Tractor - Drawbar Connection

    — Operation Brent V800 & V1000 Hitching to Tractor Drawbar Connection This cart is intended to be hitched to a tractor drawbar. Do not attempt to hitch to any other location on the tractor other than the drawbar. The cart comes with a CAT 4 hitch for use with a 2”...

  • Page 58: Hitching To Tractor - Towing

    — Operation Brent V800 & V1000 Hitching to Tractor (continued) Jack Usage • UNHITCHING A LOADED CART CAN CAUSE SERIOUS INJURY OR DEATH DUE TO THE TONGUE RISING OR FALLING. ALWAYS HAVE A LOADED CART ATTACHED TO A TRACTOR. THE JACK IS INTENDED TO SUPPORT AN EMPTY CART ONLY.
  • Page 59 — Operation Brent V800 & V1000 Hitching to Tractor (continued) Transport Chain Connection • ALWAYS USE TRANSPORT CHAIN WHEN TRANSPORTING IMPLEMENTS. FAILURE TO USE A TRANSPORT CHAIN COULD CAUSE PERSONAL INJURY IF CART BECOMES DISENGAGED. • REPLACE TRANSPORT CHAIN IF ANY LINK OR END FITTING IS BROKEN, STRETCHED OR DAMAGED.

  • Page 60: Hitching To Tractor - Hydraulic Connections

    — Operation Brent V800 & V1000 Hitching to Tractor (continued) Hydraulic Connections FIG. 3-7 • When coupling hydraulic hoses to ports on the tractor, be sure that the coupler ends are clean of dust, dirt and debris. Failure to do so could contaminate hydraulic system resulting in excessive wear and possible failure.
  • Page 61 — Operation Brent V800 & V1000 Hitching to Tractor (continued) Hydraulic Connections for Hydraulic Drive NOTE: Refer to grain cart’s Hydraulic Drive Manual (282894) for installation, operation, and parts of the Hydraulic Drive. It is possible that the tractor utilizes more than one pump to achieve higher hydraulic flow rates.

  • Page 62: Hitching To Tractor - Electrical Connections

    — Operation Brent V800 & V1000 Hitching to Tractor (continued) Electrical Connections This cart is equipped with a seven-pin SAE con- nector plug which will connect with the receptacle found on most newer tractors. If your tractor does not have this type of receptacle, an SAE J-560 seven-point socket can be purchased from your Unverferth dealer (Part number 92824).
  • Page 63 — Operation Brent V800 & V1000 Hitching to Tractor (continued) Towing Even if the cart is equipped with brakes, ensure that the towing vehicle has adequate weight and braking capacity to tow this implement. See towing vehicle manual for towing capacity.
  • Page 64 — Operation Brent V800 & V1000 Hitching to Tractor (continued) PTO Chain NOTE: PTO chain is intended to prevent the shield from rotating against non-moving parts and there- by preventing shield damage. A properly installed chain will increase the service life of the shield.

  • Page 65: Auger Operation Pto Driven Auger

    — Operation Brent V800 & V1000 Auger Operation PTO Driven Auger • ELECTROCUTION WILL CAUSE SERIOUS INJURY OR DEATH. ELEC- TROCUTION CAN OCCUR WITHOUT DIRECT CONTACT. KEEP AWAY FROM ALL ELECTRICAL LINES AND DEVICES. • ENTANGLEMENT WITH THE DRIVELINE WILL CAUSE SERIOUS INJURY OR DEATH.
  • Page 66 — Operation Brent V800 & V1000 Auger Operation (continued) PTO Driven Auger (continued) FIG. 3-14 5. To slow or stop grain flow, close flow door, DO NOT reduce tractor/PTO RPM as a means to control grain flow. Close flow door fully when unloading is complete. (FIG.
  • Page 67 — Operation Brent V800 & V1000 Auger Operation (continued) Hydraulic Driven Auger Option The optional hydraulically-driven auger permits cart operation using tractors that are not equipped with a PTO. However, due to the power requirements of a grain cart, it should be expected that a hydraulically-driven grain cart will not unload as quickly as a PTO driven cart.

  • Page 68: Auger Operation - Hydraulic Driven Auger Option

    — Operation Brent V800 & V1000 Auger Operation (continued) Hydraulic Driven Auger Option (continued) NOTE: For complete assembly and operation details for the Hydraulic Drive, please refer to the Hydraulic Drive manual (282894). 1. Before loading cart or operating auger, verify that the flow control door is closed.

  • Page 69: Video System (Optional)

    — Operation Brent V800 & V1000 Video System (Optional) • Do not operate video system below 15°F. Damage to video system can occur. The video system kit includes its own operation instruction sheet. Weather Guard Tarp • TO PREVENT PERSONAL INJURY OR DEATH WHILE SERVICING, DO NOT ALLOW ANY- ONE ON A CLOSED TARP.
  • Page 70 — Operation Brent V800 & V1000 Weather Guard Tarp (continued) 1. Using both hands, carefully remove tarp handle from the tube holder. (FIG. 3-16) 2. Roll tarp to the desired location, choosing either a fully open or fully closed position.
  • Page 71 — Operation Brent V800 & V1000 Notes 3-20...
  • Page 72 — Maintenance Brent V800 & V1000 Section IV Maintenance Lubrication............................4-2 PTO Driveshaft Lubrication ......................4-4 Hydraulic System ..........................4-5 Purge Hydraulic System ......................4-5 Relieving Hydraulic Pressure ....................4-6 Bleeding Procedure for Braking System (Optional) ................ 4-7 Brake Pressure Manual Release ....................4-8 Wheel, Hub, and Spindle Disassembly and Assembly ..............

  • Page 73: Maintenance

    — Maintenance Brent V800 & V1000 Lubrication To keep your grain cart in top operating condition and to assure its proper performance and reliability for a long period of time, periodic inspection and lubrication is a must. Upper Auger Pivot Rings...

  • Page 74: Lubrication

    — Maintenance Brent V800 & V1000 Lubrication (continued) To keep your grain cart in top operating condition and to assure its proper performance and reliability for a long period of time, periodic inspection and lubrication is a must. Unverferth Mfg. recommends use of NLGI #2 Extreme Pressure grease.

  • Page 75: Pto Driveshaft Lubrication

    — Maintenance Brent V800 & V1000 PTO Driveshaft Lubrication - Benzi PTO Lubricate with NLGI grade 2 grease before starting work and every 8 operating hours. Clean and grease PTO driveshaft before each prolonged period of non-use. Molded nipples on the shield near each shield bearing are intended as grease fittings and should be lubricated every 8 hours of operation! Check and grease the guard tubes in winter to prevent freezing.

  • Page 76: Hydraulic System

    — Maintenance Brent V800 & V1000 Hydraulic System Refer to parts section for hydraulic component detail listing. When properly assembled and maintained, the hydraulic system of the grain cart requires little maintenance. Replacing Hoses/Fittings/Cylinders: 1. Use replacement hoses, fittings, and cylinders from your Unverferth Manufacturing dealer which are rated for 3000 psi.

  • Page 77: Relieving Hydraulic Pressure

    — Maintenance Brent V800 & V1000 Hydraulic System (continued) Relieving Hydraulic Pressure To relieve hydraulic pressure in the system, be sure hydraulic motor is disengaged and/or hydraulic cylinder is not exerting force on the system. Next, consult tractor operators manual...

  • Page 78: Bleeding Procedure For Braking System (Optional)

    — Maintenance Brent V800 & V1000 Bleeding Procedure For Braking System (Optional) • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. • RELIEVE THE HYDRAULIC SYSTEM OF ALL PRESSURE BEFORE ADJUSTING OR SERVICING. SEE THE HYDRAULIC POWER UNIT OPERATOR’S MANUAL FOR PROPER PROCEDURES.

  • Page 79: Brake Pressure Manual Release

    — Maintenance Brent V800 & V1000 Bleeding Procedure For Braking System (Optional) (continued) Brake Pressure Manual Release NOTE: System is intended for tractors with hydraulic trailer brakes. If your tractor does not have hydraulic trailer brakes, contact your dealer for support.

  • Page 80: Wheel, Hub And Spindle Disassembly And Assembly

    — Maintenance Brent V800 & V1000 Wheel, Hub and Spindle Disassembly and Assembly • TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH. BE SURE MACHINE IS SECURELY BLOCKED. • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER THE MACHINE AT ANY TIME WHILE BEING HOISTED.
  • Page 81 — Maintenance Brent V800 & V1000 Wheel, Hub and Spindle Disassembly and Assembly (continued) 5. Inspect the spindle and replace if necessary. If spindle does not need to be replaced, skip to Step 6; otherwise continue with Step 5. Remove the bolt and lock nut that retains the spindle to the axle. Using a safe lifting device rated for 200 lbs, replace the old spindle with a new spindle.

  • Page 82: Wheels And Tires - Wheel Nut Torque

    — Maintenance Brent V800 & V1000 Wheels and Tires Wheel Nut Torque Requirements • IMPROPERLY TORQUED WHEEL NUTS/BOLTS CAN CAUSE A LOSS OF IMPLEMENT CONTROL AND MACHINE DAMAGE. TORQUE WHEEL NUTS/BOLTS TO VALUES IN TABLE. CHECK TORQUE BEFORE USE, AFTER ONE HOUR OF UNLOADED USE OR AFTER FIRST LOAD, AND EACH LOAD UNTIL WHEEL NUTS/BOLTS MAINTAIN TORQUE VALUE.
  • Page 83 — Maintenance Brent V800 & V1000 Wheels and Tires (continued) Tire Pressure The following is to be used as a general guide for tire inflation and figures can vary depending on specific brand of tire used. It is important that tires are inspected after unit is loaded.
  • Page 84 — Maintenance Brent V800 & V1000 Wheels and Tires (continued) Tire Pressure (continued) 4-13...
  • Page 85 — Maintenance Brent V800 & V1000 Wheels and Tires (continued) Tire Warranty For questions regarding new tire warranty, please contact your local original equipment tire dealer. USED TIRES CARRY NO WARRANTY. Following are phone numbers and Websites for your convenience: Firestone www.firestoneag.com...

  • Page 86: Gearbox Lubrication

    — Maintenance Brent V800 & V1000 Gearbox Lubrication The fill plug is located on the right-hand front FIG. 4-4 side of the housing. To check oil fluid level, place cart on a level surface with the tongue elevated to hitch height 9002812 and remove the plug.

  • Page 87: Auger System

    — Maintenance Brent V800 & V1000 Auger System • TO PREVENT PERSONAL INJURY OR DEATH, ALWAYS ENSURE THAT THERE ARE PEOPLE WHO REMAIN OUTSIDE THE CART TO ASSIST THE PERSON WORKING IN- SIDE, AND THAT ALL SAFE WORKPLACE PRACTICES ARE FOLLOWED. THERE ARE RESTRICTED MOBILITY AND LIMITED EXIT PATHS WHEN WORKING INSIDE THE IMPLEMENT.

  • Page 88: Lower Auger Removal

    — Maintenance Brent V800 & V1000 Auger System (continued) Lower Auger Removal Capscrew (9390-057), Flat Washers (9405-076), Lock Washers (9404-021), Hex Nut (9394-006) 1. Remove the three 3/8”-16UNC x 1 1/2” capscrews (9390-057), six 3/8” flat washers (9405-076), three 3/8” lock washers (9404- Hanger Bearing 021) and 3/8”-16UNC hex nuts (9394-006)

  • Page 89: Lower Auger Replacement

    — Maintenance Brent V800 & V1000 Auger System (continued) Lower Auger Replacement 1. Slide drive dog assembly out of old flighting. 2. The replacement auger is factory balanced. LOOKING DOWN INTO THE LOWER AUGER FLIGHTING Remove entire auger from shipping crate and secure from rolling.
  • Page 90 — Maintenance Brent V800 & V1000 Auger System (continued) Lower Auger Replacement (continued) 8. Align auger end with the five pin drive bush- FIG. 4-7 ing and securely engage together, see FIGS. 4-7 and 4-8. Secure hanger bearing to auger housing tube wall with original three 3/8”-16UNC x 1 1/2”...
  • Page 91 — Maintenance Brent V800 & V1000 Auger System (continued) Lower Auger Replacement (continued) 11. Perform a final inspection of auger and lower collector box to ensure all debris and tools have been removed. Close the clean-out door completely and lock the position. Connect PTO to tractor.

  • Page 92: Auger Timing

    — Maintenance Brent V800 & V1000 Auger System (continued) Auger Timing 1. For the lower auger, use the finishing edge of the flighting as a 12 o’clock reference. Position the drive dog so the driving edge is at 11 o’clock position.

  • Page 93: Upper Auger Removal

    — Maintenance Brent V800 & V1000 Auger System (continued) Upper Auger Removal 1. Support the upper auger assembly using a safe lifting device rated at 4,000 lbs. and two straps rated for 2,000 lbs. 2. Remove auger tube cylinder pin and carefully swing cylinder down without breaking hose connections.

  • Page 94: Soft Start Replacement

    — Maintenance Brent V800 & V1000 Auger System (continued) Soft Start Replacement 11. Remove the 1/2”-13UNC x 7” capscrew (9390-117), 1/2”-13UNC lock nut (9800), soft start assem- bly, thrust washer (9004878), and bushing (9004877). Discard capscrew only. (FIG. 4-15) 1/2"-13UNC Lock Nut (9800) 4.250"...

  • Page 95: Upper Auger Replacement

    — Maintenance Brent V800 & V1000 Auger System (continued) 15. Retain the soft start into position with 1/2”-13UNC x 8” capscrew (9390-119), spacer bushing (410511), and 1/2”-13UNC lock nut (9800). (FIG. 4-17) 1/2"-13UNC Lock Nut (9800) Spacer Bushing (410511) 4.250" OD x 4.011" ID Bushing (9004877) 1/2"-13UNC x 8"...
  • Page 96 — Maintenance Brent V800 & V1000 Auger System (continued) Upper Auger Replacement (continued) 5. Insert auger stub shaft through upper auger bearing. Make sure that the 4 bolt flange bearing is sitting tight against the mounting plate and then tighten the two bear- ing set screws.

  • Page 97: Upper Auger Bearing Gap

    — Maintenance Brent V800 & V1000 Auger System (continued) Upper Auger Bearing Gap 14. Unfold the auger to the unload position. 15. Verify the upper auger bearing height by inspecting the upper auger bearing in op- erating position. There should be minimum 1/16”...

  • Page 98: Auger Flow Door Cylinder Replacement

    — Maintenance Brent V800 & V1000 Auger System (continued) Auger Flow Door Cylinder Replacement • TO PREVENT PERSONAL INJURY OR DEATH, ALWAYS ENSURE THAT THERE ARE PEOPLE WHO REMAIN OUTSIDE THE CART TO ASSIST THE PERSON WORKING IN- SIDE, AND THAT ALL SAFE WORKPLACE PRACTICES ARE FOLLOWED. THERE ARE RESTRICTED MOBILITY AND LIMITED EXIT PATHS WHEN WORKING INSIDE THE IMPLEMENT.
  • Page 99 — Maintenance Brent V800 & V1000 Auger System (continued) Auger Flow Door Cylinder Replacement (continued) 2. On the inside of the cart, open the screen FIG. 4-22 service access panel shown in Fig. 4-22. Screen Service Access Panel 3. Remove the cotter pins from the lower cylinder pin then remove the pin.
  • Page 100 — Maintenance Brent V800 & V1000 Auger System (continued) Auger Flow Door Cylinder Replacement (continued) 6. Label the hydraulic hoses to indicate upper and lower. Disconnect them from the cyl- Remove Lower inder, along with the lower hydraulic fitting Hose & Fitting (Fig.

  • Page 101: Auger Driveline

    — Maintenance Brent V800 & V1000 Auger Driveline Bearings It is important to periodically check setscrews in all bearings of the driveline for tightness. Driveline Replacement BOTTOM VIEW Flangette Bearings FIG. 4-26 1. Park the empty cart on a firm, level surface. Block the wheels or tracks on the cart to keep it from moving.
  • Page 102 — Maintenance Brent V800 & V1000 Auger Driveline (continued) Driveline Replacement (continued) 6. Remove bearings, bearing mounts, universal joint cover, PVC driveshaft cover, driveshaft collars (if collars are attached to driveshaft), and driveline cover, located behind the ladder, off the current driveshaft.
  • Page 103 — Maintenance Brent V800 & V1000 Auger Driveline (continued) U-Joint Quick Disconnect Pin (continued) FIG. 4-31 10 Insert quick disconnect pin, compression spring and washer into U-joint pin hole. (FIG. 4-31) 11. Holding the washer in place, peen the edges of the pore seat to retain the washer, spring and pin.
  • Page 104 — Maintenance Brent V800 & V1000 Auger Driveline (continued) Driveline Replacement (continued) 15. Slide new two-piece 1 1/2” dia. shaft collars (9008671) to both sides of new bearing (9003920) closest to the U-Joint, when installing bearings onto new driveshaft (Kit 289771).
  • Page 105 — Maintenance Brent V800 & V1000 Auger Driveline (continued) Driveline Replacement (continued) 20. Tighten all flangette mounting hardware. Universal Joint NOTE: The driveshaft has a dimple to aid Drill Dimple Orientation in Line in aligning the yokes on both ends of the on Driveshaft driveline.

  • Page 106: Seasonal Storage

    — Maintenance Brent V800 & V1000 Seasonal Storage Your cart is an important investment. Spend a little time to protect it from destructive rust and corrosion. You will be repaid in longer service life and better performance. Do the following before placing the cart in storage: FIG.

  • Page 107: Adjusting Cleanout Door

    — Maintenance Brent V800 & V1000 Adjusting Cleanout Door MOVING PARTS CAN CRUSH AND CUT. KEEP AWAY FROM MOVING PARTS. • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT • MUST BE WORN WHILE SERVICING THE IMPLEMENT.
  • Page 108 — Maintenance Brent V800 & V1000 Adjusting Cleanout Door (continued) 5. Push the gear assembly toward bottom of auger to remove excess movement and prevent the door from moving upward when Push Gear Assembly Toward Bottom of Auger unloading the cart. (FIG. 4-41) FIG.

  • Page 109: Verify Telescoping Pto Shaft Length

    — Maintenance Brent V800 & V1000 Verify Telescoping PTO Shaft Length • PROPERLY EXTENDED AND COLLAPSED LENGTHS OF THE TELESCOPING PTO SHAFT MUST BE VERIFIED BEFORE FIRST OPERATION WITH EACH AND EVERY DIFFERENT TRACTOR. IF THE EXTENDED LENGTH OF THE PTO SHAFT IS NOT SUFFICIENT, IT...
  • Page 110 — Maintenance Brent V800 & V1000 Verify Telescoping PTO Shaft Length (continued) 4. Hitch tractor drawbar to cart, ensuring that tractor and cart are on level ground and coupled as straight as practical. 5. Connect PTO shaft to tractor, and measure length “L” from same points as used in step 1. Ensure that this measurement does not exceed the maximum recommended extended length calculated in step 3 above.

  • Page 111: Pto Shaft Length Adjustment

    — Maintenance Brent V800 & V1000 PTO Shaft Length Adjustment • CHECK THE LENGTH OF THE TELESCOPING MEMBERS TO ENSURE THE DRIVELINE WILL NOT BOTTOM OUT OR SEPARATE WHEN TURNING AND/OR GOING OVER ROUGH TERRAIN. NOTE: Maximum operating length LB. (Refer to “Verify Telescoping PTO Shaft Length” in this section for LB length.)

  • Page 112: Pto Shaft And Clutch

    — Maintenance Brent V800 & V1000 PTO Shaft and Clutch Shear-Bolt and Friction Clutches (Figs. H1 - H3) 1. Shear bolt clutches: When the set torque value is exceeded, power flow is interrupted due to the bolt shearing. The torque is re-established by replacing the broken shear bolt.
  • Page 113 — Maintenance Brent V800 & V1000 PTO Shaft and Clutch (continued) To Dismantle Guard (Figs. J1 - J3) 1. Pull the guard tube backwards and, using a screwdriver, disengage the three bearing ring tabs by pushing them inward. (FIG. J1) 2.
  • Page 114 — Maintenance Brent V800 & V1000 PTO Shaft and Clutch (continued) To Assemble Guard (Figs. K1 - K3) 1. Clean and grease the bearing ring, yoke groove and inner profile tube. (FIG. K1) 2. Fit bearing ring in groove with three bearing ring tabs positioned as shown.

  • Page 115: Pto Locking Systems

    — Maintenance Brent V800 & V1000 PTO Locking Systems Ball-Type Collar Coupling Slide clamp yoke or clutch onto gearbox driveline splined shaft. Pull in the coupler collar to release the balls and simultaneously push PTO driveshaft into the gearbox splined shaft until the coupler collar locks onto the driveline grooves.

  • Page 116: Tarp Troubleshooting Inspection & Maintenance

    — Maintenance Brent V800 & V1000 Tarp Troubleshooting Inspection & Maintenance PROBLEM SOLUTION TARP SAGS IN MIDDLE AREAS BOWS MAY BE BENT OR ADJUSTED TOO LOW MISSING OR LOOSE RIDGE STRAP REPLACE OR RETIGHTEN TENSION MAY BE TOO LOOSE. U-JOINT MAY...

  • Page 117: Electrical System Diagram

    — Maintenance Brent V800 & V1000 Electrical System Diagram — Overall Right-Hand Side Tail Light RH Sub Assembly #292358B Work Light #9008957 Red Tail/Turn Amber Light - Micro Dot Rear Wiring Light #9006107 Harness #9006282 #9008349 To Tractor Front Wiring Harness #9007662...

  • Page 118: Electrical System Diagram

    — Maintenance Brent V800 & V1000 Electrical System Diagram — Plug #92450 GRAIN CART WIRES White -- Ground Black - Work Lights Green -- Right amber flashing lamp Green - RH Turn Yellow -- Left amber flashing lamp Yellow - LH Turn...
  • Page 119 — Maintenance Brent V800 & V1000 Electrical System Schematic - Optional Wireless Electric Tarp 4-48...
  • Page 120 — Maintenance Brent V800 & V1000 Electrical Diagram — Front Wiring Harness #9007662 4-49...
  • Page 121 — Maintenance Brent V800 & V1000 Electrical Diagram — Rear Wiring Harness #9008349 4-50...
  • Page 122 — Maintenance Brent V800 & V1000 Electrical Diagram — Auger Wiring Harness #9009087 4-51...
  • Page 123 — Maintenance Brent V800 & V1000 Electrical Diagram — Proximity Sensor #9007472 Electrical Diagram — Work Light #9008957 2 PIN INTEGRATED DEUTSCH CONNECTOR POWER (PIN #1) GROUND (PIN #2) 4-52...
  • Page 124 — Maintenance Brent V800 & V1000 Electrical Diagram — Red Tail/Turn Light #9006282 Electrical Diagram — Amber Light - Micro Dot #9006107 Electrical Diagram — Amber Lamp Double Face #9005142 4-53...

  • Page 125: Hydraulic System Diagram

    — Maintenance Brent V800 & V1000 Hydraulic System Diagram Tan (+ Spout Out) Port B Port A Tan (- Spout In) Red (- Flow Door Closed) Red (+Flow Door Open) Green (+ Auger Raise) Green (- Auger Lower) Yellow (+ Spout Tilt Out)

  • Page 126: Braking System Schematic (Optional) - Model V1000

    — Maintenance Brent V800 & V1000 Braking System Schematic (Optional) — Model V1000 9007548 9007548 9876 9875 9007546 9004829 9005173 & 9005174 9390-147 (12) Total 9404-033 (12) Total 286237 9004762 (2) Total (4) Total 9390-348 (20) Total 9404-029 (20) Total...

  • Page 127: Capscrews - Grade 5

    — Maintenance Brent V800 & V1000 Complete Torque Chart Capscrews - Grade 5 NOTE: • Grade 5 capscrews can be identified by three radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end.

  • Page 128: Capscrews - Grade 8

    — Maintenance Brent V800 & V1000 Complete Torque Chart Capscrews - Grade 8 NOTE: • Grade 8 capscrews can be identified by six radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end.
  • Page 129 — Maintenance Brent V800 & V1000 Hydraulic Fittings – Torque and Installation SAE Flare Connection (J. I. C.) 1. Tighten nut with finger until it bottoms the seat. 2. Using a wrench, rotate nut to tighten. Turn nut 1/6 turn or 60 degrees to apply proper torque.
  • Page 130 — Parts Brent V800 & V1000 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-59...
  • Page 131 Rigid Axle V800 (Single Wheel)....................5-18 Rigid Axle V1000 (Single Wheel)....................5-19 Adjustable Axle V800........................5-20 Adjustable Axle V1000........................5-22 Track Axle V800 and V1000 ......................5-24 Hub & Spindle — Straddle Duals ....................5-26 Hub & Spindle — Single Wheel....................5-27 Single Wheels & Tires........................5-28 Dual Wheels & Tires ........................5-29 Brake Components —...

  • Page 132: Decals

    — Parts Brent V800 & V1000 Decals Please visit www.unverferth.com/parts/ for the most current parts listing.

  • Page 133: Touch-Up Paint

    Uses Items 30, 31, and 32 9008720 Decal, Rear SIS 30 KPH 9003477 Decal, IMPORTANT “Flow Control Gate” 9006360 Decal, Brent Logo - 5.5” x 43” 9006361 Decal, Stripe - 2.73” x 36.50” 9003574 Decal, IMPORTANT “Shear-Bolts” 97575 Decal, CAUTION “Transport Chain”...

  • Page 134: Upper Auger Components

    — Parts Brent V800 & V1000 Upper Auger Components Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 135 — Parts Brent V800 & V1000 Upper Auger Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9390-136 Capscrew 5/8"-11UNC x 6" Grade 5 9801 Locknut/Top 5/8"-11UNC 268946 Pivot Shaft Weldment 9390-164 Capscrew 7/8"-9UNC x 2" Grade 5 97041 Flat Washer 7/8"...

  • Page 136: Lower Auger Components

    — Parts Brent V800 & V1000 Lower Auger Components Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 137 — Parts Brent V800 & V1000 Lower Auger Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9006107 Amber Light - Micro Dot - LED 296801B U-Joint Assembly Cover (Black) 296802B Cover Plate 7 3/4” x 16” =Black= 296803B Cover Plate 12 21/32”...

  • Page 138: Hopper Cross Brace Components

    — Parts Brent V800 & V1000 Hopper Cross Brace Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 281943B Cross Brace Weldment =Black= 220032B Angle Brace =Black= 91266 Flange Screw 1/2”-13UNC x 1 1/4” Grade 5 9002058 Flange Nut 1/2”-13UNC Grae 5...

  • Page 139: Cleanout Door Assembly

    — Parts Brent V800 & V1000 Cleanout Door Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 268313B Plate - Lock =BLACK= 281105B Plate - Door Rack =BLACK= 286996B Door Weldment =BLACK= 286801...

  • Page 140: Flow Door Seals

    — Parts Brent V800 & V1000 Flow Door Seals Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 281255 Seal - Poly 281256 Seal - Poly 281257G Spacer Bushing =Green= 281257R Spacer Bushing =Red=...
  • Page 141 — Parts Brent V800 & V1000 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-11...

  • Page 142: Final Assembly

    — Parts Brent V800 & V1000 Final Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. 5-12...
  • Page 143 — Parts Brent V800 & V1000 Final Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 250461B Bracket, Window Retainer =Black= 286831B Ladder Weldment =Black= 286845B Ladder Bracket Weldment =Black= 271951 Window Molding 9001917 Tension Bushing 2”...
  • Page 144 — Parts Brent V800 & V1000 Sideboards — Model V800 Please visit www.unverferth.com/parts/ for the most current parts listing. 5-14...
  • Page 145 — Parts Brent V800 & V1000 Sideboards — Model V800 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 220032B Tube, Angle Brace/Sideboard Support =Black= 271574B Lamp Mount Bracket =Black= 296360B Sideboard, Front LH =Black=...

  • Page 146: Sideboards V1000

    — Parts Brent V800 & V1000 Sideboards — Model V1000 Please visit www.unverferth.com/parts/ for the most current parts listing. 5-16...
  • Page 147 — Parts Brent V800 & V1000 Sideboards — Model V1000 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 220032B Tube, Angle Brace/Sideboard Support =Black= 271574B Lamp Mount Bracket =Black= 296276B Sideboard, Front LH =Black=...
  • Page 148 — Parts Brent V800 & V1000 Rigid Axle — Model V800 (Single Wheel) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 291630B Rigid Axle Assembly w/out Scales (Black) Includes Items 1 through 9...
  • Page 149 — Parts Brent V800 & V1000 Rigid Axle — Model V1000 (Single Wheel) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 291526B Rigid Axle Assembly w/out Scales (Black) Includes Items 1 through 9...
  • Page 150 — Parts Brent V800 & V1000 Adjustable Axle — Model V800 Please visit www.unverferth.com/parts/ for the most current parts listing. 5-20...
  • Page 151 — Parts Brent V800 & V1000 Adjustable Axle — Model V800 Please visit www.unverferth.com/parts/ for the most current parts listing. PART NUMBER ITEM DESCRIPTION NOTES Straddle Single Wheel Single Wheel Duals With Risers Without Risers 291637B 291633B 292635B Adjustable Axle Assembly w/out Scales (Black)
  • Page 152 — Parts Brent V800 & V1000 Adjustable Axles — Model V1000 Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: If equipped, see “Brake Components (Optional) - PARTS pages. 5-22...
  • Page 153 — Parts Brent V800 & V1000 Adjustable Axle — Model V1000 Please visit www.unverferth.com/parts/ for the most current parts listing. PART NUMBER ITEM DESCRIPTION NOTES Straddle Single Wheel Single Wheel Duals With Risers Without Risers 291179B 291476B 292518B Adjustable Axle Assembly w/out Scales (Black) Includes Items 1-5A &...
  • Page 154 — Parts Brent V800 & V1000 Track Axle — Model V800 and V1000 Please visit www.unverferth.com/parts/ for the most current parts listing. FOR TRACK INFORMATION, PLEASE REFER TO YOUR TRACK MANUAL. 5-24...
  • Page 155 — Parts Brent V800 & V1000 Track Axle — Model V800 and V1000 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 292522B 36” Track Axle Bundle, Non-Scale (Black) Includes Items 1 through 8 All Service Parts Are Black 291394B 36”...

  • Page 156: Hub & Spindle - Straddle Duals

    QTY. NOTES Includes 2 through 15 & 18 284269B Hub & Spindle Assembly w/out Scales (Black) For Model V800 Less Scales & All Model V1000 Includes 2 through 15 & 18 267210B Hub & Spindle Assembly w/Scales (Black) For Model V800 with Scales Only 280240 Spindle Dia.

  • Page 157: Hub & Spindle - Single Wheel

    — Parts Brent V800 & V1000 Hub & Spindle — Single Wheel Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: All V1000 & V800 with 900/60R32, 900/65R32, 1050/50R32, & 1250/50R32 tire options have M22 hardware. All other V800 tire options have 3/4”...

  • Page 158: Single Wheels & Tires

    — Parts Brent V800 & V1000 Single Wheels & Tires Please visit www.unverferth.com/parts/ for the most current parts listing. TIRES For questions regarding new tire warranty, please contact your lo- cal original equipment tire dealer. Used tires carry no warranty.

  • Page 159: Dual Wheels & Tires

    — Parts Brent V800 & V1000 Dual Wheels & Tires Please visit www.unverferth.com/parts/ for the most current parts listing. TIRES For questions regarding new tire warranty, please contact your lo- cal original equipment tire dealer. Used tires carry no warranty.
  • Page 160 — Parts Brent V800 & V1000 Brake Components (Optional) — Model V1000 (Requires tractor with Implement Braking) Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: For V1000 with adjustable axle option ONLY. 5-30...
  • Page 161 — Parts Brent V800 & V1000 Brake Components (Optional) — Model V1000 (Requires tractor with Implement Braking) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 292496B Axle Extension Weldment, Left-Hand =BLACK= All Service Parts Are Black...

  • Page 162: Cylinders

    — Parts Brent V800 & V1000 Cylinders — 4” x 20” (Auger Fold) Please visit www.unverferth.com/parts/ for the most current parts listing. 3/4-16 UNF ORB PORTS 2 PLCS ITEM PART NUMBER DESCRIPTION QTY. NOTES 9007960 Cylinder, Complete 9008025 Seal Kit Cylinders —...
  • Page 163 — Parts Brent V800 & V1000 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-33...

  • Page 164: Hydraulics

    — Parts Brent V800 & V1000 Hydraulics Please visit www.unverferth.com/parts/ for the most current parts listing. Port B Spout Out Spout In Port A Flow Door Closed Flow Door Open Serial #B37430100-Up Auger Raise Auger Lower Serial #B37430099-Lower Spout Tilt Out...
  • Page 165 — Parts Brent V800 & V1000 Hydraulics Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9009751 Aluminum Hose Grip Green (+ Auger Raise) 9009752 Aluminum Hose Grip Green (- Auger Lower) 9009765 Aluminum Hose Grip Tan (+ Spout Out)

  • Page 166: Directional Spout Mounting Components

    — Parts Brent V800 & V1000 Directional Spout Mounting Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-36...
  • Page 167 — Parts Brent V800 & V1000 Directional Spout Mounting Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 292150B Spout Assembly =Black= 9390-059 Capscrew 3/8”-16UNC x 2” Grade 5 9405-064 Flat Washer 1/4” USS 272748 Pad-Pivot, 20 11/16”...

  • Page 168: Directional Spout Motor Components

    — Parts Brent V800 & V1000 Directional Spout Motor Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 9007626 Hydraulic Motor 3.07 CID 272840 Gear Weldment 9007653 Set Screw 1/4”-20UNC x 3/16” 9003809...
  • Page 169 — Parts Brent V800 & V1000 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-39...

  • Page 170: Directional Spout Components

    — Parts Brent V800 & V1000 Directional Spout Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-40...
  • Page 171 — Parts Brent V800 & V1000 Directional Spout Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 292150B Spout Assembly =BLACK= 291670B Bracket-Light, Service Kit =BLACK= Includes Item 10 Includes Spout Weldment &...

  • Page 172: Pto Assembly Shearbolt Clutch

    — Parts Brent V800 & V1000 PTO Assembly Shearbolt Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. 1 3/4”-20 Spline Shown 5-42...
  • Page 173 — Parts Brent V800 & V1000 PTO Assembly Shearbolt Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES PTO Assembly Complete - 1 3/4”-20 Spline Includes Front and Rear Half Assemblies 9008526 (Tractor End) (Benzi America PTO) PTO Assembly Complete - 1 3/8”-21 Spline...

  • Page 174: Shearbolt Clutch Assembly

    — Parts Brent V800 & V1000 Shearbolt Clutch Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: Clutch Assembly (9009034) must be used with the Complete PTO Assembly (9008526) or (9009253 - optional). • USE GENUINE OEM REPLACEMENT PART. Incorrect part may cause shear function to occur too soon causing inconvenience or too late resulting in damage to driveline and auger com- ponents.
  • Page 175 — Parts Brent V800 & V1000 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-45...

  • Page 176: Pto Assembly Friction Clutch

    — Parts Brent V800 & V1000 PTO Assembly Friction Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. 1 3/4”-20 Spline Shown 5-46...
  • Page 177 — Parts Brent V800 & V1000 PTO Assembly Friction Clutch Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES PTO Assembly Complete - 1 3/4”-20 Spline Includes Front and Rear Half Assemblies 9009258 (Tractor End) (Benzi America PTO) PTO Assembly Complete - 1 3/8”-21 Spline...

  • Page 178: Friction Clutch Assembly

    — Parts Brent V800 & V1000 Friction Clutch Assembly Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: Clutch Assembly (9009256) must be used with the Complete PTO Assembly (9009258) or (9009257 - optional). NOTE: The clutch is preset at the factory and should not require adjustment.
  • Page 179 — Parts Brent V800 & V1000 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-49...

  • Page 180: Driveline & U-Joint Assembly Components

    — Parts Brent V800 & V1000 Driveline & U-Joint Assembly Components Please visit www.unverferth.com/parts/ for the most current parts listing. To Tractor 5-50...
  • Page 181 — Parts Brent V800 & V1000 Driveline & U-Joint Assembly Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 9003920 1 1/2” Flangette Bearing 9388-103 Carriage Bolt 1/2”-13 x 1 1/4” 9404-025 Lock Washer 1/2”...

  • Page 182: 45 Degree Gearbox - With 6 Spline Input Shaft

    — Parts Brent V800 & V1000 45 Degree Gearbox - With 6 Spline Input Shaft Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 9002812 Gearbox, Complete with 6 Spline Input Shaft Includes Items 1 thru 17...
  • Page 183 — Parts Brent V800 & V1000 Notes Please visit www.unverferth.com/parts/ for the most current parts listing. 5-53...

  • Page 184: Electrical

    — Parts Brent V800 & V1000 Electrical Please visit www.unverferth.com/parts/ for the most current parts listing. Right-Hand Side To Tractor Left-Hand Side To Directional Spout 5-54...
  • Page 185 — Parts Brent V800 & V1000 Electrical Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 9007662 Wiring Harness, Front 180" Includes Items 3A, 4 through 12, 292358B Tail Light RH Sub Assembly =Black=...

  • Page 186: Weather Guard Tarp Frame Components

    — Parts Brent V800 & V1000 Weather Guard Tarp Frame Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. V800 Only Front of Cart 5-56...
  • Page 187 — Parts Brent V800 & V1000 Weather Guard Tarp Frame Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION QTY. NOTES 221811B For Model V800 ONLY Tarp Kit w/End Caps (Black) 290955B For Model V1000 ONLY 281712B Bracket &...

  • Page 188: Weather Guard Tarp & Handle Components

    — Parts Brent V800 & V1000 Weather Guard Tarp & Handle Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-58...
  • Page 189 — Parts Brent V800 & V1000 Weather Guard Tarp & Handle Components (Optional) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION QTY. NOTES 221811B For Model V800 ONLY Tarp Kit w/End Caps 290955B For Model V1000 ONLY...
  • Page 190 — Parts Brent V800 & V1000 Video System Option — Model V1000 Please visit www.unverferth.com/parts/ for the most current parts listing. 9004510 CABLE W/FUSE WIRES Red -- Key Switched Power Black -- Ground Green -- NOT USED White -- NOT USED...
  • Page 191 — Parts Brent V800 & V1000 Video System Option — Model V1000 Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES Includes Items 1,3,4,5,7,8,9 and own 265770 Video System Kit for Front View instruction sheet...
  • Page 192 www.unverferth.com MANUALS\\297411/February 2024-0...

This manual is also suitable for:

V1000

Table of Contents
