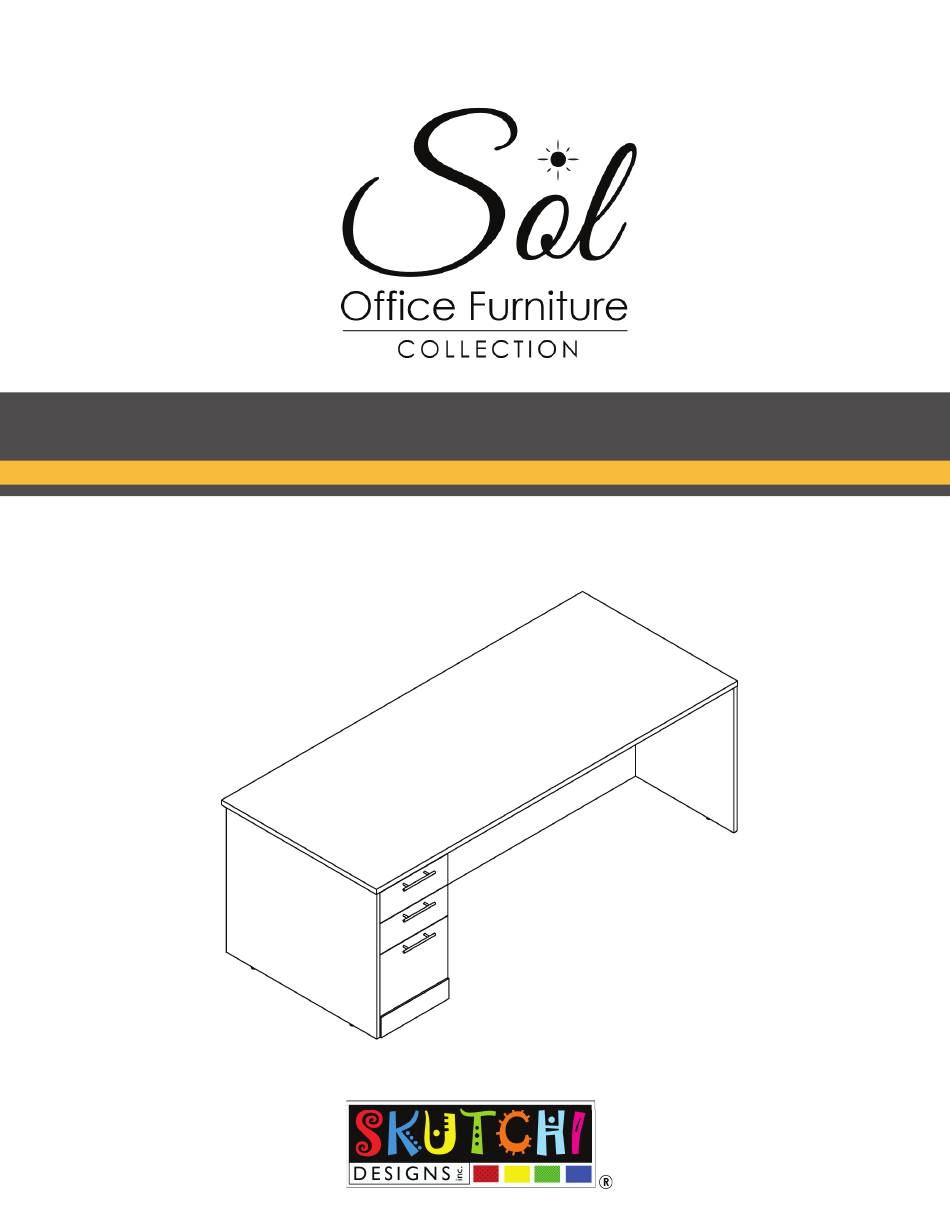

- Page 1 Desk Installation Guide STRAIGHT DESK AND STORAGE INSTALLATION 888-993-3757...
-
Page 2: Tools Needed
Straight Desk Install SKU: SOL-DKS-3684 Back View Front View Tools Needed Drill (optional) #2 Phillips Head & #3 Phillips Head Screwdrivers Parts Hardware Part Quantity CAM Lock (Pin & Lock) Wooden Dowel Feet L Brackets Hole Covers Laminate Part Quantity... - Page 3 Straight Desk Install Cont’d Step 1: Lay all pieces out hole side up. Side Step 2: Attach the left-side laminate piece to the modesty laminate piece (figure 1). Step 2A: Place all cam pins, wooden dowels, and feet Modesty to the appropriate piece. (view labels and chart). Label Quantity Part...
- Page 4 Straight Desk Install Cont’d Step 4B: Tighten all cam pins with the #2 phillips head. Step 4C: Attach top laminate to modesty and sides. Step 4D: Place cam locks in all holes that have a cam pin and tighten with #3 phillips head. Step 5: Place hole covers over cam locks.
- Page 5 Under Storage Installation Cont’d Step 1: Remove hardware from top drawer through the top of the under storage and unlock the drawers (figure 6). Reference figure 5 for an image of the lock and key. Step 2: Attach feet to the bottom of the under storage and adjust height (figure 6).
