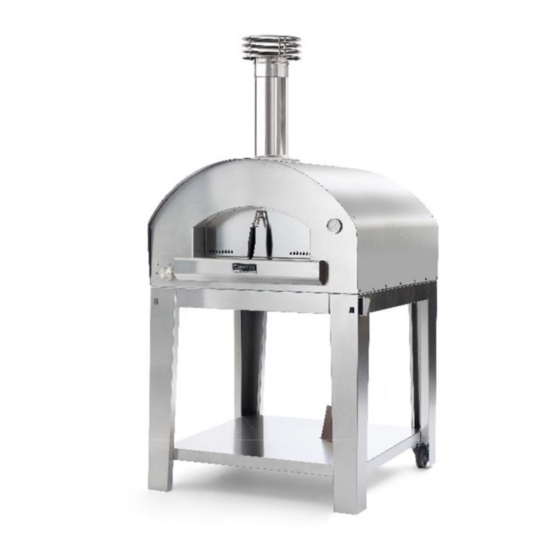

- Page 1 3.0 01/08/2023 OUTDOOR OVENS FOR DOMESTIC USE MODELS: 6050-…PRO / 6070-…PRO / 8070-…PRO USER MANUAL Installation, operation and maintenance FONTANA FORNI SRL Via G.di Vittorio, 6 61047 San Lorenzo in Campo (PU) Tel +39 0721 776697 Fax +39 0721 735370...
-
Page 2: Table Of Contents
ROUTINE AND NON-ROUTINE MAINTENANCE Dear customer, we would like to thank you for the preference you have given to our products. This manual will allow you to install and use the oven you purchased in the best possible way and safely. We advise you to carefully read the following manual before carrying out the first ignition. -
Page 3: General Warnings
GENERAL WARNINGS KEEP THIS MANUAL FOR FUTURE REFERENCE WARNING: Improper connection as well as any alterations or improper maintenance can cause material damage to property or persons and even death in extreme cases. Read the instructions carefully before installing and using the appliance. - Page 4 - Do not allow children to approach the appliance during operation, DANGER OF BURNS or to play with it even when off. Do not insert sharp metal objects (cutlery or tools) into the slits of the appliance. - The furnaces, although they have insulating material between the two layers of steel, may overheat outside.
- Page 5 - Do not obstruct the openings, ventilation and heat disposal slots where present. - When in use, for ovens with integrated base (trolley), remember to lock the wheels using the brake. page 5...
-
Page 6: Safety Warnings
SAFETY WARNINGS READ ALL THE INSTRUCTIONS BEFORE INSTALLING AND USING THE PRODUCT. Read the entire manual before proceeding with installation. Failure to follow these procedures could result in damage to property and persons and possibly death. Contact the competent authorities regarding any installation restrictions. ONE OF THE MAJOR CAUSES OF FIRES INVOLVING THE OVEN IS DUE TO FAILURE TO OBSERVE MINIMUM DISTANCES FROM COMBUSTIBLE MATERIALS OR INCORRECT INSTALLATION. -
Page 7: Warranty
WARRANTY In compliance with Italian and European regulations, ovens are covered by the legal guarantee, payable by the retailer, 24 months from the date of purchase. After the 24-month warranty period, all repairs will be borne by the consumer. YOU ARE REQUIRED TO KEEP THE RECEIPT OR PURCHASE INVOICE TO BE SHOWN TO THE RETAILER. - Page 8 • If components not produced or recommended by the manufacturer are used. • Damage to non-functional and decorative parts that do not affect normal oven use, including scratches and colour differences. • In the event that the plate is removed, modified or rendered illegible. •...
-
Page 9: Installation
INSTALLATION (FOR EXTERNAL USE ONLY) WARNING: Oven exterior walls may reach temperatures above 50°C (120°F) any flammable materials must not be within 1 meter of the oven. It is recommended to place the oven during use at a sufficient distance from flammable materials or materials that may be damaged by heat. - Page 10 page 10...
-
Page 11: Lpg Connection
LPG CONNECTION ONLY FOR LPG MODELS CONNECT THE LPG CYLINDER TO THE OVEN The cylinder, which is always equipped with a pressure regulator (not supplied), must be connected to the oven via a suitable flexible rubber hose (not supplied) between 60 and 150 cm in length. The inlet connection of the oven includes a G1/2"... - Page 12 PRESSURE REGULATOR (not supplied): This appliance must be equipped with a pressure regulator in compliance with local/national standards and/or regulations with a nominal pressure output of: 29 mbar = CATEGORY I3+(28-30/37) Propane 37 mbar. Butane 28-30 mbar. 29 mbar = CATEGORY I3B/P (30) Propane/Butane 30 mbar.
-
Page 13: Ng Connection (Natural Gas)
NG CONNECTION (natural gas) FOR NATURAL GAS CNG MODELS ONLY The oven can be fitted for natural gas operation on request when ordering. The conversion consists of fitting calibrated nozzles and minimum adjustment specific to the gas category. Approved countries and pressures are indicated on the following pages. -
Page 14: Storage, Service, Maintenance
STORAGE AND PRESERVATION When storing the appliance for extended periods of time, remove the cylinder and cover it so that proper ventilation is ensured to reduce condensation. Store the Cylinder outdoors in a well-ventilated area. SERVICE This gas appliance must not be altered or tampered with. Any accommodation or assistance must be carried out by a technician. -
Page 15: Indications For Use And Technical Specifications
INDICATIONS for use and technical characteristics. Follow the precautions and advice listed in the "installation" paragraph to position the oven correctly and safely. In models equipped with a trolley after positioning, ensure the stability of the oven to avoid accidental movement during use, prefer hard or compact surfaces so as not to alter the oven's structure during use. - Page 16 Models: 6050-…PRO The maximum system power output for each gas category (LPG or METHANE) is approximately: 16 kW/h LPG (G30-G31) GAS CATEGORY: I3+ (28-30/37 mbar) injector bore Ø 1.95 mm GAS PRESSURE: 28-30 mbar (butane G30) - 37 mbar (propane G31) (BE , CH , CY , CZ , ES , FR , GB , GR , IE , IT , LT , PT , SI , SK , AL , MK , TR ) GAS CATEGORY: I3B/P (30 mbar) injector bore Ø...
- Page 17 Models: 6070-…PRO The maximum system power output for each gas category (LPG or METHANE) is approximately: 20 kW/h LPG (G30-G31) GAS CATEGORY: I3+ (28-30/37 mbar) injector bore Ø 2.25 mm pilot injector bore 1xØ 0.22mm GAS PRESSURE: 28-30 mbar (butane G30) - 37 mbar (propane G31) (BE , CH , CY , CZ , ES , FR , GB , GR , IE , IT , LT , PT , SI , SK , AL , MK , TR ) GAS CATEGORY: I3B/P (30 mbar) injector bore Ø...
- Page 18 Models: 8070-…PRO The maximum system power output for each gas category (LPG or METHANE) is approximately: 22 kW/h LPG (G30-G31) GAS CATEGORY: I3+ (28-30/37 mbar) injector bore Ø 2.35 mm pilot injector bore 1xØ 0.22mm GAS PRESSURE: 28-30 mbar (butane G30) - 37 mbar (propane G31) (BE , CH , CY , CZ , ES , FR , GB , GR , IE , IT , LT , PT , SI , SK , AL , MK , TR ) GAS CATEGORY: I3B/P (30 mbar) injector bore Ø...
-
Page 19: Lighting
LIGHTING IMPORTANT Before turning on the oven, check all connections and gas connections. Do not lean over the oven when lighting the gas and keep face and body away from the opening of the oven. When lighting, the door must NOT be closed, the opening of the oven must be open. -
Page 20: Lighting Models: 6050
LIGHTING MODELS: 6050-…PRO 1. To light the oven burner, press and turn the control knob counter-clockwise to the high flame symbol. 2. While holding down the control knob, simultaneously press the ignition button to light the burner. N.B. Lighting the burner for the first time, or after it has cooled down, may require several attempts due to air in the gas supply line. -
Page 21: Lighting Models: 6070
LIGHTING MODELS: 6070-…PRO, 8070-…PRO (with pilot light) 1. To ignite the pilot light, press and turn the control knob to the spark symbol. 2. While holding down the control knob, simultaneously press the ignition button to ignite the pilot light. N.B. - Page 22 CAUTION: If the flame does not ignite on all models during the ignition phase, release the control knob and return it to the zero (OFF) position, wait a few minutes to allow any unburned gas to disperse into the air and repeat the lighting procedure.
-
Page 23: Troubleshooting
TROUBLESHOOTING IGNITION FAILURE or MALFUNCTION troubleshooting IGNITER: if this does not operate, the burner flame will not ignite. Check the condition of the igniter batteries (1.5V AA), if flat or show signs of oxidation, replace them. For extended periods of oven inactivity, it is advisable to remove the battery in order to prevent malfunctions or damage to the igniter itself. - Page 24 BURNER: may result in flashbacks or partial ignition. If there are flame returns, immediately close the gas supply (cylinder or domestic line) and turn off the fire. Probably the venturi tube has obstructions that must be removed, even simple cobwebs can compromise its operation. If the flame front does not burn completely along the entire length of the burner, as well as not heating adequately, small pops or flashbacks may occur.
-
Page 25: Technical And Safety Notes
TECHNICAL AND SAFETY NOTES CAUTION: DANGER OF BURNS. VERY HOT PARTS DURING OPERATION OF THE APPLIANCE. WEAR PPE (gloves or similar) TO PREVENT ACCIDENTS AND BURNS. Even the door handle, despite being made of silicone, may scald after prolonged use of the oven when not handled using gloves. page 25... - Page 26 Models: 6050-…PRO MAX. POWER OUTPUT: 16kW CONSUMPTION: (1164 g/h → LPG) --- (1525 dm³/h → NG) Ø INJECTOR CATEGORY I3+ (28-30/37 mbar) 1.95 mm CATEGORY I3B/P (30 mbar) 1.95 mm CATEGORY I3B/P (50 mbar) 1.70 mm 28-30 p (mbar) ...
- Page 27 Models: 6070-…PRO MAX. POWER OUTPUT: 20kW CONSUMPTION: (1455 g/h → LPG) --- (1906 dm³/h → NG) Ø INJECTOR Ø PILOT INJECTOR CATEGORY I3+ (28-30/37 mbar) 2.25 mm 1x0.22 mm CATEGORY I3B/P (30 mbar) 2.25 mm 1x0.22 mm CATEGORY I3B/P (50 mbar) 1.95 mm 1x0.22 mm 28-30...
- Page 28 Models: 8070-…PRO MAX. POWER OUTPUT: 22kW CONSUMPTION: (1601 g/h → LPG) --- (2096 dm³/h → NG) Ø INJECTOR Ø PILOT INJECTOR CATEGORY I3+ (28-30/37 mbar) 2.35 mm 1x0.22 mm CATEGORY I3B/P (30 mbar) 2.35 mm 1x0.22 mm CATEGORY I3B/P (50 mbar) 2.05 mm 1x0.22 mm 28-30...
- Page 29 EXAMPLE OF DATA PLATE (the shape may change while retaining the same information) DISPOSAL INFORMATION: AT THE END OF ITS LIFE CYCLE, THE PRODUCT MUST BE TAKEN TO A SUITABLE COLLECTION POINT FOR IRON, ELECTRICAL OR ELECTRONIC WASTE. page 29...
