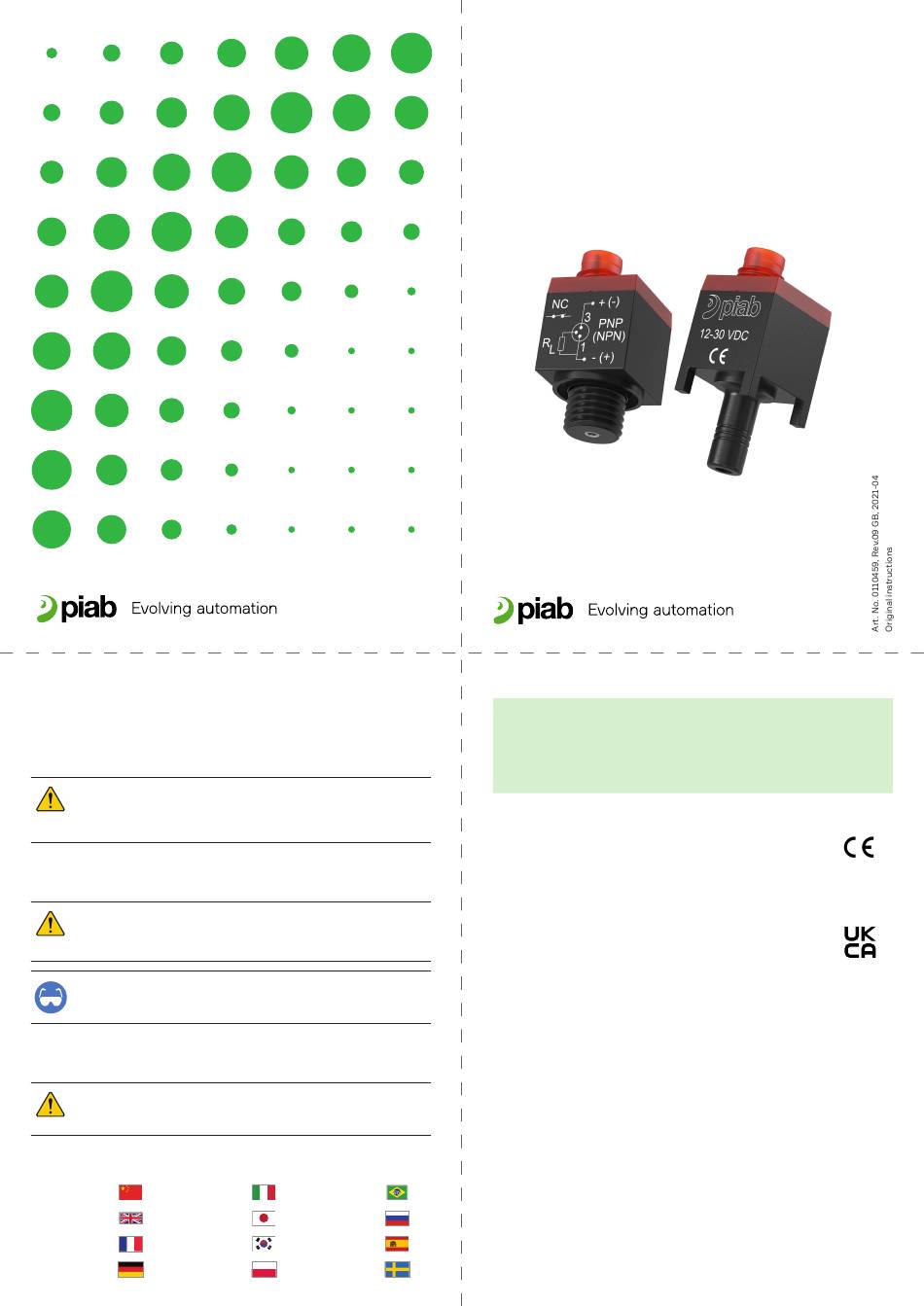

PIAB VS4015 Manual

Safety
This section should be studied extra carefully before the product are put into
use. Take careful note of all warning signs.
Ensure that the components are properly secured. Regularly check that
connections are in good working order, as high cycles or vibrations may cause
them to loosen.
Warning!
Any leakage must be contained and properly treated in case of usage
to sense pressure in processes handling hazardous substances and/
or gases.
There is a risk that objects are ejected if greater pressure is used than the
product can withstand. Ejection of objects can cause personal injuries,
damage the product and cause application failures.
Warning!
Make sure that the pressure used when operating the vaccum switch
is within the specified range.
Wear eye protection
The intended voltage range which the vacuum switch is designed and
approved for is 12-30 VCD. If the switch is used outside of that range there is
a risk of damage of the product, and/or application failure.
Warning!
Make sure that the voltage range used when operating the vaccum
switch is within the specified range (12-30 VDC).
This manual is available in the following languages on piab.com:
CHINESE ITALIAN
ENGLISH JAPANESE
FRENCH KOREAN
GERMAN POLISH
Manufacturer
Piab AB
P.O. Box 4501
SE-18304 TÄBY
SWEDEN
PORTUGUESE
RUSSIA
SPANISH
SWEDISH
Manual
Vacuum switch

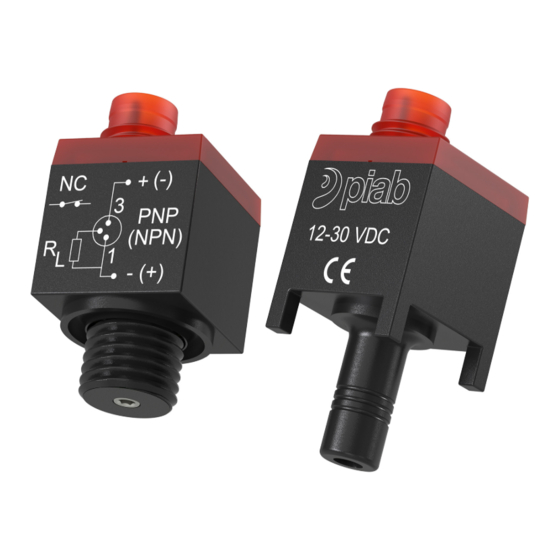

VS4015, VS4016
About VS4015, VS4016
0110245 Vacuum switch VS4015 30 -kPa
0110246 Vacuum switch VS4015 50 -kPa
0110247 Vacuum switch VS4015 70 -kPa
0110248 Vacuum switch VS4016 30 -kPa
0110249 Vacuum switch VS4016 50 -kPa
0110250 Vacuum switch VS4016 70 -kPa
are in conformity with the following European directives:
•
Electromagnetic Compatibility (EMC) Directive 2014/30/EU
- EN/(IEC) 61000-6-2:2005
- EN/(IEC) 61000-6-4:2007+A1
•
RoHS2 Directive (2011/65/EU)
and the UK legislations:
•
Electromagnetic Compatibility Regulations 2016
- BS EN/(IEC) 61000-6-2:2005
- BS EN/(IEC) 61000-6-4:2007+A1
•
The Restriction of the Use of Certain Hazardous Substances in Electrical
and Electronic Equipment Regulations 2012
Intended use
• For professional use only.
• The safety instructions shall be followed.
• The product is used to sense pressure in vacuum systems.
• The product shall be used in environments within the product's
specifications and certifications.
•
The product shall be installed in accordance to installation instructions.
Misuse
• Do not install or operate the product if it is damaged.
• The product shall not be pressurized outside of specification.
• The product shall not be used as standalone safety system to fulfil
international lifting norms.
•
Using electrical voltage outside specification can cause equipment
damage and/or application failure.
