Manual
Vacuum switch
VS4128
Safety
This section should be studied extra carefully before the product are put into
use. Take careful note of all warning signs.
Ensure that the components are properly secured. Regularly check that
connections are in good working order, as high cycles or vibrations may cause
them to loosen.
Warning!
Any leakage must be contained and properly treated in case of usage
to sense pressure in processes handling hazardous substances and/
or gases.
There is a risk that objects are ejected if greater pressure is used than the
product can withstand. Ejection of objects can cause personal injuries,
damage the product and cause application failures.
Warning!
Make sure that the pressure used when operating the vaccum switch
is within the specified range.
Wear eye protection
The intended voltage range which the vacuum switch is designed and
approved for is 12-30 VCD. If the switch is used outside of that range there is
a risk of damage of the product, and/or application failure.
Warning!
Make sure that the voltage range used when operating the vaccum
switch is within the specified range (12-30 VDC).
This manual is available in the following languages on piab.com:
CHINESE
ITALIAN
ENGLISH
JAPANESE
FRENCH
KOREAN
GERMAN
POLISH
PORTUGUESE
RUSSIA
SPANISH
SWEDISH

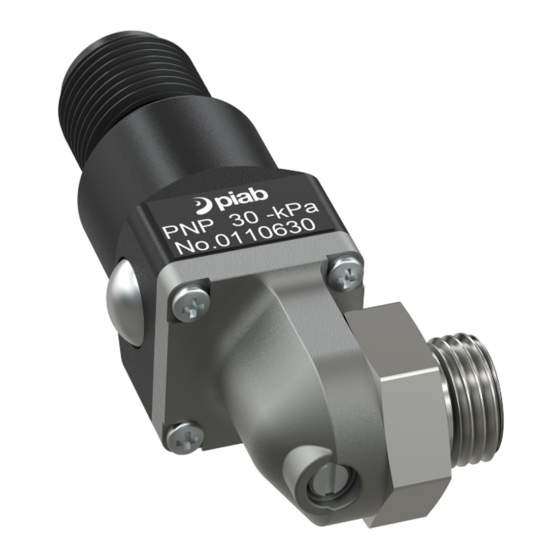

About VS4128
0110630 Vacuum switch VS4128 30 -kPa, M12 PNP NO
0110631 Vacuum switch VS4128 50 -kPa, M12 PNP NO
0124450 Vacuum switch VS4128 50 -kPa, M12 NPN NO
0213570 Vacuum switch VS4128 40 -kPa M12 PNP NO
0213664 Vacuum switch VS4128 40 -kPa M12 NPN NO
are in conformity with the following European directives:
Electromagnetic Compatibility (EMC) Directive 2014/30/EU
- EN/(IEC) 61000-6-2:2005
- EN/(IEC) 61000-6-4:2007+A1
RoHS2 Directive (2011/65/EU)
and the UK legislations:
Electromagnetic Compatibility Regulations 2016
- BS EN/(IEC) 61000-6-2:2005
- BS EN/(IEC) 61000-6-4:2007+A1
The Restriction of the Use of Certain Hazardous Substances in Electrical
and Electronic Equipment Regulations 2012
Intended use
For professional use only.
The safety instructions shall be followed.
The product is used to sense pressure in vacuum systems.
The product shall be used in environments within the product's
specifications and certifications.
The product shall be installed in accordance to installation instructions.
Misuse
Do not install or operate the product if it is damaged.
The product shall not be pressurized outside of specification.
The product shall not be used as standalone safety system to fulfil
international lifting norms.
Using electrical voltage outside specification can cause equipment
damage and/or application failure.
Manufacturer
Piab AB
P.O. Box 4501
SE-18304 TÄBY
SWEDEN
