AQUOR V1+ Install Manual

House hydrant
Hide thumbs Also See for V1+:
Table of Contents

Advertisement

Quick Links

Download this manual

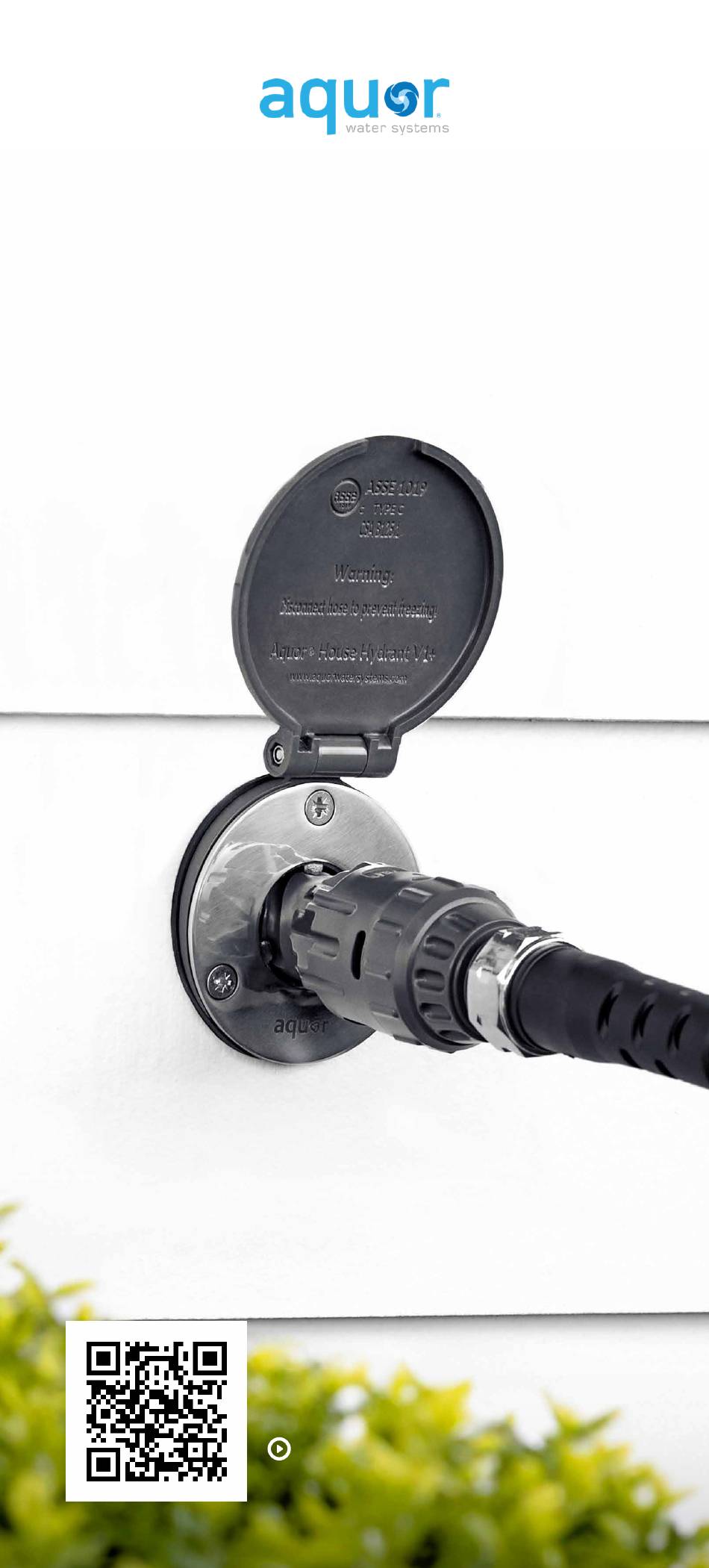

Aquor
House Hydrant V1+
®
INSTALL GUIDE
Scan to
watch install video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1+ and is the answer not in the manual?

Questions and answers

Related Manuals for AQUOR V1+

Summary of Contents for AQUOR V1+

  • Page 1 Aquor House Hydrant V1+ ® INSTALL GUIDE Scan to watch install video...

  • Page 2: Table Of Contents

    Contents Technical Specs Flow Rate Parts Description Helpful Tools and In the Box Installation Operation Care and Maintenance Troubleshooting Warranty and Contact Important Notes • Please read fully and carefully before installing. Subject to change without notice. • We recommend installing with an access panel or something similar for plumbing access.

  • Page 3: Technical Specs

    Aquor House Hydrant V1+ ® TECHNICAL SPECS ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED Overall Length (B) distance from exterior wall to inlet 1.5" " [72 mm] " [79 mm] Use 1 - " drill bit for entry hole. Mounting holes, #10 screws.
  • Page 4 Aquor House Hydrant V1+ ® TECHNICAL SPECS ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED HHP002 HHP004 Close-Couple House Hydrant V1+ 4" House Hydrant V1+ STEM LENGTH: 2" STEM LENGTH: 4" OVERALL LENGTH: 3 - 5/8" OVERALL LENGTH: 5 - 3/4"...
  • Page 5 Aquor House Hydrant V1+ ® TECHNICAL SPECS ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED HHP006 HHP008 6" House Hydrant V1+ 8" House Hydrant V1+ STEM LENGTH: 6" STEM LENGTH: 8" OVERALL LENGTH: 7 - 3/4" OVERALL LENGTH: 9 - 3/4"...
  • Page 6 Aquor House Hydrant V1+ ® TECHNICAL SPECS ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED HHP010 HHP012 10" House Hydrant V1+ 12" House Hydrant V1+ STEM LENGTH: 10" STEM LENGTH: 12" OVERALL LENGTH: 11 - 3/4" OVERALL LENGTH: 13 - 3/4"...
  • Page 7 Aquor House Hydrant V1+ ® Flow Rate ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED Aquor House Hydrant V1+ HHP Series - ® / ” HOSE CONNECTION Static Pressure (PSI) www.aquorwatersystems.com (800) 458-1749...

  • Page 8: Parts Description

    Aquor House Hydrant V1+ ® PARTS DESCRIPTION ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED Hydrant Debris Cover Hose Connector /2" NPT Inlet Debris Cover Gasket Connector O-Rings Inlet Spring Debris Cover Wedge Connector Body Main Valve O-Ring Debris Cover Nut &...

  • Page 9: Helpful Tools And In The Box

    PEX Plumbing Adapter inlets, mounting blocks, and more. (Depending on your plumbing you may need a plumbing Scan to shop accessories adapter or an Aquor® PEX Inlet ) Teflon Tape In the Box Debris Cover x3 #10 Mounting Screws...

  • Page 10: Installation

    Aquor House Hydrant V1+ ® INSTALLATION ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED Find vertically level install surface and turn off water Install rear inlet within a heated space to ensure freeze protection Tip: Enlarge existing hole with a dowel 1 - 1/2"...
  • Page 11 Do not apply teflon tape or any kind of sealant to hydrant body threads Copper Plumbing Standard Aquor® 1/2" NPT inlet + adapter Attach adapter to inlet using PEX Plumbing - Crimp teflon tape Aquor® PEX Crimp Inlet...
  • Page 12 ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED Check for leaks PEX Plumbing - Expansion Aquor® PEX Expansion Inlet Scan to watch tip: Aquor® Elbow Inlets can rotate backwards up to 360° from the hand-tightened position while maintaining a water- tight seal.

  • Page 13: Operation

    Aquor House Hydrant V1+ ® OPERATION ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED Attach connector to hose Align nibs with connector, push and twist to connect Operation Connect straight on, be careful not to snag O-Rings...

  • Page 14: Care And Maintenance

    Aquor House Hydrant V1+ ® CARE AND MAINTENANCE ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED Aquor hydrants leave the factory fully ® tested and operational. They are treated with lubricant where needed. The hydrant requires no scheduled maintenance to provide a long operational life.

  • Page 15: Troubleshooting

    Aquor House Hydrant V1+ ® TROUBLESHOOTING ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED No water flow when connected Try depressing the hydrant stem with your thumb or other blunt object to test for pressure against the stem.

  • Page 16: Warranty And Contact

    If you ever have an issue, contact us, and we will make it right. Connector won't stay plugged in Aquor offers a limited lifetime warranty on all Ensure water pressure is not too low. The hydrant stainless steel products and parts and 5 years uses water pressure to seal, and is designed for on all polymer components.

This manual is also suitable for:

Hhp002Hhp004Hhp006Hhp008Hhp010Hhp012
