AQUOR House Hydrant V1+ Quick Start Manual

Aquor House Hydrant V1+
®
ASSE 1019C / ASME A112.18.1 / CSA B125.1 / AS/NZS3718 CERTIFIED
Overview
Aquor House Hydrant V1+
The Aquor House Hydrant is a flush-mounted
hydrant with twist-lock connection system designed
for outdoor use.
The hydrant is intended to be installed in the exterior
walls of homes and buildings. Upon disconnection, a
small amount of water self-drains from the outlet. The
Aquor hose connector has a built-in vacuum breaker
for code approved anti-siphon protection.
FEATURES & BENEFITS
• Instant water access in less than a second,
even under full water pressure.
• Hydrant automatically self-drains upon
disconnection to provide freeze protection.
• Stainless steel operating rod and pressure
closed valve provide zero-maintenance
reliability for years.
• Robust O-ring connection system ensures a
reliable leak-proof seal, even at high water
pressures.
• Low-profile design sits flush against wall.
• Hydrant comes standard with 1/ 2 " NPT (f) inlet.
Optional rotatable 90° elbow inlets available.
• Attach any 3/ 4 " accessory (e.g. water timers,
splitters, regulators) to end of hose connector.
• Hose connector contains vacuum breaker for
code approved anti-siphon protection.

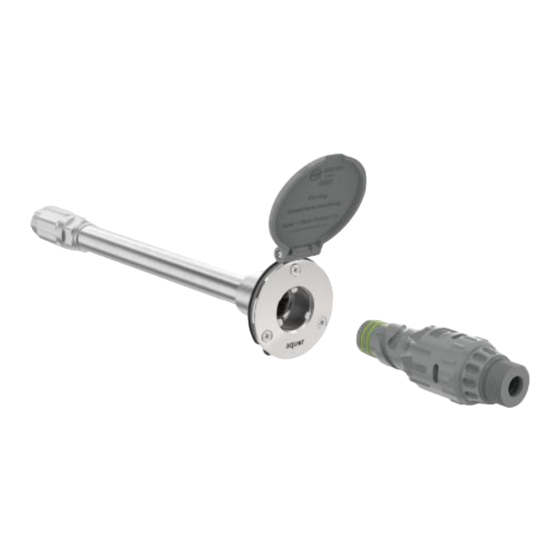

INCLUDED IN THIS KIT
x1 Stainless Steel Hydrant
x1 Hose Connector (CN-VB2)
x1 Debris Cover
x3 #10 1.5" Mounting Screws
Read this entire instruction sheet before installing to ensure proper
installation. The information in this manual is subject to change
without notice.
Hydrant can only provide freeze protection when disconnected and
allowed to drain.
Intended for irrigation use and outdoor watering. Shall not be
subjected to more than (12) hours of continuous water pressure as
directed by ASSE code requirements.
Installation shall be in accordance with AS/NZS 3500 series of
standards.
Installation must comply with local codes and ordinances.
Please leave this manual with the property owner after completing the
hydrant installation.
