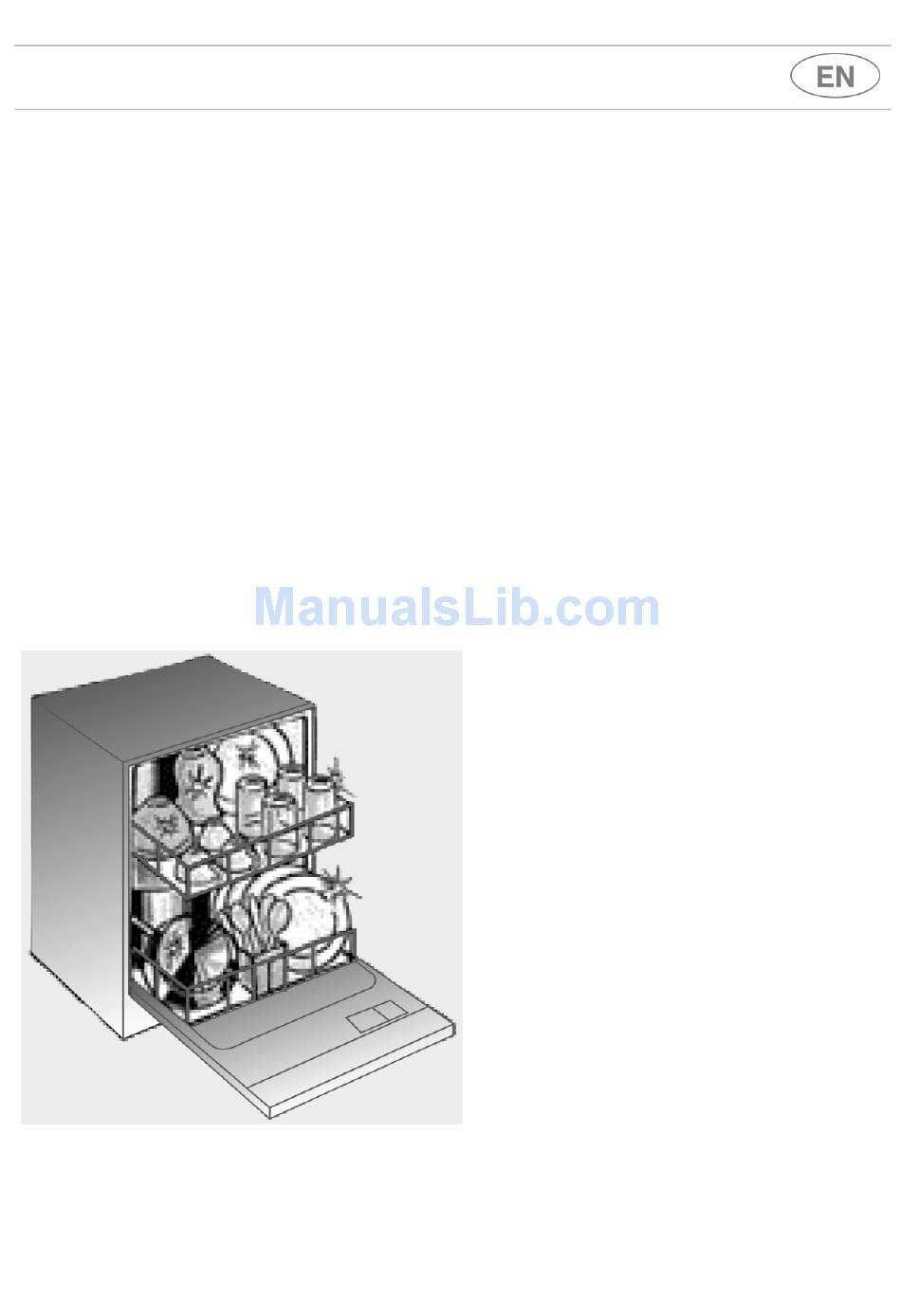

- Page 1 INSTRUCTION MANUAL DISHWASHER...
-
Page 2: Table Of Contents
Contents 1. Safety and operating instructions __________________________ 26 2. Installation and hook-up _________________________________ 28 2.1 Water supply connection _____________________________________________________ 28 2.2 Electrical connection ________________________________________________________ 29 3. Description of the controls _______________________________ 30 3.1 Front panel ________________________________________________________________ 30 3.2 Washing programs__________________________________________________________ 33 4. -
Page 3: Safety And Operating Instructions
1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. -
Page 4: Safety Instructions
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A QUALIFIED TECHNICIAN. THE APPLIANCE IS INTENDED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO COME NEAR OR PLAY WITH THE DISHWASHER. -
Page 5: Installation And Hook-Up
Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. -
Page 6: Electrical Connection
Installation instructions The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply. -
Page 7: Description Of The Controls
3. Description of the controls Front panel All the dishwasher controls are grouped on the front panel, which is of different shape depending on the model. WASHING PROGRAM SELECTOR SELECTED PROGRAM INDICATOR DISC (certain models only) ON/OFF BUTTON ECO (45°C-55°C) PROGRAM BUTTON (depending on models) POWER ON LIGHT SALT WARNING LIGHT (certain models only) RINSE AID WARNING LIGHT (certain models only) - Page 8 TABLE OF PROGRAMS 45°C (6 program models) TYPE AND DEGREE CYCLE SWITCH BUTTON OF DIRT ON DISHES PANS AND DISHES SOAK PENDING COMPLETION OF THE LOAD VER Y DIRTY PANS AND INTENSIVE DISHES, EVEN WITH 65°C DRIED-ON DIRT NORMAL PANS AND DISHES WITH 60°C NORMAL DIRT NORMAL...
- Page 9 TABLE OF PROGRAMS 45°C (7 program models) TYPE AND DEGREE CYCLE SWITCH BUTTON OF DIRT ON DISHES PANS AND DISHES SOAK PENDING COMPLETION OF THE LOAD VER Y DIRTY PANS AND INTENSIVE DISHES, EVEN WITH 65°C DRIED-ON DIRT NORMAL PANS AND DISHES WITH 60°C NORMAL DIRT (*) EN50242...
-
Page 10: Washing Programs
User instructions The washing cycle will not take place if the dishwasher door is left open or not properly closed. TABLE FOR CERTIFICATION BODIES Reference standard Reference program Load Type of detergent Amount of detergent Rinse aid setting Washing programs Before starting a washing program make sure that: The water supply tap is open. - Page 11 TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT Always try to run the dishwasher fully loaded . • Do not wash the dishes in running water. • Use the washing program that is most appropriate for each type of load. •...
-
Page 12: Operating Instructions
User instructions 4. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: Adjust the water softening system; • Add the regenerating salt; • Add the rinse aid and detergent. • Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which tend to become dull over time. - Page 13 ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an device for the user to adjust the water softening system according to the hardness of the water supply. According to the machine model, the selector which acts on the adjustment may be located: inside the plastic locking ring located on the right-hand side, inside the dishwasher;...
-
Page 14: Using The Rinse Aid And Detergent Dispensers
User instructions Using the rinse aid and detergent dispensers The detergent and rinse aid dispensers are situated on the inner part of the door: the detergent dispenser is on the left, and the rinse aid dispenser is on the right. With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent dispenser . - Page 15 Use only detergents specially formulated for dishwashers. For optimal washing results it is • important to use a good quality detergent. The detergent packs must be sealed and stored in a dry place to prevent the formation of • lumps which may negatively affect washing results. Once opened the detergent packs should not be kept for too long, otherwise the detergent loses its effectiveness.
-
Page 16: General Warnings And Recommendations
User instructions General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading . There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account. -
Page 17: Using The Baskets
User instructions Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom. - Page 18 User instructions CUTLERY BASKET This varies in shape according to the model and features either a single compartment or separate compartments. The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
- Page 19 ADJUSTING THE UPPER BASKET The upper basket can be adjusted in two positions, according to the user’s needs and according to the height of the dishes in the lower basket. Proceed as follows Pull-out version: pull out the right-hand basket guide; •...
-
Page 20: Cleaning And Maintenance
User instructions 5. Cleaning and maintenance Before carrying out any work, always disconnect the appliance from the electrical power supply. General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. - Page 21 CLEANING THE FILTER UNIT It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove • the filter, grip the tabs, turn them anticlockwise and lift upwards; push the centre filter D from the underside to remove it from the micro-filter: •...
- Page 22 User instructions TROUBLESHOOTING MINOR PROBLEMS In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: the dishwasher is connected to the electrical power supply; • there is no power failure; •...
- Page 23 TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel Height Capacity Water supply pressure Electrical characteristics User instructions 597 ÷ 599 mm Free standing: 600 mm Semi-integrated: 590 mm Free standing from 850 mm to 870 mm Semi-integrated from 820 mm to 870 mm Standard place settings min.
- Page 24 Solosualcunimodelli Certainmodelsonly Seulementsurcertainsmodèles nurbeieinigeModellen Sóloenalgunosmodelos alleenindienvantoepassing...
- Page 25 SUPERFICIEINTERNA SURFACEINTERNE INNERSURFACE INNENFLACHE LATOSUPERIORE BORDSUPERIEURE UPPEREDGE OBERKANTE...
