Summary of Contents for Diamond E65/PLCD7T

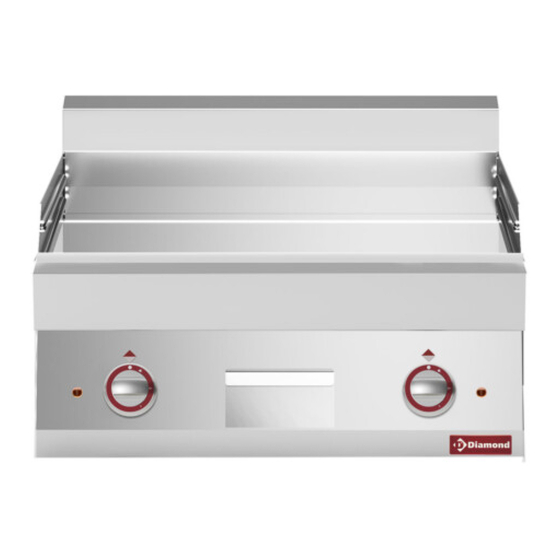

- Page 1 02/2009 Mod:E65/PLCD7T Production code: 65/70 FTE/CR...
- Page 2 Code 252.104.12N ELECTRIC FRY-TOPS 65/40 FTE 70/40 FTE 70/40 FTE-T 90/40 FTE 90/40 FTET 110/50 FTE 65/40 FTRE 70/40 FTRE 70/40 FTRE-T 90/40 FTRE 90/40 FTRET 110/50 FTRE 65/40 FTES 70/40 FTES 70/40 FTES-T 90/40 FTE-CR 90/40 FTE-CRT 110/50 FTE-CR 65/40 FTE-CR 70/40 FTE-CR 70/40 FTE-CR-T...
- Page 3 INDEX Paragraph Installation instructions Compliance with EEC directives Installation drawings Wiring diagrams Electrical specifications Technical data Preliminary installation instructions Regulations, technical rules and general specifications Installation 2.2.1 Electrical connection 2.2.1.1 Equipotential Paragraph User instructions Start-up Operating Instructions - Start-up and switching-off Maintenance, cleaning and care Instruction for the user separate waste collection-recycling...
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS CONFORMITY WITH EEC DIRECTIVES REMARK: The electric fry tops are made in compliance with the basic requirements envisaged by EEC directives, in accordance with EEC Directive 73/23 on low voltage , EEC Directive 89/336 on electromagnetic compatibility and are marked CE according to the EEC Directive 93/68. - Page 5 ELECTRICAL SPECIFICATIONS: 65/70FTE-CR 65/70 FTE 65/40 FTE-CR 65/40 FTE 65/70 FTRE-CR Model 65/70 FTRE 65/40 FTRE-CR 65/40 FTRE 65/70 FTRRE 65/70 FTES 65/40 FTES 65/70 FTRRE-CR Rated voltage 400V Total power kW Power cable H05RN-F H05RN-F H05RN-F H05RN-F Cross section 5 x 1,0 mm 5 x 1,5 mm 5 x 1,0 mm...
- Page 6 70/70 FTE 70/40 FTE 70/70 FTE-CR 70/70 FTRE 70/40 FTE-CR 70/40 FTRE 70/70 FTRE-CR Model 70/70 FTRRE 70/40 FTRE-CR 70/40 FTES 70/70 FTRRE-CR 70/70 FTES Rated voltage 400V Total power kW Power cable H05RN-F H05RN-F H05RN-F H05RN-F Cross section 5 x 1,0 mm 5 x 1,5 mm 5 x 1,0 mm 5 x 1,5 mm...
- Page 7 90/40 FTET 90/80 FTET 90/80 FTE-CRT 90/40 FTE-CR Model 90/40 FTRET 90/80 FTRET 90/80FTRE-CRT 90/40 FTRE-CR 90/80FTRRET 90/80FTRRE-CRT 400V Rated voltage Total power kW 13,2 13,2 Power cable H05RN-F H05RN-F H05RN-F H05RN-F Cross section 5 x 1,5 mm 5 x 1,5 mm 5 x 2,5 mm 5 x 2,5 mm Dimensions mm...
- Page 8 PRELIMINARY INSTALLATION INSTRUCTIONS The fry-top must be positioned in a well-aired room, if possible under a hood to remove cooking steam thoroughly. Before starting the appliance, remove all protective film; thoroughly clean the surfaces with a soft cloth, lukewarm water and detergent, so as to remove all anti-rust products applied during the manufacturing stage, then dry with a clean cloth.
- Page 9 2.2.1 Electrical connection 1) The electric fry tops are designed to operate off 400 VAC+3N voltage. 2) The connection to the mains must be carried out through a suitably rated trip switch which has at least 3 mm between the contacts. Moreover, the mains voltage - when the appliance is working - must not exceed ±...
-
Page 10: Putting Into Operation
USERS OPERATING INSTRUCTIONS PUTTING INTO OPERATION Fy tops are appliances designed for cooking food and should be exclusively used by trained personnel following these operating instructions. Any other use of the appliance is to be considered improper and therefore dangerous. You are advised to clean carefully the griddle plates before using them for the first time. -
Page 11: Maintenance, Cleaning And Care
MAINTENANCE, CLEANING AND CARE Before carrying out any cleaning operations disconnect the power at the mains. It is recommended that the installation be checked by an authorised technician at least twice a year. For the daily cleaning of the appliance, remove the grease drawer, empty it, remove with a stripping knife or with a damp cloth the residual food and clean it carefully. - Page 12 5. INSTRUCTIONS FOR THE USER SEPARATE WASTE COLLECTION - RECYCLING In accordance with art. 13 of Legislative Decree dated July 25 , 2005, no. 151, Implementation of Directives 2002/95/EC, 2002/96/EC and 2003/108/EC, concerning the reduction in use of hazardous substances in electrical and electronic equipment, and waste disposal symbol showing a crossed-out waste container on the unit or package indicates...
