Ecolink WST-131 Instruction And User's Manual

WST-131 Panic Button
Instructions and User Manual
1. Specifications
Frequency: 319.5 MHz
Operating Temperature: 32° – 110°F (0° – 43°C)
Operating Humidity: 0 – 95% RH non-condensing
Battery: 1x CR2032 Panasonic Lithium 3V DC
Battery Life:
5 Years
Compatibility: Interlogix / GE receivers
Supervisory Interval: Approximately 60 minutes
2. Package Contents
1 x Panic Button 1 x Rope Necklace
1 x Wrist Band 1 x Pendant Inserts (2 pcs set)
1 x Belt Clip Adapter 1x Surface Mount Bracket (w/2 screws)
1 x Manual 1 x CR2032 battery (installed)

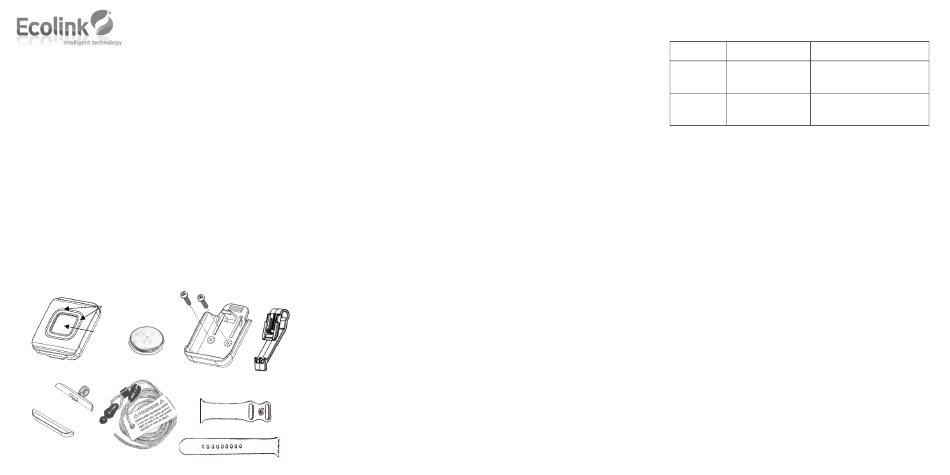

3. Component Identification
LED Ring
Button
CR2032 Battery
Panic Button
Surface Mount / Belt Clip
Pendant Inserts
(Top / Bottom)
Rope Necklace
4. Product Configuration
The RE103P can be worn or mounted in four (4 ways):
1. On a wrist using a compatible wrist band (the color of the included wrist
band may vary).
2. Around the neck as a pendant using the included pendant inserts and
snap-closure adjustable-length rope necklace (color may vary).
3. Mounted to a flat surface with the surface mount bracket and screws.
4. Worn on a belt with the surface mount bracket plus belt clip.
Note: The Surface Mount / Belt Clip accessory kit is not included and sold
separately. Compatible with any Apple Watch®-compatible wristbands.
5. Enrolling
The RE103P Panic Button supports up to three (3) different alerts or
commands to be triggered through different button presses. The button
appears as three sensor zones, each with their own unique TxID. The
learn activity should be repeated for each Zone / TxID.
When enrolling the device, it is recommended to name each zone for
easy identification and assignment to the intended action or scene.
Example: zone #1 = "PB1 ST" (panic button #1 single tap), zone #2 = "PB1
DT" (panic button #1 double tap), and zone #3 = "PB1 PH" (panic button
#1 press and hold).
To enroll the sensor, set your panel into program mode. Then go to the
Learn Sensors menu. Refer to your specific alarm panel instruction
manual for details on these menus.
To enter enrollment mode on the button, follow these steps:
1. To initiate Learn Mode, Press and Hold the panic button for
twenty (20) seconds. During this hold time, the LED will blink
three times, then remain on for 3 more seconds [Zone 3]. Do not
Wrist Band (Top and Bottom)
release the button, continue holding down the button until the
LED blinks five (5) times indicating learn mode is enabled.
2. In learn mode, press the panic button pattern for the desired
Zone.
Zone 1 Single Tap Press and Release (Once)
Zone 2 Double Tap Press and Release
(Twice, <1 second apart)
Zone 3 Press and Hold Press and Hold (5 seconds)
Then release
3. Repeat the panic button learn transmissions until the panel
recognizes the desired Zone's serial number.
Important: After the zone is recognized by the panel, be sure to assign a
zone type that is "chime only". Otherwise, the button zone will be
treated like a Door/Window open and restore and may trigger an alarm
state.
Note: Learn mode on the Panic Button will automatically end after 15
seconds of inactivity (no button press). Re-initiate learn mode as needed
until all zones are recognized by the panel.
6. Panic Button Testing
The Panic Button is designed to be used within 100 ft. (30 m) of the panel.
Test before first use, as well as weekly. The test verifies proper
communication between the sensor and the panel/receiver.
To test the Panic Button after enrollment, refer to the specific
panel/receiver documentation to place the panel into sensor test mode.
Press the button sequence for each zone to be tested, from location(s) the
Panic Button shall be used. Verify the transmission count received on the
panel is consistently 5 of 8 or better.
7. Product Operation
The RE103P Panic Button supports up to three (3) different alerts or
commands to be triggered through different button presses. The button
appears as three sensor zones, each with their own unique TxID, as
shown:
