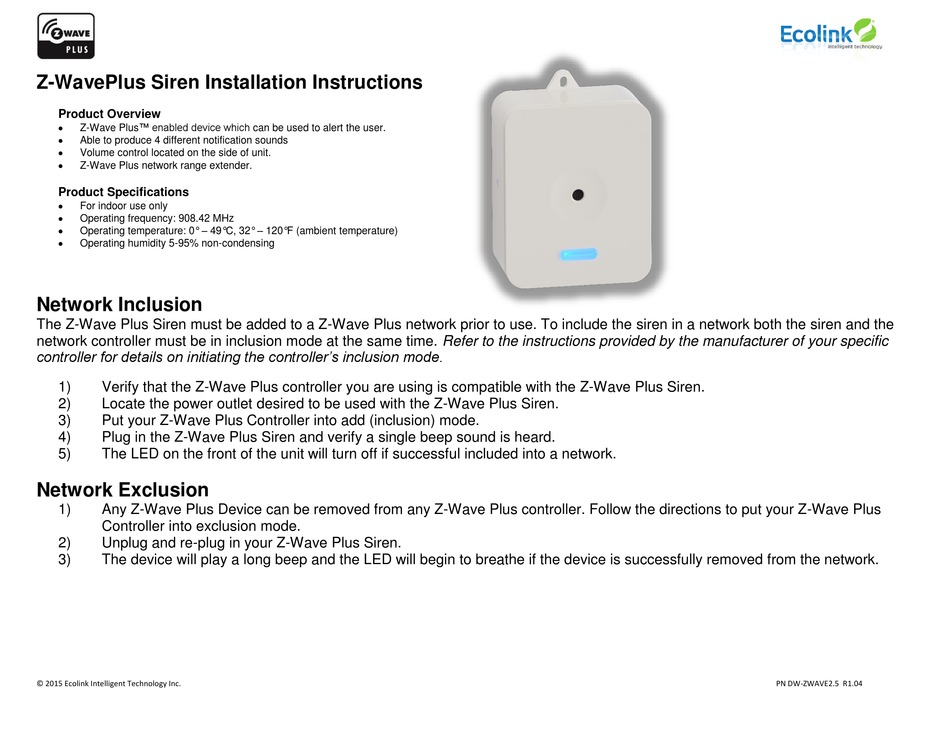

Z-WavePlus Siren Installation Instructions
Product Overview
Z-Wave Plus™ enabled device which can be used to alert the user.
Able to produce 4 different notification sounds
Volume control located on the side of unit.
Z-Wave Plus network range extender.
Product Specifications
For indoor use only
Operating frequency: 908.42 MHz
Operating temperature: 0° – 49°C, 32° – 120°F (ambient temperature)
Operating humidity 5-95% non-condensing
Network Inclusion
The Z-Wave Plus Siren must be added to a Z-Wave Plus network prior to use. To include the siren in a network both the siren and the
network controller must be in inclusion mode at the same time. Refer to the instructions provided by the manufacturer of your specific
controller for details on initiating the controller's inclusion mode.
1)
Verify that the Z-Wave Plus controller you are using is compatible with the Z-Wave Plus Siren.
2)
Locate the power outlet desired to be used with the Z-Wave Plus Siren.
3)
Put your Z-Wave Plus Controller into add (inclusion) mode.
4)
Plug in the Z-Wave Plus Siren and verify a single beep sound is heard.
5)
The LED on the front of the unit will turn off if successful included into a network.
Network Exclusion
1)
Any Z-Wave Plus Device can be removed from any Z-Wave Plus controller. Follow the directions to put your Z-Wave Plus
Controller into exclusion mode.
2)
Unplug and re-plug in your Z-Wave Plus Siren.
3)
The device will play a long beep and the LED will begin to breathe if the device is successfully removed from the network.
© 2015 Ecolink Intelligent Technology Inc.
PN DW-ZWAVE2.5 R1.04
Advertisement
Table of Contents
Related Manuals for Ecolink Z-WavePlus
Summary of Contents for Ecolink Z-WavePlus
- Page 1 Unplug and re-plug in your Z-Wave Plus Siren. The device will play a long beep and the LED will begin to breathe if the device is successfully removed from the network. © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04...
- Page 2 Factory Default The Z-Wave Plus Siren is automatically factory defaulted when removed from a Z-Wave Plus network. Please use this procedure only when the network primary controller is missing or otherwise inoperable. © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04...
- Page 3 Determine the location desired for the Z-Wave Plus Siren. STEP TWO Plug In the Siren to the outlet. Screw the Z-Wave Plus Siren in if you desire the siren to not easily be removed. Upper Jumper Lower Jumper © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04...
- Page 4 NOTIFICATION Specific Device Class SPECIFIC_TYPE_NOTIFICAT ION_SENSOR COMMAND_CLASS_ZWAVEPLUS_INFO COMMAND_CLASS_VERSION COMMAND_CLASS_MANUFACTURER_SPECIFIC COMMAND_CLASS_DEVICE_RESET_LOCALLY COMMAND_CLASS_POWERLEVEL Command Classes COMMAND_CLASS_ASSOCIATION COMMAND_CLASS_ASSOCIATION_GRP_INFO COMMAND_CLASS_MULTICHANNEL COMMAND_CLASS_MULTICHANNEL_ASSOCIATION COMMAND_CLASS_BASIC COMMAND_CLASS_FIRMWARE_UPDATE_MD Manufacturer ID MFG_ID_ECOLINK ( 0x014A ) Product Type 0x05 Product ID 0x0A © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04...
- Page 5 This siren also supports Network Wide Inclusion such that the siren can be included into the Z-Wave network over the mesh network and not directly near the main controller. This mode is automatically activated after regular inclusion was not successful © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04...
- Page 6 Warranty Ecolink Intelligent Technology Inc . warrants that for a period of 3 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized modifications.
