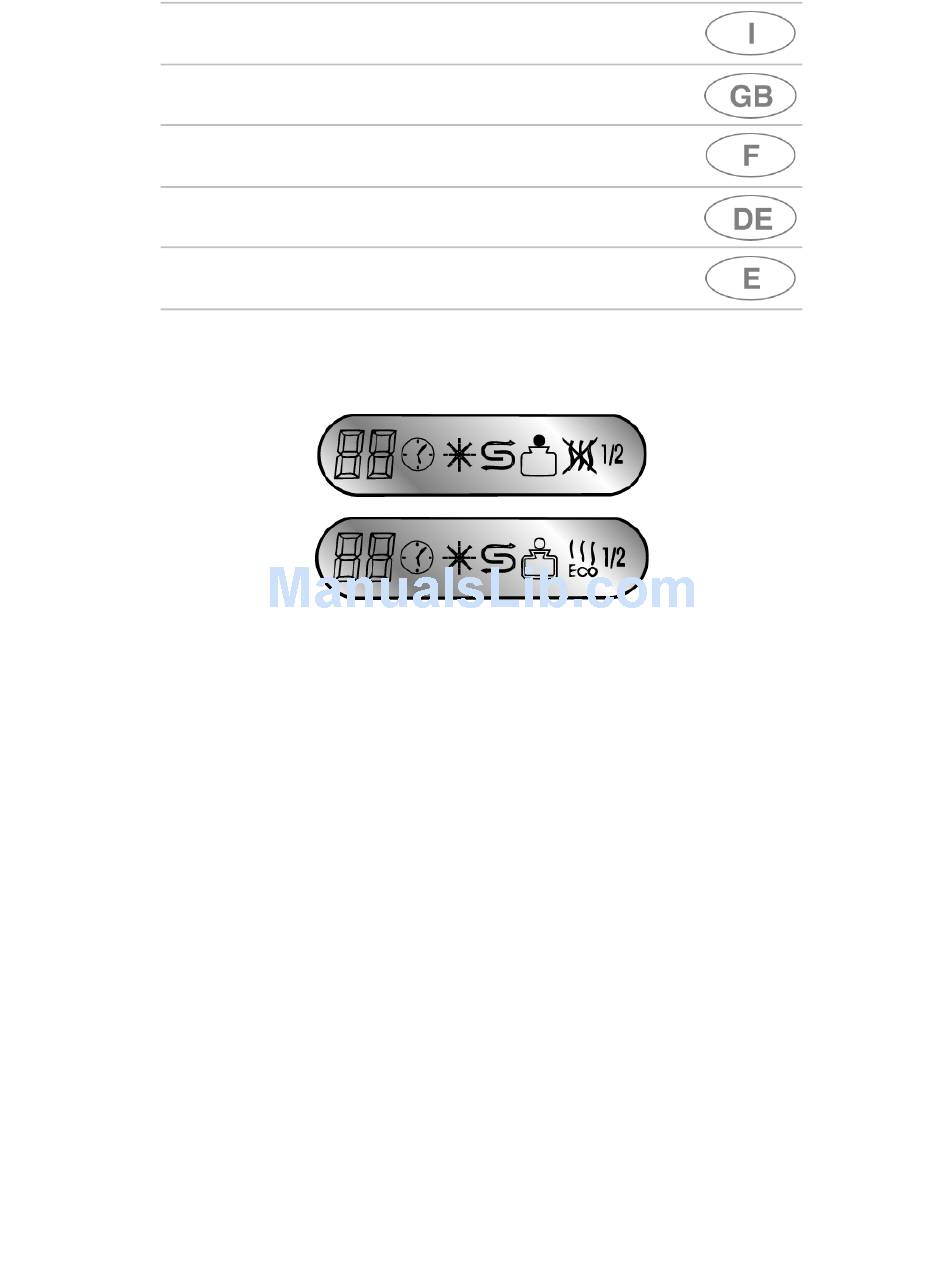

Page 1 MANUALE D’USO INSTRUCTION MANUAL NOTICE D’UTILISATION GEBRAUCHSANWEISUNG MANUAL DE USO LAVASTOVIGLIE DISHWASHER LAVE-VAISSELLE GESCHIRRSPÜLER LAVAVAJILLAS...
Page 2 ITALIANO ENGLISH FRANÇAIS DEUTSCH ESPAÑOL 3-31 33-61 63-91 93-121 123-151...
Page 3: Table Of Contents
Contents Safety and operating instructions __________________________34 Installation and hook-up _________________________________37 Description of the controls________________________________39 Operating instructions ___________________________________44 Cleaning and maintenance _______________________________56 Troubleshooting _______________________________________60 Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly.
Page 4: Safety And Operating Instructions
Safety instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE.
Page 5: Safety Instructions
Safety instructions • AFTER INSTALLATION, THE PLUG MUST REMAIN ACCESSIBLE. • IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT REPLACED BY A QUALIFIED TECHNICIAN. • AFTER REPLACING THE POWER CORD, MAKE SURE THAT THE TERMINAL BLOCK COMPARTMENT COVER IS CLOSED CORRECTLY. IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT...
Page 6 Safety instructions DO NOT LEAN OR SIT ON THE OPEN DOOR: THIS MAY CAUSE THE DISHWASHER TO OVERTURN. DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT IMMEDIATELY AFTER THE END OF A WASHING PROGRAM. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.
Page 7: Installation And Hook-Up
Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.
Page 8 Installation instructions The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply.
Page 9: Description Of The Controls
User instructions 3. Description of the controls 3.1 Upper panel All the dishwasher controls are grouped on the upper panel. ON/OFF BUTTON PROGRAM SELECTION BUTTON DELAYED START BUTTON ECONOMY PROGRAM SELECTION BUTTON NO-DRYING CYCLE BUTTON (on some models only) ECO DRYING CYCLE BUTTON (on some models only) ½...
Page 10 User instructions 3.2 Information display The dishwasher is equipped with a practical DISPLAY which provides information on the programmed dishwasher functions. Models with “NO-DRYING CYCLE” function CURRENT PROGRAM INFORMATION (remaining time indication and warnings for the most common problems) DELAYED START INDICATOR LIGHT RINSE AID WARNING LIGHT REGENERATING SALT WARNING LIGHT ECONOMY PROGRAM SELECTION LIGHT...
Page 11 User instructions DISABLING THE ACOUSTIC DEVICE AND ADJUSTING THE FILLING SYSTEM The dishwasher’s electronic control system allows you to: • disable the acoustic device which confirms all dishwasher programming and operating steps; • adapt the dishwasher’s water filling system to the mains water pressure.
Page 12 User instructions 3.3 Washing programs The dishwasher is equipped with a control panel and an INFORMATION DISPLAY, described in chapter "3. Description of the controls", from which it is possible to carry out all the power switch-on, switch-off and programming operations. Before starting a washing program make sure that: •...
Page 13 User instructions IMPORTANT: at the end of the program remember to deactivate the function to ensure the next wash is not also carried out in half load mode by mistake. A cutlery basket will be inserted in the basket used for the "half load" basket, while the other basket will be left empty.
Page 14: Operating Instructions
User instructions 4. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: • Adjust the water softening system; • Add the regenerating salt; • Add the rinse aid and detergent. 4.1 Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which...
Page 15 User instructions • Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system. • When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
Page 16 User instructions Programming procedure: • press the PROGRAM SELECTION (2) and DELAYED START (3) buttons simultaneously for 3 seconds until the DISPLAY (7) shows the symbol “H”; • press the DELAYED START button (3) to modify the parameter; • press the PROGRAM SELECTION button (2) to exit from the procedure.
Page 17 User instructions 4.2 Using the rinse aid and detergent dispensers detergent rinse dispensers are situated on the inner part of the door: the detergent dispenser is on the left, and the rinse aid dispenser is on the right. With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent dispenser.
Page 18 User instructions ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.
Page 19 User instructions • Use only detergents specially formulated for dishwashers. For optimal washing results it is important to use a good quality detergent. • The detergent packs must be sealed and stored in a dry place to prevent the formation of lumps which may negatively affect washing results.
Page 20 User instructions 4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.
Page 21 User instructions Items which are not dishwasher-safe: • Wooden dishes, pots or pans: these may be damaged by the high washing temperatures. • Handcrafted items: these are rarely suitable for washing in a dishwasher. The relatively high water temperatures and the detergents used may damage them.
Page 22 User instructions 4.4 Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.
Page 23 User instructions CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
Page 24 User instructions LOADING THE UPPER BASKET Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels.
Page 25 User instructions Push-button version: • pull out the basket to its limit position and pull the right side upwards. At this point it is possible to load larger sized plates into the lower basket. • To return to the original position, pull out the upper basket again and press the release lever.
Page 26: Cleaning And Maintenance
User instructions 5. Cleaning and maintenance Before carrying out any work, always disconnect the appliance from the electrical power supply. 5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces.
Page 27 User instructions CLEANING THE FILTER UNIT • It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; • push the centre filter D from the underside to remove it from the micro-filter: •...
Page 28: Troubleshooting
User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE: • Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. •...
Page 29 User instructions If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).
Page 30: Troubleshooting
User instructions 6. Troubleshooting The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. In the event of a fault or malfunction, before calling the After-sales service centre, we suggest that you first consult the troubleshooting guide below.
Page 31 User instructions FAULT The dishwasher fails to drain. Check that: • the flexible drain hose is not kinked or obstructed; • the water drain pipe is not obstructed; • the dishwasher filter is not clogged. Switch the dishwasher off and back on. If the problem is resolved, the washing program will resume from where it was halted.
