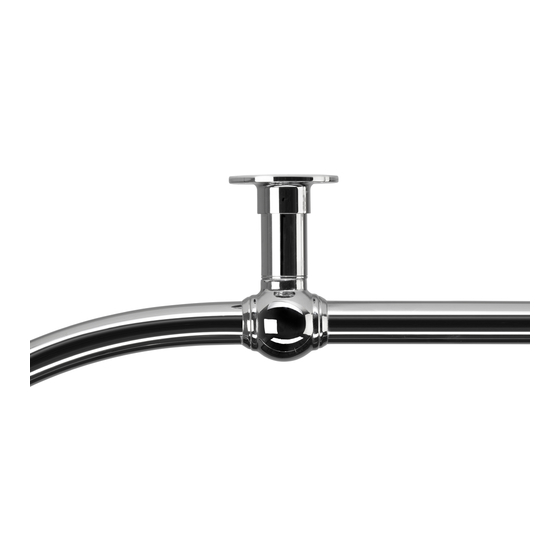

Wall mounted roll top bath rail

Advertisement

Quick Links

WALL MOUNTED ROLL TOP BATH RAIL
AD210241
ALL PRODUCT DIMENSIONS DETAILED IN THIS INSTALLATION
AND MAINTENANCE MANUAL ARE APPROXIMATE
ALL ILLUSTRATIONS OF THE PRODUCT ARE FOR REFERENCE
ONLY. COMPONENTS SUPPLIED WITH INDIVIDUAL PRODUCTS
MAY DIFFER
Please follow all assembly and product care instructions to ensure
that your product is assembled safely and retains it's high quality
finish.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
SAFETY & PRODUCT CARE
ALWAYS
1.
take care when using power tools, particularly if there is any
water in the working area.
ALWAYS
2.
wear eye protection when using power tools.
ALWAYS
3.
check for pipes and cables before drilling into walls and
ceilings.
ALWAYS
4.
use a ceramic drill bit when drilling into tiled surfaces.
ALWAYS
5.
use a drill bit that is suitable for the surface that is being
drilled.
6.
The wall plugs supplied are for use on solid walls only. For cavity walls or
ALWAYS
plasterboard
use specialist fixings that are suitable for the type
of wall construction.
DO NOT
7.
use abrasive or chemical cleaners as these may damage the
product.
x2
CONTACT DETAILS
Croydex
Central Way
Andover
Hampshire
SP10 5AW
UK
PRODUCT FITTING
IMPORTANT!
Before attempting to fit or use this product. Ensure that it can
be properly installed in the location you wish it to be in.
- FOR PARTITION WALLS, THESE PRODUCTS SHOULD BE FITTED TO A
TIMBER STUD WHEREVER POSSIBLE.
- IF FIXING TO A HOLLOW WALL CAVITY, ADDITIONAL TIMBER
SUPPORTS SHOULD BE USED BEHIND THE PLASTERBOARD.
- IF THIS CANNOT BE DONE, PLEASE USE SPECIALIST FIXINGS TO SUIT
THE INSTALLATION.
WALL FIXING
PACK
x6
TOOLS REQUIRED
6
mm
Tel: +44 (0)1264 365881
Email: info@croydex.co.uk
www.croydex.com
x6
R&R 076 R02
