Motor Servo for Ball Valves
Product Description

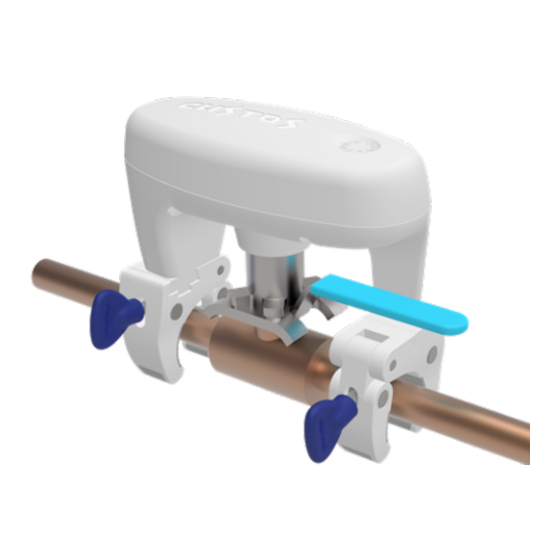

This motor converts existing and installed ball valves into intelligent water control
devices. Thanks to the innovative clamp mechanism, it can be installed on shut-off
valves with a pipe diameter between 0.5 and 1.5 inches within minutes, without the
need for additional tools, and can be removed just as easily. A patented coupling
mechanism allows for torques of up to 8 Nm, enabling it to function even with rusty
and old valves. The servo motor is waterproof and can be used in damp, dirty, and
outdoor environments.
In the open position, the motor automatically performs valve training once a week
(closing/opening by 1/8 turn to remove dirt and scale). The device is also capable of
measuring the rotation angle and detecting the end positions of the lever. It
approaches the end positions slowly to avoid friction and unnecessary mechanical
stress. It is powered by an external 12V power supply through a waterproof
coupling.
Incorporating an additional water sensor directly connected to the device enhances
functionality, enabling the motor to serve as a leak protection system without the
