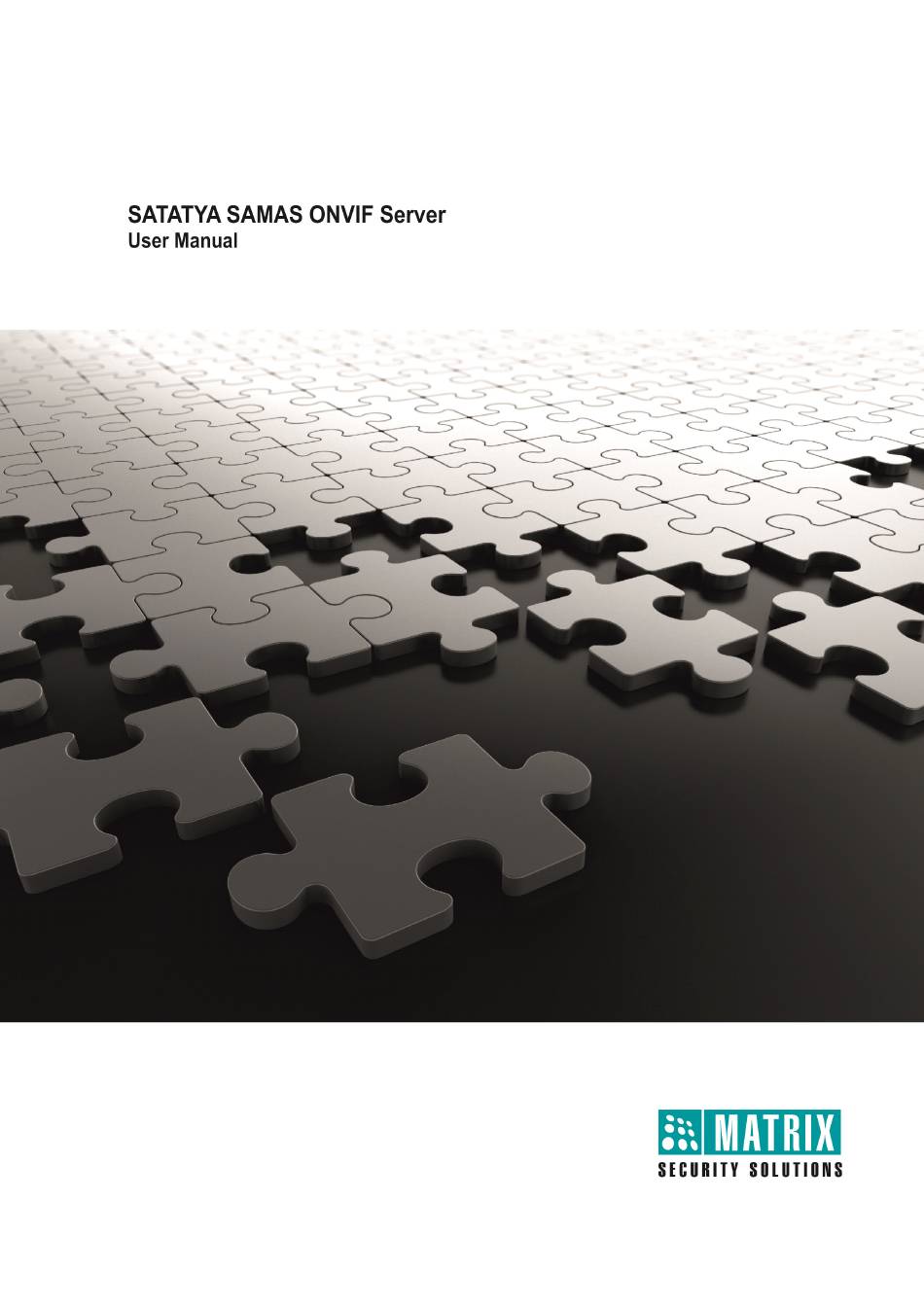

  • Page 2 S E C U R I T Y S O L U T I O N S Matrix SATATYA SAMAS ONVIF Server User Manual...
  • Page 3 Neither Matrix Comsec nor its affiliates shall be liable to the buyer of this product or third parties for damages, losses, costs or expenses incurred by the buyer or third parties as a result of: accident, misuse or abuse of this product or unauthorized modifications, repairs or alterations to this product or failure to strictly comply with Matrix Comsec operating and maintenance instructions.

  • Page 4: Table Of Contents

    Contents Introduction..............................1 Overview................................4 ONVIF ................................. 4 SATATYA SAMAS ONVIF Server ........................5 ONVIF Clients ..............................6 Installation............................... 7 Service Installation ............................16 Configuration ..............................20 Activating the ONVIF Server ..........................20 Configuring the ONVIF Sever ........................... 24 Assigning a Camera to the ONVIF Server ......................27 Configuring ONVIF Users ..........................

  • Page 5: Introduction

    ONVIF Server is a component of the SATATYA SAMAS and we are sure you will be able to make optimum use of this feature rich remote surveillance management system.
  • Page 6 How to Read this System Manual This document is organized in a manner to help you get familiar with the SATATYA SAMAS ONVIF Server learn how to install it, connect it in various network topologies, connect the external devices/camera, accessing the cameras using the ONVIF Clients / RTSP Media Clients.
  • Page 7 However, considering the broad group of intended users of this manual, wherever possible, use of jargon has been avoided. The terms Matrix SATATYA SAMAS ONVIF Server and ONVIF Server are used interchangeably and refer to the Matrix SATATYA SAMAS ONVIF Server.

  • Page 8: Overview

    IP configuration requirements. The following areas are covered by the Core Specification version 1.0: • IP configuration • Device discovery • Device management • Media configuration • Real time viewing • Event handling • PTZ camera control • Video analytics • Security Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 9: Satatya Samas Onvif Server

    For more information about the ONVIF standard, see the ONVIF® website (https://www.onvif.org/). SATATYA SAMAS ONVIF Server The SATATYA SAMAS ONVIF Server, uses ONVIF and acts as a bridge between SAMAS and 3rd Party ONVIF Clients. This enables easy exchange of video data as well as availability of Live / Playback streams.

  • Page 10: Onvif Clients

    The ONVIF Server uses ONVIF Profile S and RTSP to handle requests for video from an ONVIF client, and to stream video from an SATATYA SAMAS installation to the ONVIF client. By default, communication between ONVIF clients and the SAMAS ONVIF Server uses the following ports: •...

  • Page 11: Installation

    System Requirements Make sure the Management Server, Recording Server and License Server are installed in the same PC. To know more about the components of SATATYA SAMAS and their installation, refer to the SATATYA SAMAS Installation Guide. If you are installing the Management Server and ONVIF Server in different PC, following specifications are required.
  • Page 12 SATATYA SAMAS Installer Utility Take the SATATYA SAMAS Software Installation setup from the Portal. The url of the portal is mentioned below: ftp://matrixtelecomsolutions.com/SecurityProducts/SATATYA/SATATYA SAMAS. For credential assistance, contact Matrix Channel Partners or Matrix Support Team at Support@MatrixComSec.com For the installation of the other Servers, refer to the SATATYA SAMAS Installation Guide.
  • Page 13 The License Agreement screen appears as shown below. Select the check box to accept the terms and conditions and click Next to continue the installation process. Click Install to initiate the installation process. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 14 Now select the Installation Drive from the drop-down list. Custom Installation Follow Steps 1-4 explained above and select Custom from the Installation Options. Select the ONVIF Server check box from the list to be installed. Click Next to continue. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 15 The list of the following will be displayed: • components that will be installed • components that are already installed • components that will not be installed Click Install. The system will start installing the selected SAMAS components. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 16 To Uninstall or Reinstall the SATATYA SAMAS components, click SATATYA_SAMAS_Installer. The setup window appears as shown below. For successful uninstallation or reinstallation of SATATYA SAMAS, it is recommended that all the services are stopped before performing the task. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 17 To Uninstall the SAMAS components, Click Uninstall. Then select the check boxes of the desired components or click Select All to uninstall all the components. • Then click Next and then click Uninstall. The selected/all components will be uninstalled. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 18 Installing SAMAS Components at Different Sites SATATYA SAMAS has a distributed architecture. Hence, different components of SAMAS may be required to be installed at different geographical locations based on monitoring requirement. For example, an organization ABC has its head quarters in Delhi where the Management Server is set up and Recording Servers have been set up at Delhi, Mumbai and Ahmedabad.
  • Page 19 The SATATYA SAMAS Downloader opens as shown below: Select a Component from the Components section to initiate the download and follow instructions to complete the installation. User can also download all Product Manuals if required. Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 20: Service Installation

    Crystal Reports Runtime 13.0 which is required for report generation must be installed where Management Server is installed. For configuring the other Servers, refer to the SATATYA SAMAS Installation Guide. Configure ONVIF Server settings using the ONVIF Server Manager Utility •...
  • Page 21 When Management Server, Recording Server and ONVIF Server are in different network and inter connectivity needs to be established, then Port Forwarding is required.Contact you System Administrator to set Port Forwarding as per you installation scenario. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 22 Start Port and End Port: Enter the Start and End port that is to be used for Multicasting. The Multicasting communication will be done within this range. • IP Address Range 224.0.0.0 to 224.0.0.255 can be used for Multicasting within same subnet. For Cross Network Multicasting all other IP Addresses can be used. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 23 4 sub-networks and then the packet will be dropped. • Click OK to save settings. • Now again from the Windows taskbar, Click the ONVIF Server icon and right click to select Start ONVIF Server to start the service on the system. Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 24: Configuration

    “Configuring ONVIF Users”. Activating the ONVIF Server • Double-click the Admin Client shortcut icon on your Windows desktop. • The login page appears, enter the User Name and Password. • Click Login. The Home page appears. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 25 ONVIF Server which is to be activated. For Eg: The request from ONVIF Server PATRICPILLAI is received on MS (192.168.111.132) by giving the IP Address (192.168.111.132) and port(8500) of MS in ONVIF Server Manager of PC(192.168.104.12) Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 26 Activate Server. • To reject a pending ONVIF Server, select Reject Server. • Once an ONVIF Server has been activated, click Actions to access the options — Disable Server, Remove Server or Update Configuration. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 27 Viewing the IP Address of the ONVIF Servers To view the IP Addresses of all the ONVIF Servers, • Click Servers & Devices Module • Click Management Server. Click the ONVIF Server collapsible tab. Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 28: Configuring The Onvif Sever

    Double-click on the desired Server. It has following tabs: • Cameras, refer to “Assigning a Camera to the ONVIF Server” • “Profile” • “Location” Profile To view the profile of ONVIF Server, click the Profile tab and the following screen appears. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 29 It also displays the whether WS-Discovery is enabled/disabled, RTP Port, ONVIF Port, RTSP Port and Multicast Settings. These parameters can be configured from the ONVIF Server Manager.Refer to the SAMAS Installation Guide for details. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 30 From the Location tab you can add Address and contact number (Landline No. and Mobile No.) of the location where ONVIF Server is installed as shown in the screen below. Click Save to save the location details. Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 31: Assigning A Camera To The Onvif Server

    Click ONVIF Server and click the Camera tab. • To add cameras to the ONVIF Server, click Add/Remove Cameras button as shown in the screen below. • A pop-up window appears as shown in the screen below. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 32 Once the cameras are added, these are displayed under the ONVIF Server. You can disable or remove the camera. Click Actions against the desired camera, • To disable, click Disable Camera. • To remove, click Remove Camera. Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 33: Configuring Onvif Users

    Basic Permissions: These will differ according to the Level you select. • ONVIF Server Rights: Select the ONVIF Servers and their devices for which you wish to give rights to the User. • Click Save. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 34 To edit, click on the desired User Name, you can edit the details on the right. • To view the details of the all the ONVIF Users, refer “ONVIF Server” (from Admin Client) and “ONVIF Users” (from Smart Client). Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 35: Viewing Live Streams

    The ONVIF Server uses ONVIF Profile S and RTSP to handle requests for video from an ONVIF client, and to stream video from an SATATYA SAMAS installation to the ONVIF client. In this section we will explain how to view video streams using the Third Party Client (ONVIF Device Manager) as...
  • Page 36 SAMAS Admin Client. • Click Login. • Click Add. The Add Device pop up appears. • In the URL enter http://192.168.101.222:580/onvif/device_service This is the IP Address and Port of the ONVIF Server. • Click Apply. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 37 Camera GUID: The cameras may be connected directly or through a device. To view the Camera GUID, login into the Admin Client, click the desired Server & Devices > Recording Server > Device > Camera > Profile. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 38 > Stream Profile. Cameras may be connected through the NVR. If you are using the Main Stream, enter Stream Profile as 1 and if you are using the Sub Stream, enter the Stream Profile as 2. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 39 Server Address is the IP Address of the ONVIF Server • Server Port is the Port of the RTSP Port (Default: 554) of the ONVIF Server • Camera GUID • Profile Number For Multicast use the following: rtsp:// <Server Address>:<RTSP Port>/multicaststream/ <CameraGUID>/<profile_no> Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 40 • Click Play. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 41 • A pop up appears. Enter the ONVIF User Name and Password, you created in SAMAS Admin Client. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 42 • Click OK. The Live Video appears. Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 43: Viewing Playback

    Viewing Playback using the VLC Media Player For playback follow the steps given below: • Click the VLC media player application to open. • On the toolbar, click Media, and select Open Network Stream. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 44 DD= 01 to 31 • MM=01 to 12 • YYYY=2014 to 2037 • hh = 00 to 23 • mm = 00 to 59 • ss= 00 to 59 • The Playback stream appears. Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 45: Maintenance

    Once the ONVIF Server is installed, the ONVIF Sever icon appears in the Tray on the Windows taskbar. • Right click on the Server icon, the following options appear. • Click Stop ONVIF Server. After that click right-click on the icon again and click Configuration Settings. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 46 To check the status of the ONVIF Server, ONVIF Users and the Event Logs from the Admin Client, • Login into the Admin Client. ONVIF Server • Click System Monitor Module > Server Dashboard > Management Server and following page appears. Right Pane Left Pane Right Side Pane Bottom Pane Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 47 — the Cameras connected, Server Name and Stream Status as shown below. The CPU Usage, Memory Usage and Server Availability of the selected Server is displayed in the Right Side pane. • Click on Refresh button at top right to refresh the status of servers. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 48 There are filters according to which the data can be viewed. You can filter records according to the User Name and/or User Group. • Click Disable User icon of the respective user to prevent a user from logging in the next time. Disabled user’s active session will be terminated instantly. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 49 • To enable a disabled user, click SATATYA SAMAS Admin Client > System Account > ONVIF User and select the Enable User check box. Event Logs Event log provides various logs for all events on the system. To view a log of the events for the ONVIF Server, •...
  • Page 50 Click System Monitor > Server Dashboard > Management Server. • Click ONVIF Server. The ONVIF Server is selected as shown below. It displays the list of cameras along with name of the Recording Server and Stream Status. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 51 ONVIF Server. It displays the details of MS, RS/FoS to which ONVIF Server is connected currently.The details are displayed as shown below. ONVIF Users • Click System Monitor > Users > ONVIF Users to view all currently logged-in ONVIF users on the system. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 52 You can also view the IP Address when you hover over the User Name in the left pane. Event Log • Click System Monitor > Event Log to view a log of events as shown below. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 53 Source: You can enter the name of the desired ONVIF Server (if required). • Event: You can enter the type of event for which logs are required, for example Connected. • Click Search. The events will be listed as shown below. Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 54 • Click on the Details button in the particular row to view the event details. Matrix SATATYA SAMAS ONVIF Server Manual...

  • Page 55: Supported Functions

    Media Conditional 7.3.3 Function list for Recording Search Function Service Requirement Implemented FindEvents Search Mandatory GetEventSearchResults Search Mandatory EndSearch Search Mandatory 7.4.3 Function List for Replay Control Function Service Requirement Implemented GetReplayUri Replay Mandatory Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 56 GetScopes Device Mandatory 9.4.3 Function List for Network Configuration Function Service Requirement Implemented GetDNS Device Mandatory GetNetworkInterfaces Device Mandatory 9.5.3 Function List for System Function Service Requirement Implemented GetDeviceInformation Device Mandatory GetSystemDateAndTime Device Mandatory Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 57 Mandatory 7.3.3 Discovery Function List for Devices Function Service Requirement Implemented WS-Discovery Core Mandatory GetScopes Device Mandatory 7.4.3 Network Configuration Function List for Devices Function Service Requirement Implemented GetDNS Device Mandatory GetNetworkInterfaces Device Mandatory Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 58 7.10.3 Video Encoder Configuration Function List for Devices Function Service Requirement Implemented GetVideoEncoderConfiguration Media Mandatory GetVideoEncoderConfigurations Media Mandatory 7.11.3 Media Profile Configuration Function List for Devices Function Service Requirement Implemented GetProfiles Media Mandatory GetProfile Media Mandatory Matrix SATATYA SAMAS ONVIF Server Manual...
  • Page 59 7.12.3 Video Source Configuration Function List for Devices Function Service Requirement Implemented GetVideoSources Media Mandatory GetVideoSourceConfiguration Media Mandatory GetVideoSourceConfigurations Media Mandatory Matrix SATATYA SAMAS ONVIF Server Manual...
