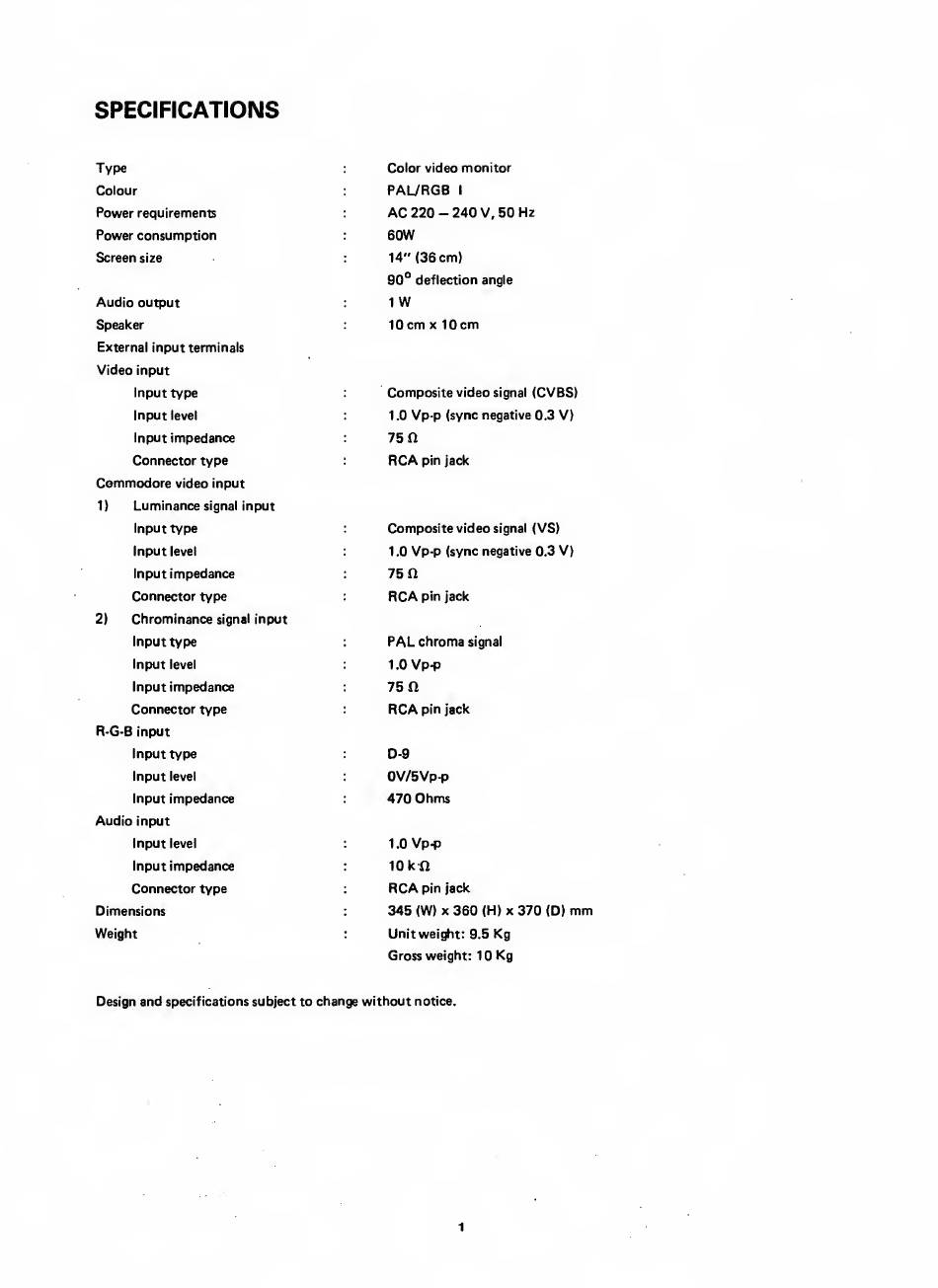

SPECIFICATIONS
Type
Colour
Power requirements
Power consumption
Screen size
Audio output
Speaker
External input terminals
Video input
Input type
Input level
Input impedance
Connector type
Commodore video input
1) Luminance signal input
Input type
Input level
Input impedance
Connector type
2) Chrominance signal input
Input type
Input level
Input impedance
Connector type
R-G-B input
Input type
Input level
Input impedance
Audio input
Input level
Input impedance
Connector type
Dimensions
Weight
Color video monitor
PAL/RGB I
AC 220 - 240 V, 50 Hz
60W
14" (36 cm)
90° deflection angle
1 W
10 cm X 10 cm
Composite video signal (CVBS)
1.0 Vp-p (sync negative 0.3 V)
75 n
RCA pin jack
Composite video signal (VS)
1.0 Vp-p (sync negative 0.3 V)
75 n
RCA pin jack
PAL chroma signal
1.0 Vp-p
75 0
RCA pin jack
D-9
0V/5VP-P
470 Ohms
1.0 Vp-p
10 kn
RCA pin jack
345 (W)
X
360 (H) x 370 (D) mm
Unit weight: 9.5 Kg
Gross weight: 10 Kg
Design and specifications subject to change without notice.
