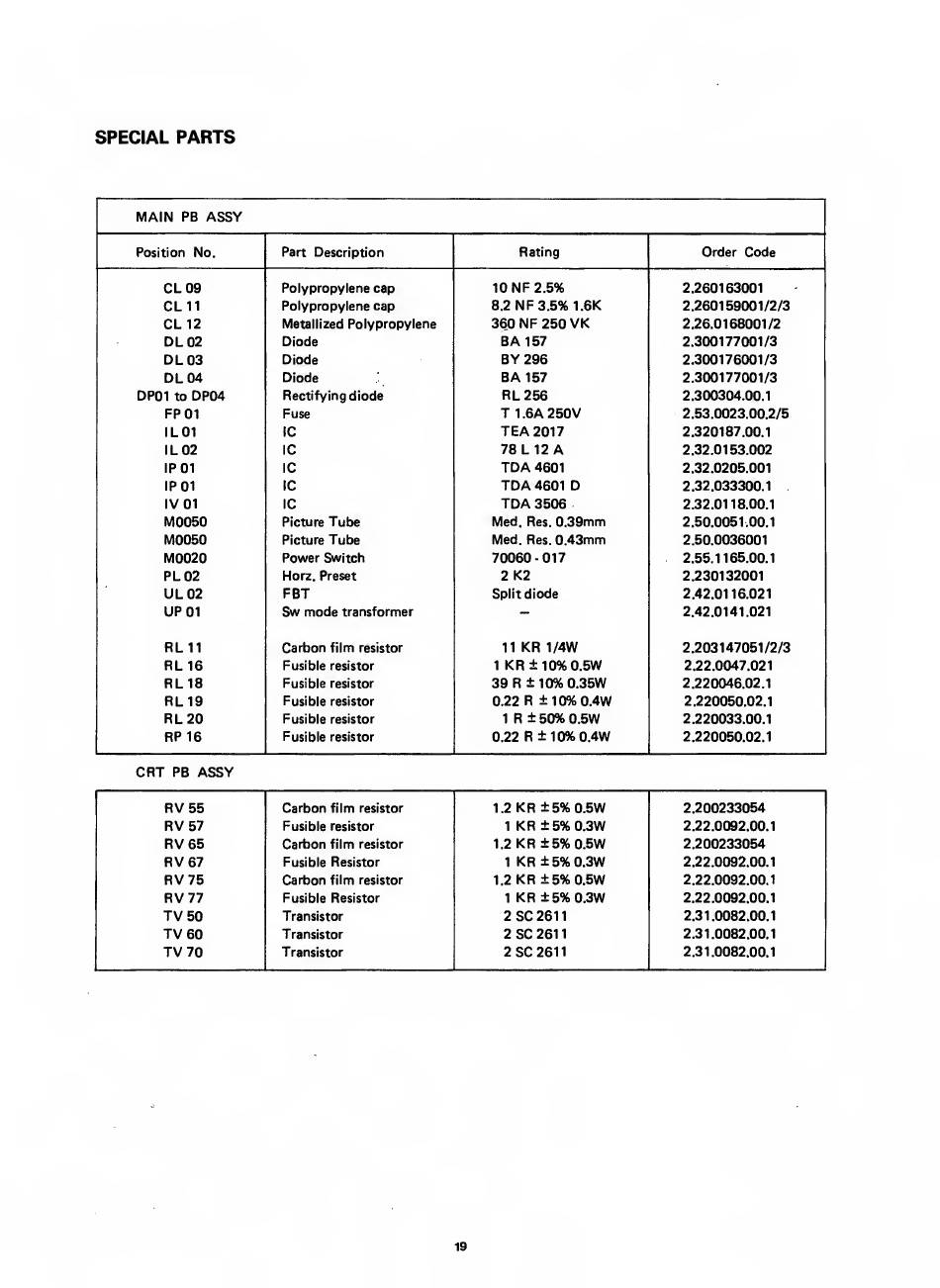

SPECIAL PARTS
MAIN PB ASSY
Position No. Part Description Rating Order Code
CL 09 Polypropylene cap
10NF2.5%
2.260163001
CL11 Polypropylene cap
8.2NF3.5%1.6K
2.260159001/2/3
CL 12 Metallized Polypropylene 360 NF 250 VK 2.26.0168001/2
DL02 Diode
BA 157 2.300177001/3
OL03 Diode BY 296 2.300176001/3
DL04
Diode BA 157 2.300177001/3
DP01 to DP04
Rectifying diode RL256
2.300304.00.1
FP01 Fuse
T 1.6A 250V
2.53.0023.00.2/5
IL01 1C
TEA 2017
2.320187.00.1
IL02 1C 78 L 12 A 2.32.0153.002
IP 01
1C TDA 4601 2.32.0205.001
IP 01 1C TDA 4601 D 2.32.033300.1
IV 01 1C TDA 3506 2.32.0118.00.1
M0050 Picture Tube Med. Res. 0.39mm 2.50.0051.00.1
M0050 Picture Tube Med. Res. 0.43mm 2.50.0036001
M0020
Power Switch 70060-017
2.55.1165.00.1
PL 02
Horz. Preset 2 K2 2.230132001
UL02 FBT
Split diode
2.42.0116.021
UP 01 Sw mode transformer -
2.42.0141.021
RL 11
Carbon film resistor 11 KR 1/4W
2.203147051/2/3
RL 16
Fusible resistor 1 KR ±10%0.5W
2.22.0047.021
RL18
Fusible resistor
39 R ± 10% 0.35W
2.220046.02.1
RL 19 Fusible resistor 0.22 R ± 10% 0.4W
2.220050.02.1
RL20 Fusible resistor 1 R ±50% 0.5W 2.220033.00.1
RP 16 Fusible resistor 0.22 R ± 10% 0.4W
2.220050.02.1
CRT PB ASSY
RV55
Carbon film resistor
1.2 KR ±5% 0.5W
2.200233054
RV57
Fusible resistor 1 KR ±5%0.3W 2.22.0092.00.1
RV65 Carbon film resistor 1.2 KR ±5% 0.5W 2.200233054
RV67 Fusible Resistor 1 KR ± 5% 0.3W 2.22.0092.00.1
RV75 Carbon film resistor 1.2 KR ±5% 0.5W 2.22.0092.00.1
RV77 Fusible Resistor
1 KR ±5%0.3W
2.22.0092.00.1
TV 50 Transistor 2 SC 2611 2.31.0082.00.1
TV 60 Transistor 2 SC 2611 2.31.0082.00.1
TV 70 Transistor 2 SC 2611 2.31.0082.00.1
19
