Commodore 1901 Service Manual page 13

BA01
CAPAClTOfl
-II— DISC CERAMIC CAPAOTOR
POLYESTER / MYLAR CAPACITOR
ELEaROLYTIC CAWCITOR
ALL CAPACITANCES IN FARAD •
RESISTORS
CARBON RESISTOR 0.25W TOL t5'/.
ALL RESISTANCES IN OHM.
UNLESS OTHERWISE STATED.
A\
SAFETY PARTS
COMPONENTS DESIGNATED BY SAFETY SYMBOL
SHOULD . WHEN NECESSARY FOR REPAIR .
ONLY BE REPLACED BY ORIGINAL. PARTS PRODUCED
AND APPROVED BY THE MANUFACTURER . ONLY
THEN CAN THE ORIGINAL OPERATIONAL SAFETY
BE GUARANTEED.
-
W 1N4146
TEST POINT
* FOR COMPOSITE VIDEO

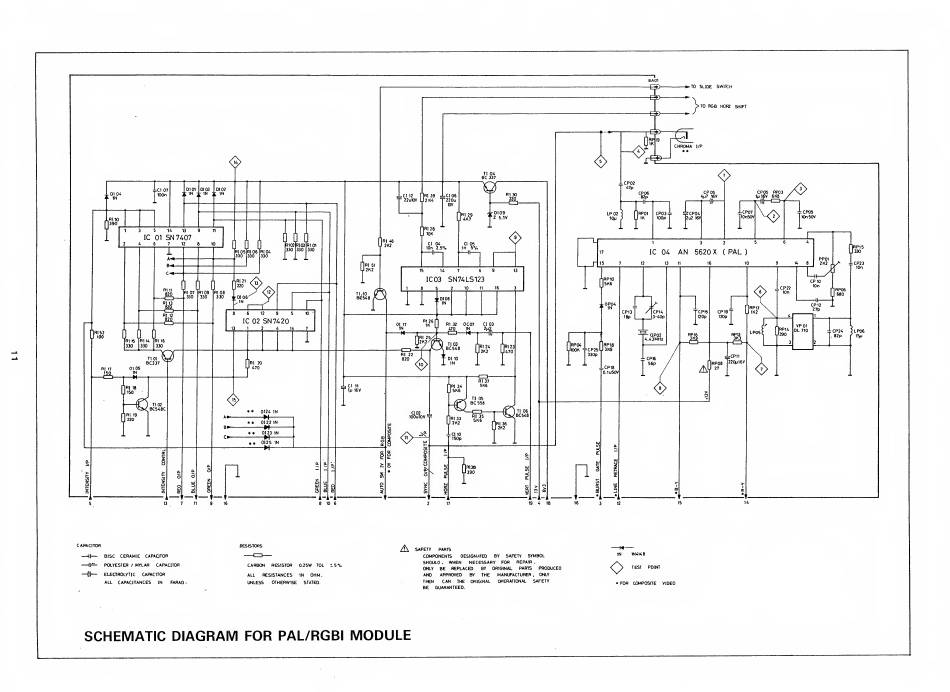

SCHEMATIC DIAGRAM FOR PAL/RGBI MODULE
