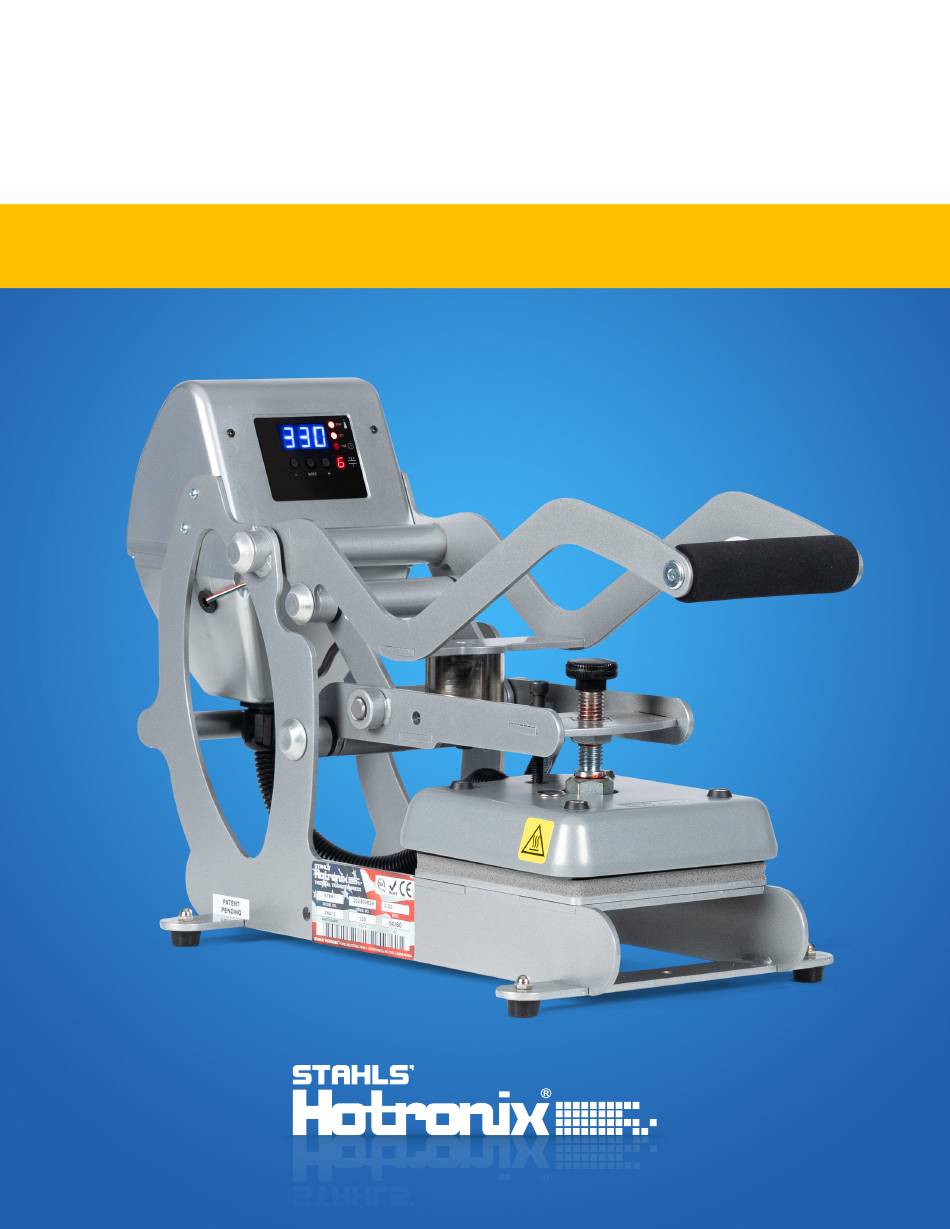

- Page 1 AUTO OPEN SERIES LOWRIDER OPERATOR’S MANUAL...
-
Page 2: Safety Instructions
HOTRONIX HOTRONIX ® ® Safety Instructions LOWRIDER LOWRIDER When using your heat press, basic precautions should always be followed, including the following: 1. Read all instructions. 2. Use heat press only for its intended use. 3. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids. 4. -
Page 3: Table Of Contents
Table Of Contents Safety Instructions Machine View Operating Instructions LED Display Connecting the System Start Up/Shut Down Adjusting Settings Electrical Schematic 10-11 Replacement Parts List Contact... -
Page 4: Machine View

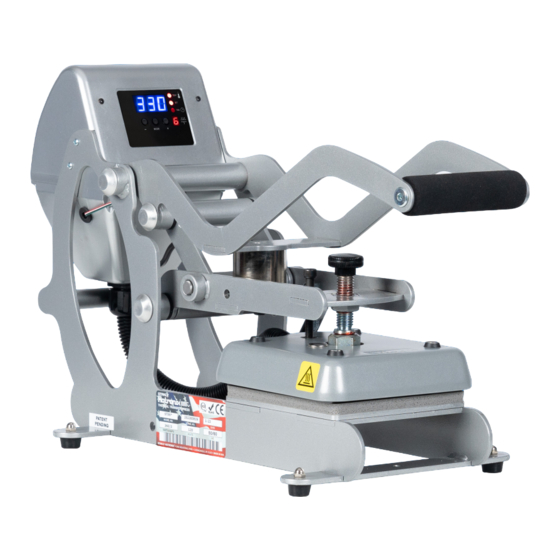

HOTRONIX ® Machine View LOWRIDER Circuit Breaker LED Display Power Supply Lift Handle Pressure Adjustment Knob 12V Magnet Upper Platen Power ON/OFF Switch Lower Platen... -
Page 5: Operating Instructions
Operating Instructions LED Display Temperature Indicator Set Indicator Digital Display Time Indicator Decrease Pressure Indicator Mode Select Increase WWW.HOTRONIX.COM... -
Page 6: Connecting The System
HOTRONIX ® LOWRIDER Connecting the System Connect the power cord into a properly grounded electrical outlet with a sufficient amperage rating (1.1). Voltage 120 volt requires a fully dedicated 10-amp grounded circuit. 220 volt requires a fully dedicated 10-amp grounded circuit. Extension cords should be as short as possible and not less than 12 gauge. -
Page 7: Adjusting Settings
Operating Instructions Adjusting Settings Adjust Temperature Press the Mode Select button in the center of the Control Panel. The (SET) and (TEMP) lights located next to the display will illuminate. Press the (+) or (-) button to raise or lower the temperature setting. The temperature can be set from 176°F (79°C) to 430°F (220°C). - Page 8 HOTRONIX ® LOWRIDER Adjust Pressure Turn knob clockwise to increase pressure and counterclockwise to decrease pressure. PRESSURE READOUT A visual Pressure Readout is located on the lower right side of the LED Display. When the handle is locked into the PRINT position, a pressure number between 0-9 will be displayed. 0 indicates no pressure and 9 indicates very heavy pressure.
-
Page 9: Electrical Schematic
Electrical Schematic US 120V/240V VERSIONS CE 230V VERSION WWW.HOTRONIX.COM... -
Page 10: Replacement Parts List
HOTRONIX ® Replacement Parts List LOWRIDER ITEM # PART NAME PART # ITEM # PART NAME PART # Control Housing, STX 4-1172-S Ball Stud 10mm 1-1939 Controller Overlay, STX 1-2018-1 Screw, Pan Phillips #6-32 x 3/4" 3-1011-252 Grommet, 9/32" ID 3/8" OD 1-2105 Wing Nut, 5/16"-18 2-1006-97... - Page 11 Parts Location Guide WWW.HOTRONIX.COM...
-
Page 12: Contact
HOTRONIX ® CONTACT US LOWRIDER STAHLS’ Hotronix ® One Industrial Park Carmichaels, PA 15320 U.S.A. Technical Support hotronix.com/support Customer Service customerservice@hotronix.com Replacement Parts hotronix.com/locationspart hotronix.com This document includes multiple trademarks and describes equipment covered by many patents that are owned by GroupeSTAHL and/or its subsidiaries. GroupeSTAHL enforces its rights to protect these intellectual properties.
