CLIMA POD VIRTUE V9 Assembly Instructions Manual

Hide thumbs Also See for VIRTUE V9:

Advertisement

Quick Links

Download this manual
VIRTUE
GREENHOUSE KIT
ASSEMBLY INSTRUCTIONS
V9 "Climapod Virtue"
V907 Main House
Silver
Contact Information:
MODULAR ORGANICS LLC
EMAIL: sales@climapod.com
Phone: 360-674-2642
Website: www.climapod.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIRTUE V9 and is the answer not in the manual?

Questions and answers

Related Manuals for CLIMA POD VIRTUE V9

Summary of Contents for CLIMA POD VIRTUE V9

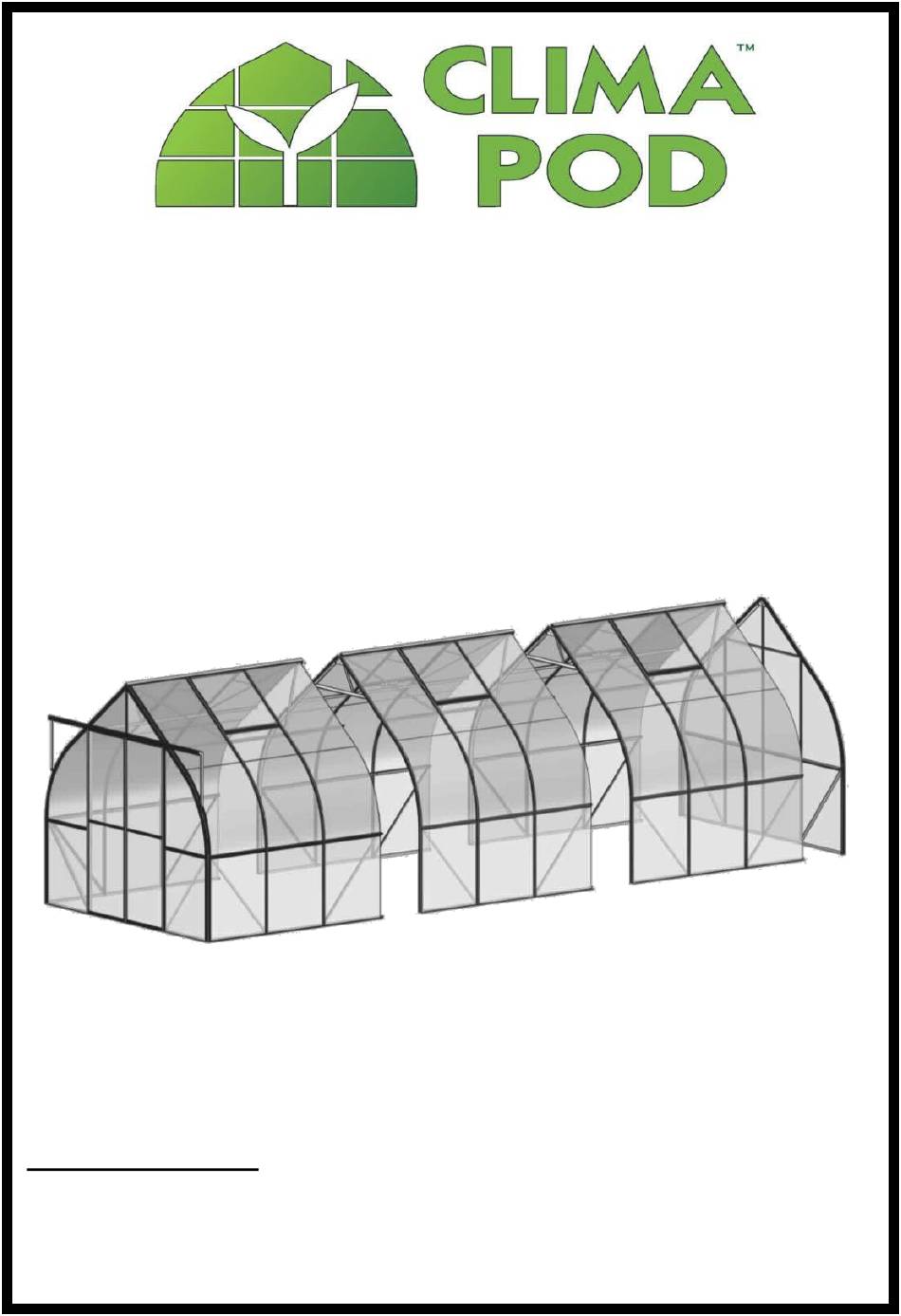

  • Page 1 VIRTUE GREENHOUSE KIT ASSEMBLY INSTRUCTIONS V9 "Climapod Virtue" V907 Main House Silver Contact Information: MODULAR ORGANICS LLC EMAIL: sales@climapod.com Phone: 360-674-2642 Website: www.climapod.com...
