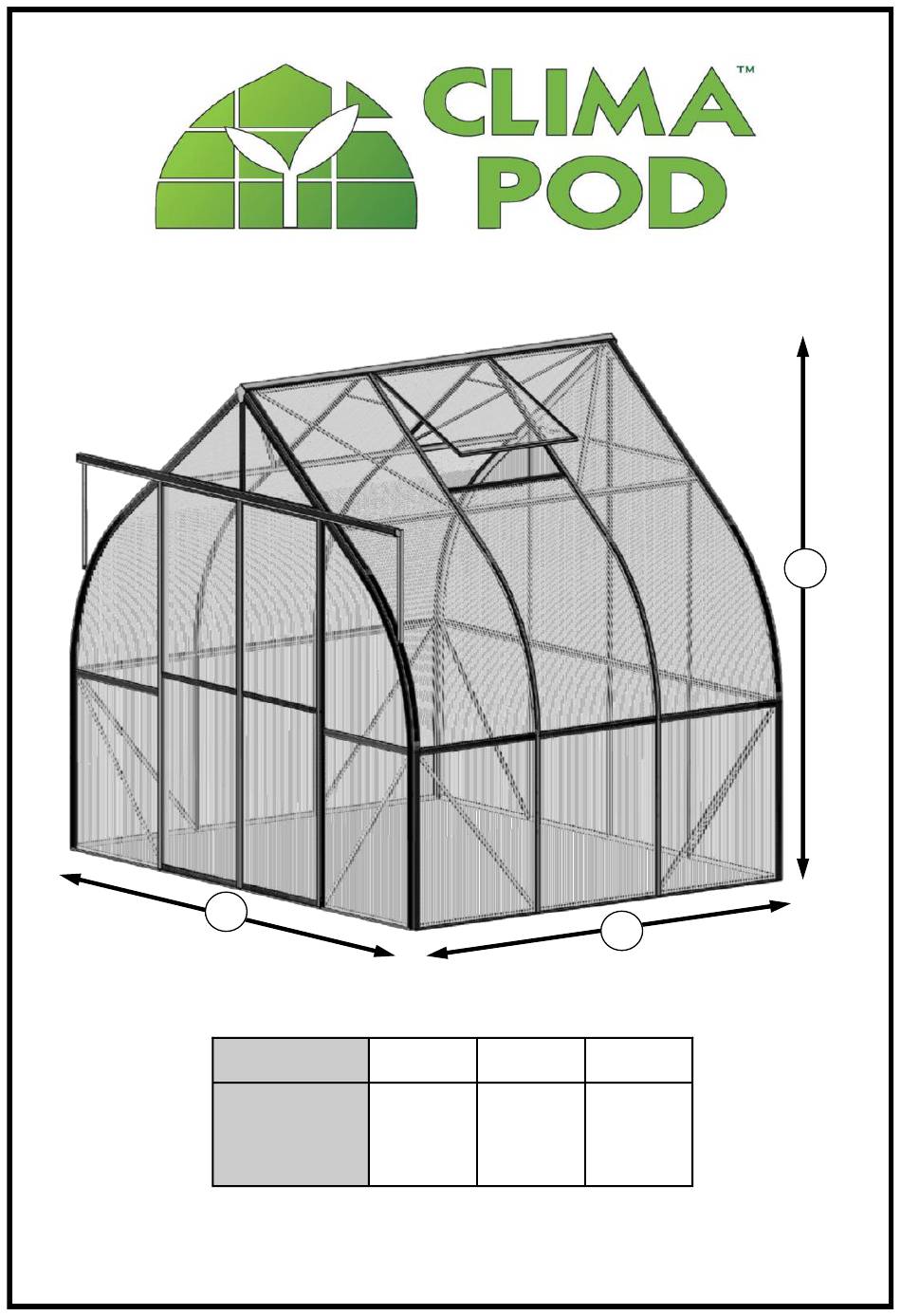

- Page 1 Assembly instructions MODEL A (mm) B (mm) C (mm) 2693 4386 2415 Virtue 8’10” 14’4 ” 7’11 ” Walk-in Greenhouse...
- Page 2 Climapod Assembly Tips and Tricks Prior to the assembly of the greenhouse, you should have a 10mm nut driver, ● 10mm open-end wrench, Phillips head and slotted screwdriver, spirit level, ladder, needle nose pliers, flat head screwdriver, and some WD-40 lubricant. Caulking Increases the structural integrity of the greenhouse and prevents ●...
-
Page 3: Supplementary Instructions
Supplementary Instructions For additional questions or concerns please email sales@climapod.com or call 360.674.2642 Gather all parts necessary for as- sembling the top of the gable. Make sure to in- sert Polycarbonate pieces into Alumi- num profiles be- fore inserting bolts into channels Once bolts are in- serted slightly... - Page 4 Repeat the steps on the rear gable and continue inserting the rest of the polycarbonate pieces and aluminum support pieces.
- Page 5 Once both gables are completed, insert them into the aluminum base and connect using the ridgepole...
- Page 6 Statement Dear Customer! May we congratulate you on your new Greenhouse. We feel sure that by following the detailed assembly instructions you will find as much pleasure in actually building the greenhouse as the time you will spend in your greenhouse in the future. The assembly instructions mainly consist of detailed illustrations and no specific technical knowledge is required for the assembly of the greenhouse.
- Page 7 Statement Foundation The base is maintenance free and, of course all fittings are included. Remember to order concrete pipes and concrete at your local dealer as these are not included in the delivery. Cautions Remove approximately 2 inches of film from all Handle with care! Drop- sheet edges before in- ping can bend the frame,...
- Page 8 Base Virtue Alu. Base Virtue Steel Base Virtue Concrete 8’10” 14’4 ” Virtue Virtue 2693 4386...
- Page 9 When using the aluminum base remember to fill the channels with bolts corre- Base sponding to amount of arches per side as well as connecting gables. The left illustration shows length and width marked with “X” and “Y”. Part No. m5 shows a bracket used to secure the inside base when not using the original supplier’s founda- tion.
- Page 10 Polycarbonate sheet Size Virtue (2’3 ” x 3’5 ”) 700x1049 (2’3 ” x 2’9 ”) 700x842 (1’11 ” x 1’7 ” / ”) 602x487/16 (1’11 ” x 2’11 ”) 599x913 (2’ x 5’ ” / 3’5 ”) 610x1534/1057 (2’ x 2’9 ”)
- Page 11 Louvre Louvre is an optional extra and is not included in the price. (1’5 ”) (1’6 ”) the new polycar- bonate panel #E1 Using Alu. clip to connect louvre and PC panel 456 x 610 (1’5 ” x 2’) 573 x 97...
- Page 12 The list of Section Part Part Section Profile Size Virtue Section Profile Size Virtue (2’2 ”) (9’8 ”) V042 V901 2960 (2’3 ”) V044 (9’8 ”) V902 2960 (2’3 ”) V045 (6’3 ”) V005 1912 (2’5 ”) V946 ”) (6’3 ”)
- Page 13 Step1 Rear Gable Package No.1 With this page, you will assemble the rear gable (back). It is far easier if you have an elevated surface such as two 4’×8’ pieces of plywood on a sawhorses. If not, lay the aluminum profiles out on a hard sur- face as shown in the main illustration.
- Page 14 Square No.1 This Ridge. square headed bolt slides into the chan- nel in part #V901 & #V902, and connect them with part #m1, Our bolts and nuts were made V901 V907 V902 stainless steel. Square No.2 Insert part #V005 into Part #V901 channel, contact with part #908 together, Please insert extra bolt #a1 into the channel of Part #V006 for...
- Page 15 V010 V009 Square No. 4 Assembly part #V009, #V010 in place, then connect with part #911 again. Please Note: Don’t let this bolt block polycarbonate panel to insert into part #V901&V902 alu. frame channel. Insert PC panel first, then slide this bolt in part #V901&V902 profile’s trough. V901 V901 V902...
- Page 16 Step2 Front Gable Package No.2 Part V903 V904 V009 057 V014 V015 V916 V917 V918 V919 2960 2960 1100 1912 1912 2662 1220 2484 Size M6x10 M6x18 M6x15 2’3 ” 9’8 ” 9’8 ” 2’2 ” 3’7 ” 6’3 ” 6’3 ”...
- Page 17 V917 V903 V904 V918 V918 V904 V918 V015 Square No.3 Assemble polycarbonate panel #C1 on part #V903,#V917, V903 V904 #V904, use part #V918 to fix it. V904 Square No.4 ter PC panels in position, then adjust the distance same between PC panel V009 V009 and keyway edge.
- Page 18 Please Note: Don’t let this bolt block polycarbonate panel to in- sert into part #V903&V904 alu. frame channel. Insert PC panel first, then slide this bolt in part #V903&V904 profile’s trough. V904 V903 V904 V916 V916 V014 Square No. 6 Inserting PC panel #B in profiles’...
- Page 19 Step3 Connect front gable with rear gable by Ridge and side sill beam. Part No. Size Virtue 4345 V024 14’3 ” 4324 V029 14’2 ” Square No.1 Attaching the ridgepole to the gables, this is where you may have to adjust bolts in plate #m1 to fit the pole into gables.
- Page 20 Assemble greenhouse frame on Alu. base. a1-M6x10 a1-M6x10 Square No.1 You may loosen the bolts in cor- ners and re-tighten it at the trough of base legs. Corner Corner a8-M6x15 Square No.2 Assemble a8-M6x15 greenhouse frame base by connector m7 in the middle of bottom.
- Page 21 Assemble greenhouse frame on Steel base. a1-M6x10 Square No.1 You may a1-M6x10 loosen the bolts in cor- ners and re-tighten it to- gether with base connect Corner Corner a8-M6x15 a8-M6x15 Square No.2 Assemble greenhouse frame base by connector m7 in the middle of bottom.
- Page 22 (#012). Then the greenhouse will be in straight shape structure. Then we can start to assem- ble PC panels and glazing bars smoothly. Part Size Virtue 4311 14’1 ” 4311 14’1 ” 1100 3’7 ”...
- Page 23 Now we are starting to assemble Polycarbonate panels and glazing bar. Sliding PC panel #B between cross bar part #V042 and side sill beam with PVC anti-dust strip P7 on bottom. Connect curved glazing bar #V943 with ridge and hanging basket bar, and tighten it. Inserting polycarbonate panel # I1 into the alu.
- Page 24 Adjust depth of PC panel in cross bar channel tighten first tighten second tighten third tighten fourth V943 V943 V943 V943 a8/a2 Square No.1 From bottom to top, you could squeeze polycarbonate panel both edges into alu. Profile’s channel gradually. Please use bolt and nut to tighten the glazing bar#V943 with hanging basket bar or horizontal rail in time once it’s in position.
- Page 25 Size M6x10 2’2 ” 2’3 ” 2’3 ” 2’5 ” ” ” Virtue Vent No. V044 V946 V044 V045 V946 V946 Square No.1 & No.2 When assembling the vent V946 using screw #a5, it is essential to use a lubricant on the screws.
- Page 26 Step6 For the last polycarbonate panel assembly At first, You should dismantle the curved corner bar, by loosening the bolts attaching base, sill beam and horizontal rail bar (Don’t loosen ridge top and hanging basket bar bolts and nuts). And separate curved corner bar a little from bottom, and make an angle with glazing bar (Like a trapezoid with right angle).
- Page 27 Step8 Door Package No.5 Part V049 V050 V051 V952 V953 FLUFF 1864 1864 1864 Φ3.5x19 Φ3.5x35 Φ4x8 M6x15 Φ3x10 Size M6x10 1’11 ” 1’11 ” 6’1 ” 6’1 ” 6’1 ” 1’9 ” 3.8m FLUFF V049 V049 V049 V051 V051 V952 V050 V051...
- Page 28 Description Virtue Rear Gable Front Gable Roof/side wall Window Door Curved front corner bar Curved rear corner bar Curved glazing bar Polycarbonate panels Tools Assembly Instruction Contact Information: MODULAR ORGANICS LLC EMAIL: sales@climapod.com Phone:360.674.2642 Website: www.climapod.com...
