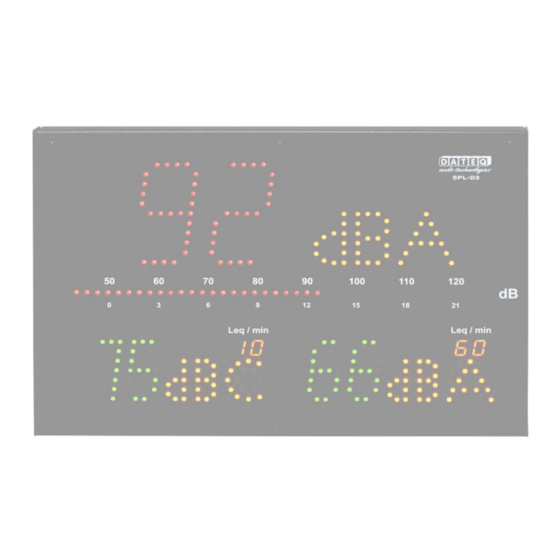

- Page 1 Machine Translated by Google SPL-D3 Multi Color Display & sound level logger Manual SPL-D3_200101_V1.0EN...
- Page 2 Machine Translated by Google Due to the nature and functionality of this product, it should only be used and installed by professional and certified installers. It is not intended for use or resale by consumers. The manufacturer does not support consumer use. SPL-D3_200101_V1.0EN...
-
Page 3: Safety Instructions
Machine Translated by Google DATEQ SPL6 Manual Safety instructions Safety instructions 1. All safety instructions, warnings and instructions for use must be read first become. 2. All warnings marked on the device must be followed. 3. The instructions for use must be followed. - Page 4 Machine Translated by Google Index Safety Instructions..........3 License Configuration.........21 Introduction............7 The unlocking limiter........21 Installation............8 Live..............22 Connections............8 Display configuration........23 Links; ............9 Microphone..........24 Microphone input........9 brightness ..........24 Use..............10 Timeslots..............24 Technical specifications........13 Circuit breaker........24 Inputs....
- Page 5 DATEQ SPL-D3 Manual Introduction The SPL-D3 is an advanced sound pressure meter that stores the sound clips for a minimum of twelve months. The sound clips can be viewed through the configuration software, or saved externally to a USB drive with a FAT32 file system. Other important data is also saved, such as start-up data, sanction data or any sabotage data.
-
Page 6: Installation
The SPL-D3 is installed separately from the audio source (for example, a mixing desk) and separately from the speakers and amplifier. Image 1: Installing the SPL-D3 After the SPL-D3 is installed and calibrated, it displays all measured values in green, orange or red, with a deviation of +/- 1.5 dB. Connections microphone input;... - Page 7 Machine Translated by Google Installation DATEQ SPL-D3 manual USB ports; USB-A female Pin Function Description 1 VCC + Supply 2 Dates – Dates 3 Dates + Dates 4 GND ground Table 4: USB connections Link; Jack 3-pin female Pin Function...
- Page 8 7. Push button: Allows you to export measurement data to the external FAT32 disk or display or reset the IP address of the SPL-D3. 8.Seal: here you can seal the cable cover with two M4 screws and a cable seal.
- Page 9 12.Ethernet: Ethernet connection for an IP connection to an internal web server and a remote reporting server* *Ethernet connection is disabled in the initial firmware version. Check www.dateq.nl for firmware updates and the functions that are currently available. 13.Power: power supply, 24 volts, recommended: 1 A (24 watts) Normal use: 0.5 A (12 watts).
- Page 10 17.VESA 50: standard VESA 50 bracket for wall mounting, M4, max. length 12 mm. 18.Standard: standard mounting bracket, supplied with the SPL-D3, M4, max. length 12 mm. standard mounting bracket for the M10-G hook. M4, max length 12mm 19.Safety mount:...
-
Page 11: Technical Specifications
Machine Translated by Google DATEQ SPL-D3 Manual Technical specifications Technical specifications Inputs Mic (measurement microphone) XLR-3 female. Use only the original DCM-5 microphone. General Audio Frequency response 30 Hz...16 kHz @ -1.5 dB Signal-to-noise ratio >90 dB Memory 4 GB SDHC... - Page 12 Machine Translated by Google...
- Page 13 Machine Translated by Google SPL-D3 Multi Color Display & sound level logger Configuration...
- Page 14 Machine Translated by Google Notes...
- Page 15 Machine Translated by Google Index Safety instructions..........3 License configuration ..........21 Introduction..............7 Unlocking the limiter........21 Installation..............8 Live..............22 Connections...........8 Display configuration..........23 Links; ..............9 Microphone............24 Microphone input..........9 luminosity...........24 Usage..............10 Timeslots............24 Technical Specifications..
-
Page 16: Configuration Introduction
Operation Configuration introduction The SPL-D3 is an advanced sound pressure meter that stores the sound clips for a minimum of twelve months. The sound clips can be viewed through the configuration software, or saved externally to a USB drive with a FAT32 file system. Other important data is also saved, such as start-up data, sanction data or any sabotage data. - Page 17 Always use the latest software and firmware versions; these can be found at www.dateq.nl. Configuration This chapter explains the configuration and system settings of the SPL-D3. The settings are normally only changed during installation. You can save all settings in a backup file for later use or restore the original settings after changes.
- Page 18 The installation license is only issued to authorized professional audio installers. If you have an SPL limiter and need to adjust settings, please contact your local distributor or installer. You can find the nearest supplier on the page with sales points on the Dateq website: www.dateq.nl.
- Page 19 Machine Translated by Google Installation DATEQ SPL-D3 manual Live The live view allows you to monitor current measurements on the SPL-D3. These measurements are displayed in green, orange or red.
- Page 20 Machine Translated by Google Installation DATEQ SPL-D3 manual Display configuration Manual configuration of sound parameters. Displays You can set different frequency responses, times and colors for all three displays. Frequency filters: • A filter • C filter • unweighted filter (Z) Response times: •...
-
Page 21: Time Slots
You set the time and date manually by synchronizing the time on the display with the time on the connected computer. Circuit breaker You can connect the SRL1 circuit breaker to the SPL-D3. This can serve as a warning, or it can interrupt the current when the dB value goes over the maximum. - Page 22 Machine Translated by Google Installation DATEQ SPL-D3 manual Calibration Calibration allows you to test all display LEDs and calibrate the microphone. LED test: test all LEDs in green, orange and red. Microphone: First connect a normal, approved Class 2 calibrator to 94 dBA, then click Microphone.
- Page 23 The SPL-D3 keeps track of all measured values and stores them encrypted in its internal memory. It is not possible to change sound data measured with the SPL-D3; attempts to do so result in a defective unit that can only be repaired at the Dateq service desk.
- Page 24 Machine Translated by Google Installation DATEQ SPL-D3 manual...
- Page 25 Machine Translated by Google Installation DATEQ SPL-D3 manual...
-
Page 26: Product Support
Machine Translated by Google Installation DATEQ SPL-D3 manual Product Support For questions about the limiters from the SPL series, accessories or other products, please contact Dateq at: Dateq Audio Technologies BV The Pole 37 Phone: (036) 54 72 222 1351 JG Almere E-mail: info@dateq.nl...
