Etekcity EM-SN8S - Shoulder Massager Manual

Package Contents

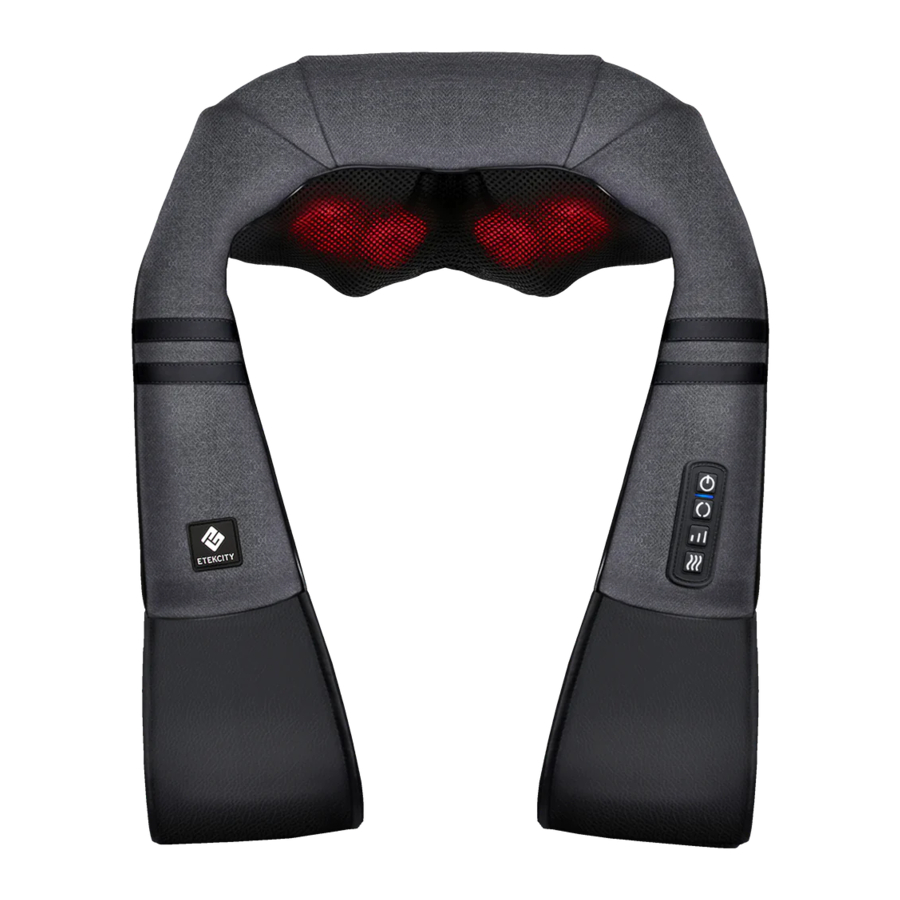

1 x Wireless Shiatsu Neck & Shoulder Massager
1 x Cloth Wrap
1 x AC Wall Adapter
1 x DC Car Adapter
1 x User Manual

Specifications

AC/DC Adapters	Input: 100–240V~ 50/60Hz Output: 12V 2.5A Note: The car adapter is only compatible with 12V DC ports.
Rated Power	30W
Default Operation Time	15 min
Power	18650 Li-ion battery 2200mAh
Battery Life	2–3 hr
Charge Time	≤ 5 hr
Cover Material	Polyurethane
Storage Conditions	-4°–122°F / -20°–50°C
Dimensions	21.9 x 14.4 x 7.3 in / 55.5 x 36.5 x 18.5 cm
Weight	3.75 lb / 1.7 kg

Diagram

Product Diagram

Massager
Massage Nodes
Arm Straps
Adapter Port
Control Panel
Power Button
LED Battery Indicator
Rotation Direction Button
Speed Button
Heat Button
AC Wall Adapter
DC Car Adapter
Cloth Wrap

Using the Device

Note: Before using, make sure the massager is charged (see Charging Your Device).

Position the massager on the target area. If desired, put your arms through the arm straps to gently apply pressure. (See Common Areas of Use).

Press to turn the massager on/off.
Press to change the rotation direction of the massage nodes. The massage nodes will automatically change their rotation direction every 60 seconds.
Press repeatedly to cycle through the massage speed settings: low, medium, and high. The default rotating speed is medium.
Press repeatedly to cycle through the heat settings: low, high, and off. The default heat setting is low.

The massager will automatically turn off after 15 minutes. You can press to turn the massager back on. Do not use the massager for more than 30 minutes at a time.

Cloth Wrap

Placing the Cloth Wrap
Put the cloth wrap on the massager for more comfortable use. Place the wrap around the massager body, and close the fastener strap to secure it to the massager. [Figures 1.1–1.2]

Common Areas of Use

Note: Do not use this massager on the head, elbows, knees, chest, or other body parts that the massager does not fit.

The massager can be used on the neck, upper back and shoulders, lower back, arms, hips, thighs, feet and calves, and areas of your choice where the massager fits. [Figures 2.1–2.7]
Common Areas of Use - Part 1
Common Areas of Use - Part 2
Common Areas of Use - Part 3

Tips for a Better Massage

For a deeper massage, gently pull on the arm straps while using the massager. [Figure 3.1]
Keep hair away from the massage nodes. If necessary, tie up hair before using.
Avoid placing too much tension on the massager (such as pulling too hard, or using your full body weight). This may cause discomfort, pain, or injury.

Stop using the massager immediately if you experience extreme pain or discomfort.

Charging Your Device

Connect the massager's adapter port to an adapter. [Figure 4.1]
Plug in the adapter. The LED Battery Indicator light will blink to indicate that the massager is charging.
When the massager is fully charged, the LED Battery Indicator light will turn solid.

Note:

The battery will take 5 hours to fully charge when it has been completely drained.
When fully charged, the massager will last for 2–3 hours of use, depending on the heat level and massage speed that is selected.
You can use the massager while it is charging.

Battery Indicator Lights

Light	Status
	All 4 Lights: Battery fully charged.
	3 Lights: 75% battery.
	2 Lights: 50% battery.
	1 Light: 25% battery.
	All 4 Lights Flashing: Battery is charging.

Maintenance & Storage

Unplug the massager and allow it to cool before cleaning.
Wipe the massager with a damp or dry cloth. Do not use water, wet cloths, or cleaning detergents, and do not place inside washing machines or dryers.
Store the massager and adapters in a cool, dry place away from sharp edges or pointed objects.
The cloth wrap is machine-washable. Close the fastener strap before washing.

Troubleshooting

Problem	Possible Solution
The device won't turn on	Make sure the massager is fully charged (see Charging Your Device).
The device won't turn on	Unplug the power adapter from the massager and plug it back in.
The unit isn't charging	Make sure the adapter is correctly connected to the massager (see Charging Your Device).
The unit isn't charging	Make sure the adapter is correctly plugged in and the outlet is working properly.
The unit turns off during use	The massager will automatically turn off after 15 minutes. You can press to turn the massager back on. Do not use the massager for more than 30 minutes at a time.
The unit turns off during use	If you have been using the massager for a long time, overheat protection may have activated. Turn the massager off and allow it to cool for at least 1 hour.
The massager doesn't get hot enough while heat is turned on.	Press to choose the high heat setting.
	Wear thinner clothing if necessary. Thicker clothes will absorb or block heat.
	If heat isn't working at all, contact Customer Support (see Customer Support).
You feel pain or excessive discomfort while using the massager.	The massager may be positioned in an area where it doesn't comfortably fit. Stop using the massager and read Important Safety Information and Common Areas of Use.
	You may be applying too much pressure while using the massager. Stop using the massager and allow the affected area to relax. See Tips for a Better Massage.

If your problem is not listed, please contact Customer Support (see Customer Support).

IMPORTANT SAFETY INFORMATION

burn hazard shock hazard
To reduce the risk of burns, fire, electric shock, or other injury, follow all instructions and safety guidelines. Read all instructions before using.

Always unplug this massager from the electrical outlet immediately after using and before cleaning.
Examine your massager's fabric covering for any sign of damage before using. If there are any tears, cracks, or blistering, do not use your massager.
Never use pins or other metallic fasteners with this massager.
Keep dry. Do not use the massager if it is wet.

Do not leave your massager unattended when plugged in. Unplug when not in use, and before putting on or taking off parts.
Do not operate under a blanket or pillow. Overheating can occur, causing fire, electric shock, or other injury.
Close supervision is necessary when your massager is used by or near children, invalids, or persons with disabilities. Do not let children use the massager.
Only use this massager as directed in this manual. Do not use attachments not recommended by Etekcity.
Do not use the massager if has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or partly/fully immersed in water. Contact Customer Support (see Customer Support).
Do not carry the massager by the cord.
Keep the cord and adapter away from heated surfaces.
Do not insert any object into any opening unless directed by the manual.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
To disconnect, turn off all controls, then unplug.
The massager may get hot enough to cause burns on any control setting. Do not use when sleeping. Do not use on infants, disabled persons, or people who are sleeping or unconscious. Do not use on sensitive skin or if you have poor blood circulation. Check the skin in contact with the heated area of the massager frequently to reduce the risk of blistering.
Do not use this massager directly on swollen or inflamed areas. If you have any injury, disease, or reduced feeling affecting the areas you want to massage, then consult a physician before using.
To reduce the risk of electric shock, do not remove the massager covering.
The massager is not intended for medical use or as a substitute for medical attention.
Do not crush the massager.
Do not use the massager for more than 30 minutes at a time.
Do not use the massager while driving or operating heavy machinery.
Do not use the massager while wearing loose clothing or jewelry.
Keep long hair away from massager when in use.
Do not try to repair the massager. Contact Customer Support (see Customer Support) if the massager is malfunctioning.
Positioning your massager incorrectly or applying excess pressure may result in pain or injury.
Not for commercial use. Household use only.
