Pulse fitness CV / Cycle Power Airbike 246D Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

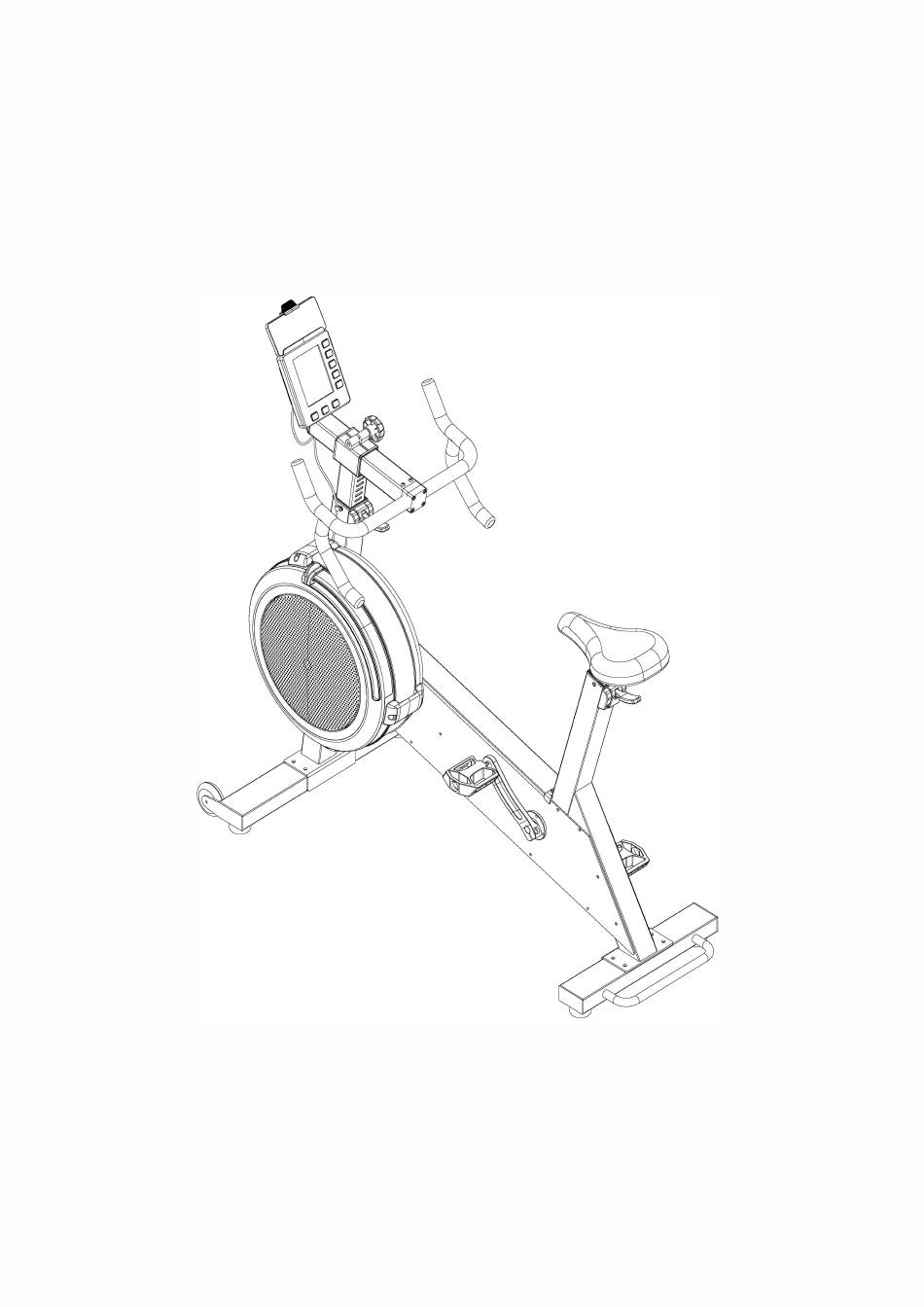

Cf) pulsefitness
CV / Cycle
Power Airbike*
Owners Manual
*Product may vary from pictured
246D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV / Cycle Power Airbike 246D and is the answer not in the manual?

Questions and answers

Related Manuals for Pulse fitness CV / Cycle Power Airbike 246D

Summary of Contents for Pulse fitness CV / Cycle Power Airbike 246D

  • Page 1 Cf) pulsefitness CV / Cycle Power Airbike* Owners Manual *Product may vary from pictured 246D...
  • Page 3 - feel faint, dizzy or exhausted stop exercising immediately. Ensure equipment is checked regularly for signs of damage and wear. Do not use equipment if faulty or damaged until repaired using only genuine Pulse Fitness parts fitted by an authorised person.

  • Page 4: Table Of Contents

    Contents Safety Instructions ........2 Product Parts Drawing ....... 21 Before You Begin ......... 3 Parts List............22 Hardware Identification Chart ....4 Assembly Instructions ....... 6 Computer Instructions ....... 11 Operational Instructions ......19 Maintenance ..........20 Safety Instructions To reduce the risk of serious injury, read the following Safety Instructions before using the BIKE.

  • Page 5: Before You Begin

    Before you begin...

  • Page 6: Hardware Identification Chart

    Hardware Identification Chart This chart is provided to help identify the fasteners used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.
  • Page 7 Hardware Identification Chart After unpacking the unit, open the hardware bag and make sure that you have all the following fasteners. Some fasteners may be already attached to the parts. Drawings Parts No. Parts Description Button Head Cap Screw, M6x12mm #102 Button Head Cap Screw, M6x70mm #114...

  • Page 8: Assembly Instructions

    Assembly Step 1 Attached Front Stabilizer Tube (7) to Front Post Frame (1) using: Socket Head Cap Screw, M8x15mm (114), Spring Washer, M8 (115), and Flat Washer, M8 (82) NOTE: Fully tighten screws at end of this step. Assembly Step 2 Attached Rear Stabilizer Tube (8) to Rear Post Frame (2) using: Socket Head Cap Screw, M8x15mm (114),...
  • Page 9 Assembly Step 3 Take out the Main Frame (3), and the largest cardboard from the carton. Turn over the cardboard to make a platform. Put back the carton upper cover to make a complete carton as another platform for easy assembly. Place Main Frame (3) as illustrated. The Left Fan Shroud (50) should face down on the cardboard, and the other end of Main Frame (3) should be placed onto carton.
  • Page 10 Assembly Step 4 Press Monitor Wire (16) into Wire Pin (93), and tighten it onto Front Post Frame (1), using 1 pc o f Phillips Pan Head Self-Tapping Screw ST4.2x6mm (92). NOTE: Fully tighten screws at end of this step. Assembly Step 5 Insert Handlebar Adjustment Post (5) into Front Post Frame (1) while pressing and holding Adjustment Lever (9).
  • Page 11 Assembly Step 6 Attach Monitor Holder (55) to Handlebar (4) and tighten Monitor Holder (55) and Monitor Wire (16) to Handlebar (4) together, using 1 pc of Wire Pin (93) and 4 pcs of Phillips Pan Head Self-Tapping Screw ST4.2x16mm (96). Attach Monitor (10) to Monitor Holder (55), using 1 pc of Button Head Cap Screw M8x75mm (81), Flat Washer M8 (82), and Nylon Nut M8 (83).
  • Page 12 Assembly Step 7 Tighten Left Peda l (23) to Left Crank (21), and attach Right Peda l (24) to Right Crank (22). Assembly Step 8 To add the Water Bottle Holder (149), attach Water Bottle Holder (149) on Main Frame (3) using: 2 pcs of Phillips Pan Head Screw, M5x12mm(116).

  • Page 13: Computer Instructions

    Computer Instructions +magnetic...
  • Page 14 II. FUNCTION BUTTONS PROGRAM BUTTON: In IDLE mode, press and release PROG to cycle through each program option. Stop on the program of your choosing. You can preset target values for DISTANCE, TIME, and CALORIES, or select an Interval Program of DISTANCE, TIME, and CALORIES. At the end is Memory Mode.
  • Page 15 (RIGHT BUTTON): Press to move around digits for faster setting of desired value. In MEMORY and SUMMARY Mode, use it to view different splits. (LEFT BUTTON): Press to move around digits for faster setting of desired value. In MEMORY and SUMMARY Mode, use it to view different splits. III.
  • Page 16 WATTS & AVG WATTS: Display range: 0 ~ 999. Display current watt value. AVG WATTS displays the total average watts throughout your entire workout. PULSE & DRAG: Display the heart rate from 40 to 220 beats per minute during exercise. To use this function, the user must wear Heart Rate Chest Strap with a 5.3K Hz frequency.
  • Page 17 IV. PROGRAMS The Console Monitor has eight programs: QUICK START, TIME (countdown), DISTANCE (countdown), CALORIES (countdown), INTERVAL PROGRAMS of Time, Distance, and Calories, and MEMORY mode. Press “PROG” to change workout program according to the following sequence: Quick Start  Distance ...
  • Page 18 CALORIES (Countdown) PROGRAM During the workout, the “CALORIES” program will count down from preset value. Workout value setting range: 1-~5000 cal. The program will start once the user starts pedaling. When the program is finished, the monitor will show your workout summary. Press “STOP” button to save into Memory and back to IDLE mode.
  • Page 19 Only program modes workout summary will be saved to MEMORY MODE. Quick Start will not be saved to MEMORY MODE The computer memory can save at most 88 sets of data or 88 splits of data. Computer will only save up to 35 workouts. (Example: When you ride 2KM or 2MILE countdown, you will save 3 sets of data.
  • Page 20 V. BLUETOOTH CONNECTION BLUETOOTH APP: As long as the screen is turned on from sleep mode. Bluetooth will be on and can be discovered on your phone or tablet. Connectivity to apps is through FTMS protocol, can connect to any apps using this protocol to connect. Such as Kinomap or Zwift.

  • Page 21: Operational Instructions

    Operational Instructions I. LOAD ADJUSTMENT Indicator There is a Damper (49) built into the Left Fan Shroud (50). Move the Indicator in the Damper (49) to point to the numbers on the Left Fan Shroud (50) to adjust the load. There are settings from 1 to 32.

  • Page 22: Maintenance

    Maintenance The safety and integrity designed into the BIKE can only be maintained when the BIKE is regularly examined for damage and wear. Special attention should be given to the following: Pedal on Left & Right Pedals (23 & 24) and verify that the Magnetic System provides tension.

  • Page 23: Product Parts Drawing

    Product Parts Drawing...

  • Page 24: Parts List

    Parts List PART# DESCRIPTION Front Post Frame Rear Post Frame Main Frame Handlebar Handlebar Adjustment Post Seat Bracket Front Stabilizer Tube Rear Stabilizer Tube Adjustment Lever Monitor Adaptor Board Generator VR Wire Generator Wire Monitor Wire Large Single Belt Pulley Pulley Bearing Bearing Holder 6004 Ball Bearing 6004ZZ...
  • Page 25 Rubber Bushing 6001 Rubber Bushing 6001 Rubber Bushing 6001 Ball Bearing 6001ZZ Ball Bearing 6001ZZ Ball Bearing 6001ZZ Bearing Holder 6003 Bearing Holder 6003 Bearing Holder 6003 Rubber Bushing 6003 Rubber Bushing 6003 Rubber Bushing 6003 Ball Bearing 6003ZZ Ball Bearing 6003ZZ Ball Bearing 6003ZZ Bearing Spacer Φ40.2xΦ38x54.2mm Bearing Spacer Φ40.2xΦ38x54.2mm...
  • Page 26 Protection Cover Transport Wheel Stabilizer Feet Pad Seat Cushion Left Pinch Roller Bracket Right Pinch Roller Bracket Large Spacer for Long Pinch Roller Φ18xΦ12x29.5mm Small Spacer for Long Pinch Roller Φ10xΦ6.x9.5mm Large Spacer for Short Pinch Roller Φ18xΦ12x8mm Small Spacer for Short Pinch Roller Φ10xΦ6x31mm EVA Pad for Smartphone Holder Base Left Torsion Spring...
  • Page 27 Socket Head Cap Screw, M8x35mm Socket Head Cap Screw, M6x20mm Spring Washer, M6 Socket Head Cap Screw, M6x15mm Button Head Cap Screw, M6x70mm Button Head Cap Screw, M6x75mm Flat Washer, M6 Nylon Nut, M6 Button Head Cap Screw, M6x22mm Hex Head Cap Screw, M6x12mm Phillips Rounded Washer Head Screw, M4x10mm Phillips Pan Head Self-Tapping Screw,...
  • Page 28 Front Handlebar Holder Horizontal Handlebar Adjustment Post Seat Adjustment Post Indicator Plastic Mesh Magnet Bracket Base Smartphone Holder Bungee Cord EVA Pad for Smartphone Holder Shoulder Washer Spring Handlebar Pin Hex Head Cap Screw, M6x20mm Hex Head Cap Screw, M6x40mm Phillips Head Screw, M6x10mm Phillips Flat Head Screw, ST4.2x16mm Water Bottle Holder...
  • Page 29 Failure to carry out maintence on the equipment in this manual could result in serious injury and void your warranty. Please ensure all publications supplied with Pulse Fitness equipment are read and understood. Replacement of defected components should be carried out IMMEDIATELY and/or keep the defective equipment out of use until repaired.
  • Page 30 All information, descriptions and illustrations are given solely as a guide. Actual product specifications may differ due to manufacturing requirements. Pulse Fitness reserve the right to make changes to its products and services, where it considers necessary. Pulse Fitness is part of the Pulse Group of companies. Copyright 2024 Pulse Group. All rights reserved.

This manual is also suitable for:

Cv / cycle power airbike 246d-aaa
