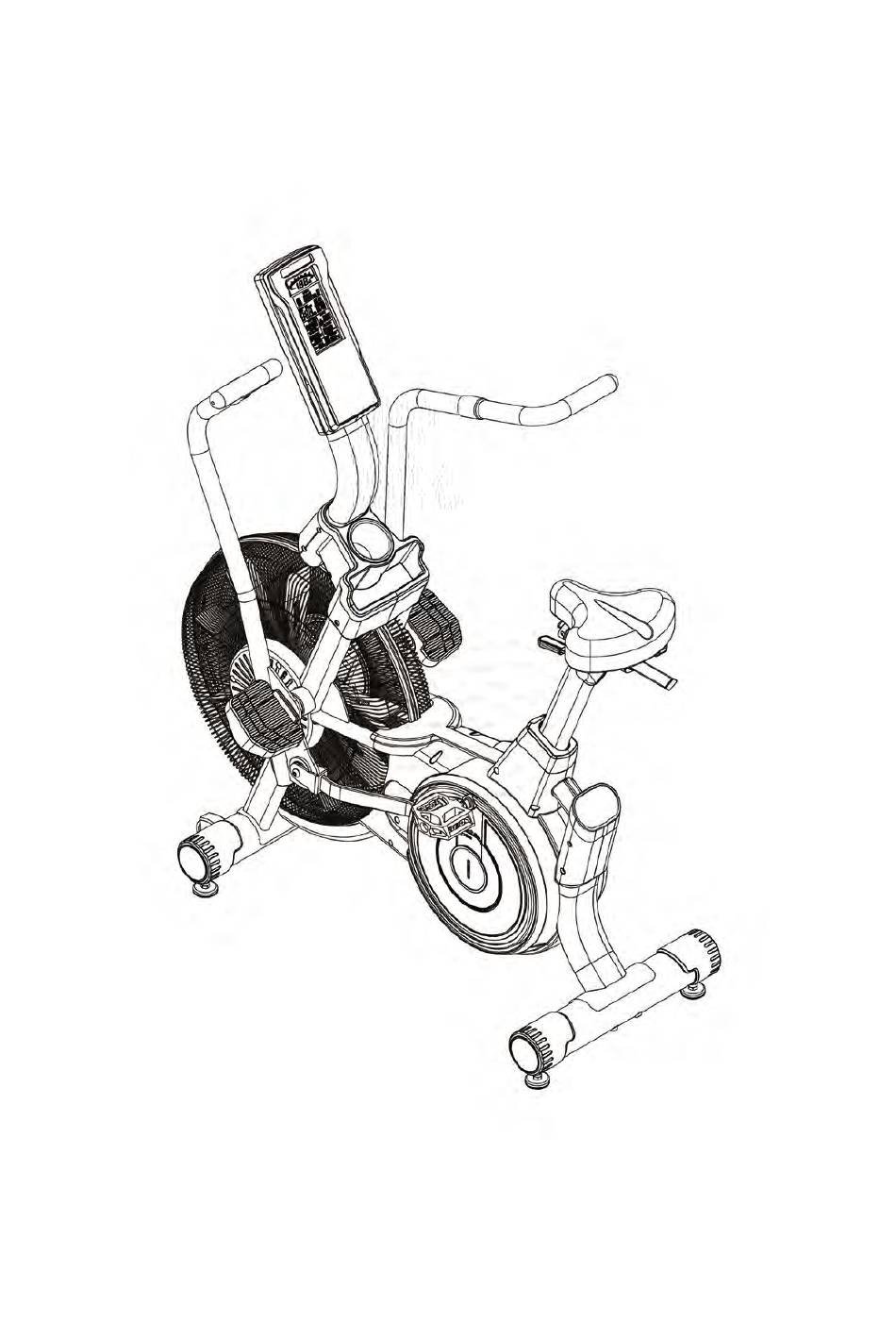

A800 AIR BIKE USER MANUAL
Version: 20170629
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the A800 and is the answer not in the manual?

Questions and answers

Related Manuals for Pulse fitness A800

Summary of Contents for Pulse fitness A800

  • Page 1 A800 AIR BIKE USER MANUAL Version: 20170629...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY FIRST ..……………..…………………………………………………………………….. PARTS AND ASSEMBLY INSTRUCTIONS ……..………………………………………………….. EXPLODED VIEW ..………………………….……………………………………………………….. PARTS LIST ……..…………………………….……………………………………………………….. OVER VIEW OF YOUR AIR BIKE ..……………………………………………………………….. HOW TO OPERATE YOUR AIR BIKE…..………………………………………………………….. TROUBLE SHOOTING ..….…….…………………………………………………………………..

  • Page 3: Safety First

    SAFETY FIRST 1. Read all instructions in this manual before use and keep this user’s manual for further reference. 2. It is owner’s responsibility to ensure that all users of the machine are adequately informed about all safety precautions before use. Use the machine only as described in this manual. 3.
  • Page 4 WARM UP & COOL DOWN The warming up is an important part of your workout. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching out your muscles. Cool down at the end of your workout, repeat these exercises to reduce soreness in tired muscles.
  • Page 5  Before begin to use your air bike: Check all the parts included with shown in the manual. If parts are missed or damaged, do not use it and please return to your local distributor. Ready all your tools & parts. Use originals only, safety cannot be ensured if any unapproved components were used.
  • Page 6 PART...

  • Page 7: Parts And Assembly Instructions

    PARTS AND ASSEMBLY INSTRUCTIONS...

  • Page 12: Exploded View

    EXPLODED VIEW...

  • Page 13: Parts List

    PARTS LIST Item Q’ty Item Q’ty FRAME WASHER M8*Ø23*T1.5 BEARING TPI 6204 RIGHT CRANK CHAIN WHEEL RIGHT CRANK COVER SPEED SENSOR BRACKET CONSOLE SCREW M4*8L CONSOLE POST LEFT COVER REVERSE WHEEL CONSOLE POST RIGHT COVER C20 CLIP RUBBER PAD (BOTTLE) FAN BLADES SEAT(ABS) RUBBER PAD FAN LEFT COVER...

  • Page 14: Overview Of Your Air Bike

    OVERVIEW OF YOUR AIR BIKE CONSOLE RIGHT HANDLEBAR LEFT HANDLEBAR BOTTLE HOLDER RACK FOOTREST HEIGHT ADJUSTMENT FAN MESH SADDLE FAN MIDDLE COVER SADDLE POSITION ADJUSTMENT REAR POST COVER LINKAGE ARM ADJUSTABLE FOOT CRANK MID COVER CRANK COVER...
  • Page 15 RPM DISPLAY PROGRAM DISPLAY ENTER / MODE START STOP DOWN TARGET DISTANCE TARGET CALORIES TARGET TIME TARGET CUSTOM TARGET HR INTERVAL TRAINING INTERVAL TRAINING INTERVAL TRAINING INTENSIVE TRAINING  CONSOLE SPECIFICATION MANUAL (Manual Setting Program) 12 PROGRAM ( Built-in program) TARGET HR LCD DISPLAY SCREEN (including RPM, SPED, TIME, DISTANCE, CALORIES, WATTS, HEART RATE, TARGET HR data display screen)
  • Page 16  TURN ON CONSOLE Please press any console button to turn on OPTION 1 console. Then, please follow OPTION 3. Please step bike pedal one circle to turn on console. Then, please follow OPTION OPTION 2 After turning on console, LCD screen will show 「AGE 30」...
  • Page 17  CONSOLE DISPLAY RPM DISPLAY SPEED & AVG DISPLAY PROGRAM & SETTING DISPLAY TIME DISPLAY WATTS & AVG DISPLAY DISTANCE DISPLAY CALORIES DISPLAY TARGET HR DISPLAY AGE SETTING...
  • Page 18  12 BUILT-IN PROGRAMS AIR BIKE has 12 built-in programs (including 1 manual program). You may press UP or DOWN to select programs or settings, then press START to start. Program 1 Program 2 Program 3 Program 4 Interval Training (quick button) Interval Training (quick button) Interval Training (quick button) Interval Training (quick button)
  • Page 19 ADJUSTABLE PROGRAM BUTTON SCREEN DISPLAY PRESET SETTING Target Custom Exercise 31 sec. Exercise sec. Interval Rest 31 sec. Rest sec. Training Repeat 12 cycle Repeat cycle Target Time Target: 30 minutes Target time Target Distance Target: 16 KM Target distance Target Calories Target: 10 calories Target calories...
  • Page 20 Exercise 11 sec. Exercise sec. Interval Rest 51 sec. Rest sec. Training Repeat cycle Repeat 8 cycle Exercise 61 sec. Exercise sec. Interval Rest 91 sec. Rest sec. Training Repeat cycle Repeat 12 cycle Distance Target: 8 KM / Intensive Target distance 5MILE Training...

  • Page 21: How To Operate Your Air Bike

    HOW TO OPERATE YOUR AIR BIKE  SELECT TRAINING PROGRAM 1. Quick button：Select one of the 10 preset programs. 2. Use UP or DOWN to select built-in programs 3. Press START into manual mode, after turn-on console and setup 「AGE」. 4.
  • Page 22 Start program: press START to start your program. If your heart rate (HR) is lower than MHR 60%, 「INCREASE SPEED」 will flicker. Then, you will need more exercise to reach your target. If your HR is higher than MHR 80%, 「DECREASE SPEED」will flicker. You will need to lower your exercise.

  • Page 23: Trouble Shooting

    TROUBLE SHOOTING ISSUE CAUSE INSPECTION & ELIMINATING Replace two new batteries AA-size (UM-3), and make sure positive No Power On Battery Power (can’t turn on) NOT enough (+) & negative (-) pole at the right position. Replace two new batteries AA-size (UM-3), and make sure positive Battery Power Display Off NOT enough...
  • Page 24 Remove the cover and screws. Then adjust belt tension. After adjusting, mount back cover and screw. Slipping / belt tension No resistance (during riding) Please remove crank mid cover, then crank cover. You may replace the damaged part. After replacing, mount back the crank mid & crank covers. Noise Part damaged (during riding)
