Summary of Contents for Wortmann LCD/LED 2465W PV white

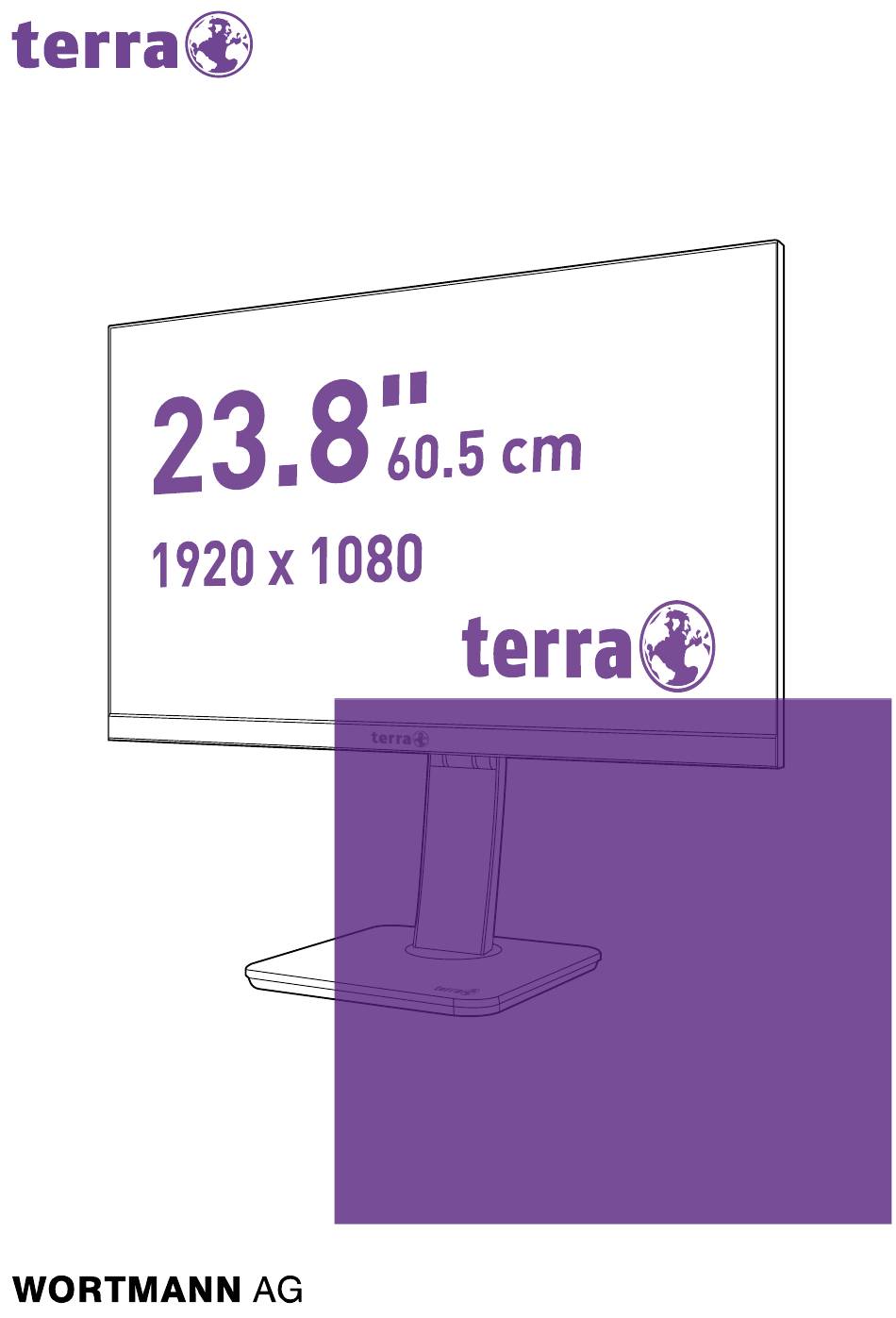

- Page 1 LCD/LED 2465W PV white USER MANUAL + Deutsch + English + Français + Español + Italiano + Pyccкий + Polski + Česky + 繁體中文 + 日本語...
- Page 2 Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. This monitor has been tested and found compliant with the CE mark. These limits are designed to provide proper protection against harmful interference to a residential installation.
-
Page 3: Table Of Contents
Content Safety Precautions ....................... 1 First Setup ........................... 2 Quick Installation ......................... 3 Illustration for turning the high adjustable stand base ............5 Front View of the Product ....................6 Rear View of the Product ..................... 7 Using On Screen Display (OSD) Functions ................. 8 Supporting Timing Modes .................... -
Page 4: Safety Precautions
Pay attention to all cables connected to the monitor against stumble hazards. According to WEEE regulation, this monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information from our website to handle it. www.wortmann.de... -
Page 5: First Setup
First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories: AC/DC Power Adapter ● HDMI cable AC Power cable ● Quick start guide Warranty card ... -
Page 6: Quick Installation
Quick Installation 1. Connect Video cable (HDMI cable) Make sure both monitor and computer are powered OFF. Connect the HDMI cable from HDMI output of computer to the HDMI input of the monitor. Or connect DisplayPort cable *Optional Connect the DisplayPort cable from DisplayPort output of computer to the DisplayPort input of the monitor. - Page 7 Example: Earphone USB-C HDMI Power cable DisplayPort cable Laptop HDMI cable USB-C cable...
-
Page 8: Illustration For Turning The High Adjustable Stand Base
Illustration for turning the high adjustable stand base (1) Tilt Angle Tilt UP: 20° Tilt DOWN: -5° (2) Lift Range 120mm (3) Swivel Angle Left: 45° Right: 45° (4) Pivot Angle Left: 90° Right: 90°... -
Page 9: Front View Of The Product
Front View of the Product ❶ ❷ Power ON / OFF (press the button) ◄ OSD Menu On / Off ❶ ► Confirm Select ▲ Scroll Up / Increase ▼ Scroll Down / Decrease ❷ LED Indicator... -
Page 10: Rear View Of The Product
Rear View of the Product USB-C HDMI I/O Port USB-C HDMI ❶ ❷ ❸ ❹ ❺❻ ❶ Cable Management ❷ DisplayPort input USB-C input ❸ Note: USB-C port does not support power charging. ❹ HDMI input Earphone output Note: Adjustment of the volume control to other settings than the ❺... -
Page 11: Using On Screen Display (Osd) Functions
Using On Screen Display (OSD) Functions Power ON / OFF (press the button) When in OSD menu, press more than 3 seconds to switch display power Display main menu ◄ Exit from OSD menu Manual adjust mode select for USB-C, DisplayPort, HDMI mode ►... - Page 12 the motion pictures. PRESS ►key to adjust the OD On or Off. ECO: Allows the user to turn the ECO On or Off. BRIGHTNESS, CONTRAST and DCR adjustment disabled when ECO is active. Press ► key to adjust the ECO On or Off. IMAGE ASPECT WIDE...
- Page 13 COLOR TEMP. COLOR TEMP. NORMAL GREEN BLUE ：EXIT ：SELECT COLOR TEMP.: To select the color for improving brightness and color saturation in COLOR TEMP. COLOR TEMP.: To adjust the default picture color. It contains 4 user-selectable presets. NORMAL: Adds red to screen image for warmer white and richer red. COOL: Adds blue to screen image for cooler white.
- Page 14 ▲: move OSD to the right, ▼: move OSD to the left. OSD V. POS.: To vertically adjust the OSD position. ▲: move OSD to the up, ▼: move OSD to the down. OSD TIMER: To automatically turn off On Screen Display (OSD) after a preset period ...
-
Page 15: Supporting Timing Modes
Supporting Timing Modes 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA... -
Page 16: Technical Information
Technical Information Technical Specification 60.5 cm (23.8")(Low Blue Light) LCD Panel VESA DPMS compatible Power Management Off Mode, ≤ 0.3 W Full HD 1920 x 1080 max. Displayable Resolution Vertical Frequency 100 Hz max. Pixel Dimension 0.2745 x 0.2745 mm LCD Display Color 16.7 million Active Display Area... -
Page 17: Care And Maintenance
Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place any heavy things on top of your monitor. ... - Page 18 Pour plus d'information sur le recyclage, veuillez contacter votre centre de recyclage agréé. Votre attitude quand au recyclage améliorera l'avenir de la planète et créera un environnement de vie de qualité pour les générations futures. Wortmann AG Bredenhop 20 D-32609 Hüllhorst Tel.
- Page 19 License and to the absence of any warranty; and give any other recipients of the Program a copy of this WORTMANN AG License along with the Program.
- Page 20 with a work based on the Program) on a volume of a storage or distribution medium does not 10. If you wish to incorporate parts of the Program into other free programs whose distribution bring the other work under the scope of this License. conditions are different, write to the author to ask for permission.
