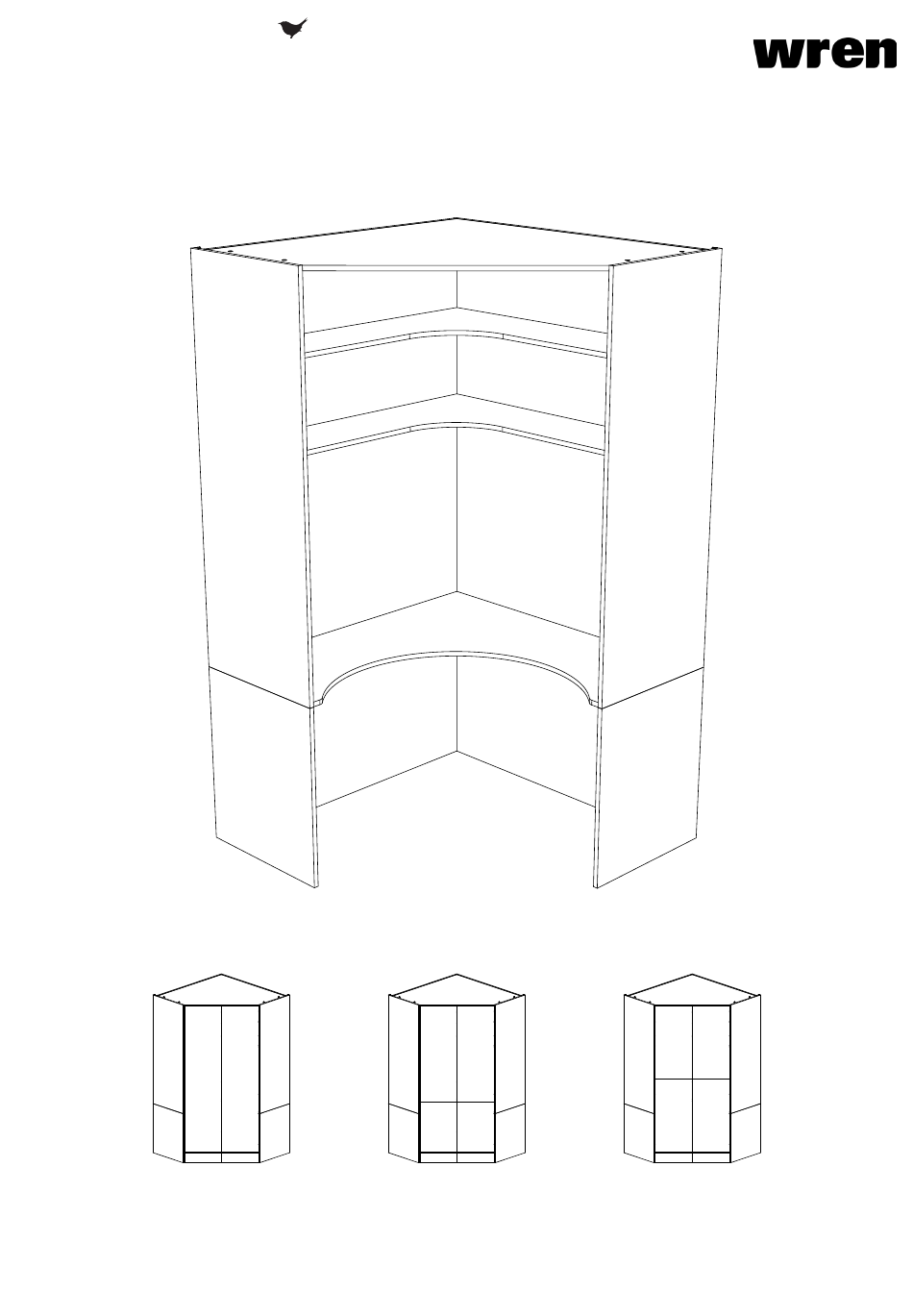

- Page 1 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide 1 Door 70/30 Door 50/50 Door For Internal Use: FI.WR.INS.114_WKIN00175_Diagonal_Corner_Office_Rev4...
-
Page 2: Before You Start
TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Screws and fixings for attaching to walls are not provided as these vary depending on materials and construction. - Page 3 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide End Panel End Panel End Panel End Panel Fixed Shelf Fixed Shelf Fixed Shelf Top Panel (eA) (eB) (eC) (eD) (sE) (sF) (sG) (sH) 1Dr Option 70/30 Option 50/50 Option Back Panel Back Panel Back Panel...
- Page 4 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide (F) x70 (W) x30 (P) x42 (K) x16 (L) x40 (H) x30 Wooden Dowel Cam Dowel 45mm Screws 30mm Screws 15mm Screws Cam Lock Fixing Plate (U) (M) x4 Door Buffer L Bracket LGE Cover Cap Hinge...
- Page 5 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 1. Seat 4 cam dowels (W) into holes in end panel (eC) as shown. Step 2. Seat 2 wooden dowels (F) into holes in panel (sE) as shown. For Internal Use: FI.WR.INS.114_WKIN00175_Diagonal_Corner_Office_Rev4 Page 4...
- Page 6 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 3. Attach panel (sE) to end panel (eC), using cam dowels (W) and wooden dowels (F) in positions as shown. Step 4. Insert 2 cam locks (H) into holes in panel (sE) as shown. Do NOT tighten until step 13.
- Page 7 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 5. Seat 8 wooden dowels (F) into holes in panel (sE) and 3 wooden dowels (F) into holes in end panel (eC) as shown. Step 6. Attach back panel (bM) to end panel (eC) and panel (sE), using cam dowels (W) and wooden dowels (F) in positions as shown.
- Page 8 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 7. Secure back panels (bM) to panel (sE), using 3 x 45mm screws (P) as shown. Step 8. Insert 2 cam locks (H) into holes in back panel (bM) as shown. Do NOT tighten until step 13.
- Page 9 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 10. Seat 2 wooden dowels (F) into holes in panel (sE) and 3 wooden dowels (F) into holes in back panel (bN) as shown. Step 11. Seat 4 cam dowels (W) into holes in end panel (eD) as shown. Step 12 Attach end panel (eD) to back panel (bN) and panel (sE), using cam dowels (W) and wooden dowels (F) in positions as shown.
- Page 10 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 13. Insert 2 cam locks (H) per panel into holes in back panel (bN) and in panel (sE) as shown. Hand tighten all cam locks (H), this will expand cam dowels (W) and tighten the unit together. For Internal Use: FI.WR.INS.114_WKIN00175_Diagonal_Corner_Office_Rev4 Page 9...
- Page 11 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 14. Ensure the unit is positioned correctly and level. Secure the unit to wall, using L brackets LGE. Use 2 x 15mm screws (L) to secure each of the L brackets LGE to the end panel at either side.
- Page 12 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 15. Seat 11 cam dowels (W) into holes in end panel (eA) as shown. Step 16. Seat 2 wooden dowels (F) per panel into holes in panels (sH) and (sF) as shown. Seat 1 wooden dowel (F) per panel into hole in panels (sG) as shown.
- Page 13 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 17. Attach panels (sH), (sG), (sF), to end panel (eA), using cam dowels (W) and wooden dowels (F) in positions as shown. Step 18. Insert 2 cam locks (H) per panel into holes in panels (sH), (sG) and (sF) as shown. Do NOT tighten until step 26.
- Page 14 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 18. Seat 8 wooden dowels (F) per panel into holes in panels (sF), (sG) and (sH) and 4 wooden dowels (F) into holes in end panel (eA) as shown. For Internal Use: FI.WR.INS.114_WKIN00175_Diagonal_Corner_Office_Rev4 Page 13...
- Page 15 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 19. Attach back panel (bK) to end panel (eA) and panels (sF), (sG), (sH), using cam dowels (W) and wooden dowels (F) in positions as shown. Once back panel (bK) is in position, ensure it is flush & square with bottom of end panel (eA). Secure back panel (bK) to panels (sF), (sG), (sH), using 12 x 45mm screws (P).
- Page 16 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 21. Attach back panel (bL) using wooden dowels (F) already positioned in panels (sF), (sG), (sH) as shown. Step 22. Secure back panel (bL) to back panel (bK) and panels (sF), (sG) and (sH), using 19 x 45mm screws (P) as shown.
- Page 17 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 23. Seat 2 wooden dowels (F) per panel into holes in panels (sF) and (sH) as shown. Seat 1 wooden dowel (F) per panel into hole in panels (sG) as shown. Seat 4 wooden dowels (F) into holes in back panel (bL) as shown.
- Page 18 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 24. Seat 11 cam dowels (W) into holes in end panel (eB) as shown. Step 25. Attach end panel (eB) to back panel (bL) and panels (sH), (sG), (sF), using cam dowels (W) and wooden dowels (F) in positions as shown.
- Page 19 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 26. Insert 3 cam locks (H) into holes in back panel (bL) and 2 cam locks (H) per panel in panels (sH), (sG), (sF). Step 26. Hand tighten all cam locks (H). This will expand cam dowels (W) and tighten the unit together. For Internal Use: FI.WR.INS.114_WKIN00175_Diagonal_Corner_Office_Rev4 Page 18...
- Page 20 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 27. Make sure the bottom unit is secured to the walls before positioning the top unit. Place the top unit on the bottom unit, ensure end panels (eA) and (eB) are flush with end panel (eC) and (eD).
- Page 21 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 14. Once top and bottom units are connected. Secure the unit to wall, using L brackets LGE. Use 2 x 15mm screws (L) to secure each of the L brackets LGE to the end panel at either side.
- Page 22 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide 2250 Step 19. Attach hinge plates onto end panel (A) or (B) to suit as shown using screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan. 2070 - 70/30 2070 - 50/50 &...
- Page 23 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide 2250 Step 19. Attach hinge plates onto end panel (A) or (B) to suit as shown using screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan. 2250 - 70/30 2250 - 50/50 HINGE POSITION...
- Page 24 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide 2250 Step 19. Attach hinge plates onto end panel (A) or (B) to suit as shown using screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan. 2250 - 1 Door HINGE POSITION 2156mm...
- Page 25 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Hinge Attachment and Adjustment Doors supplied in accordance to customer specific kitchen plan Step 1. Insert hinges into frontal hinge holes provided, secure hinges with the 50/50 1 DOOR 2 x screws and hinge dowels already Hinge dowels &...
- Page 26 TOWER UNIT 2070 & 2250 Diagonal Corner Office Assembly Guide Step 4. Adjust hinges to suit, using the highlighted screws shown. Step 5. Fit cover caps to hinges and adjust soft-close to suit. The top and bottom hinges MUST be adjusted to the SAME STRENGTH. For Internal Use: FI.WR.INS.114_WKIN00175_Diagonal_Corner_Office_Rev4 Page 25...
