- Page 1 Tel: +1-800-832-3873 E-mail: techline@littelfuse.com www.littelfuse.com PGR-3200 MANUAL INSULATION MONITOR REVISION 3-F-032320 Copyright © 2020 Littelfuse. All rights reserved. Document Number: PM-1025-EN...
- Page 2 Page i PGR-3200 Insulation Monitor REV. 3-F-032320 This page intentionally left blank.
-
Page 3: Table Of Contents
5 PGH-6000 Outline and Mounting Details ........5 6 PGA-0510 Analog Ohm Meter ............5 DISCLAIMER Specifications are subject to change without notice. Littelfuse, Inc. is not liable for contingent or consequential damages, or for expenses sustained as a result of incorrect application, incorrect... - Page 4 Page iii PGR-3200 Insulation Monitor REV. 3-F-032320 This page intentionally left blank.
-
Page 5: General

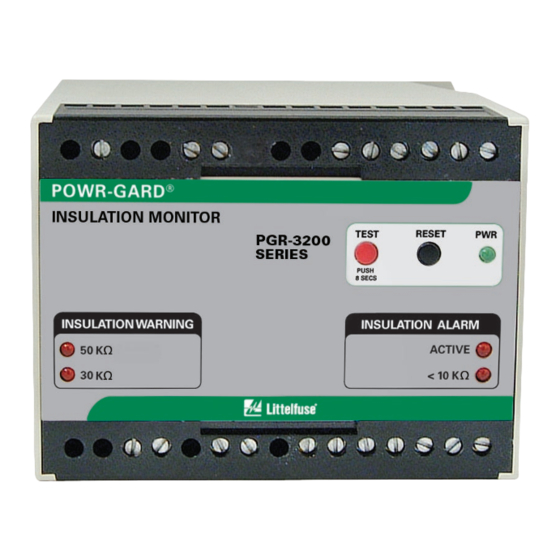

Page 1 PGR-3200 Insulation Monitor REV. 3-F-032320 1. GENERAL The PGR-3200 Insulation Monitor measures phase- 2.3.4 Insulation Alarm to-ground resistance to detect electrical-insulation When insulation resistance measures 10 kΩ or failure in an ungrounded power utilization system. It less, the red LED labelled <10 kΩ will light. provides three levels of detection with a 50-kΩ... -
Page 6: Pgr-3200 Outline And Mounting Details
Page 2 PGR-3200 Insulation Monitor REV. 3-F-032320 24 Vac SUPPLY (SEE NOTE) NOTES: PGH-5000 11 12 PHASE L2/N <1.3 KV 10 k 50 k INSULATION MONITOR INSULATION INSULATION (Alarm) (Warning) 1. DIMENSIONS IN MILLIMETRES (INCHES). PGR-3200 SERIES Remote Reset or Latching Mode 2. -
Page 7: Installation
Page 3 PGR-3200 Insulation Monitor REV. 3-F-032320 3. INSTALLATION NOTE: Mounting, terminal-block connections, and wiring must conform to applicable local electrical 24 Vac codes. Check all applicable codes prior to installation. SUPPLY (SEE NOTE) The PGR-3200 can be surface or DIN-rail mounted PGH-5000 (see Figure 1). -
Page 8: Pgh-5000 And
Page 4 PGR-3200 Insulation Monitor REV. 3-F-032320 95.2 (3.75) 44.5 (1.75) (0.38) NOTE 2 POWR-GARD E E M PGH-5000 Æ 5kV HIGH TENSION COUPLER PGH-5000 5 KV HIGH TENSION Æ COUPLER 5,000 Vac Max. Coupling Voltage: PGH-5000 Current to Ground: 2.5 mA Max. -
Page 9: Pgh-6000 Outline And Mounting Details
Page 5 PGR-3200 Insulation Monitor REV. 3-F-032320 145.0 (5.71) 98.5 120.0 12.50 (3.88) (4.72) (0.49) POWR-GARD POWR-GARD E E M PGH-6000 Æ 6kV HIGH TENSION COUPLER 6kV HIGH TENSION COUPLER PGH-6000 PGH-6000 6 KV HIGH TENSION COUPLER Æ Coupling Voltage: 6,000 Vac Max. -
Page 10: Technical Specifications
Page 6 PGR-3200 Insulation Monitor REV. 3-F-032320 4. TECHNICAL SPECIFICATIONS Reset ........Front-Panel Button and PGR-3200 Remote N.C. Contacts Supply 120 V option .......5 VA, 120 V ac, 24 V ac Test ........Front-Panel Button and (+10, -15%) 50/60 Hz Remote N.O. -
Page 11: Pgh High-Tension Couplers
Page 7 PGR-3200 Insulation Monitor REV. 3-F-032320 6. PERFORMANCE TEST PGH High-Tension Couplers Maximum Line Voltage: 6.1 Insulation Test PGH-5000 ......5,000 V ac Perform this test with the starter open and PGH-6000 ......6,000 V ac appropriate lock-out procedures. Connect a 20 kΩ... -
Page 12: Appendix A Pgr-3200 Revision History
Page 8 PGR-3200 Insulation Monitor REV. 3-F-032320 APPENDIX A PGR-3200 REVISION HISTORY MANUAL MANUAL PRODUCT REVISION RELEASE DATE REVISION (REVISION NUMBER ON PRODUCT LABEL) March 23, 2020 3-F-032320 April 9, 2018 3-E-040918 November 19, 2015 3-D-111915 August 4, 2015 3-C-080415 Manual Revision History REVISION 3-F-032320 SECTION 2...
