Lucci fini AKMANI GX53 Installation Instructions Manual

Installation Instructions
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before assembly, installation and use of the product. Please keep the instructions for future
reference.
Warranty
•
This product is covered by a 12 month warranty. Please retain proof of purchase.
•
Warranty will be void if there is any damage due to improper usage or modification to the product.
•
Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void
warranty.
•
IN EUROPE – If you are a European customer please contact the retail outlet where the light kit was purchased
for warranty service.
Installation requirements
•
NOTE: This light kit must only be installed onto the Lucci Akmani Fan – SKU# 210506, 210507.
It must NOT be used for any other purpose.
•
Must be installed by a licensed electrician.
•
All wiring and installation of the light fitting must adhere to local and national wiring rules.
•
Do not exceed the maximum wattage rating.
•
Select a suitable location for installation;
This product is suitable for indoor use only.
-
Ensure the fitting is not installed next to any air vents and is not in any moist or damp areas.
-
•
Take care not to pull any electrical wires during unpacking as this may damage the connection.
•
Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
•
Check whether the luminaire has been damaged during transport. Do not operate/install any product which
appears damaged in any way. Return the complete product to the place of purchase for inspection, repair or
replacement.
•
Ensure power to the circuit you are working on has been switched OFF before commencing any electrical work.
Installation directions
1. Remove the bottom cover of the fan by turning anti-clockwise. (Fig. 10a)
2. Remove the bottom cover adaptor (2) from the light kit housing (1) by loosening the 3 screws (3). Fig.10b
3. Connect the wires of the light kit to the motor via the quick connector (1) . (Fig. 10c)
4. Install the light kit on the fan light kit housing then secure it by locking the three screws (2). (Fig. 10c)
Install the GX53 lamp (not included) to the light kit. Do not exceed the maximum power rating. (Fig.10d)
5.
1 | P a g e

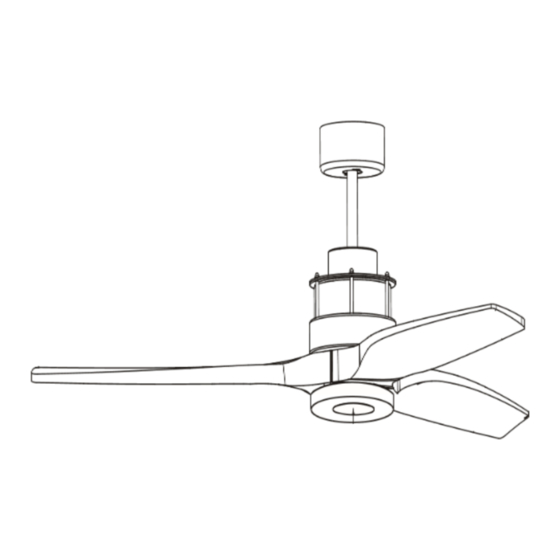

LUCCI AKMANI FAN LIGHT KIT
SKU# 510506, 510507, 510508
Rated Voltage 220-240V~ 50Hz
V1.0 2020.11 (EU)
