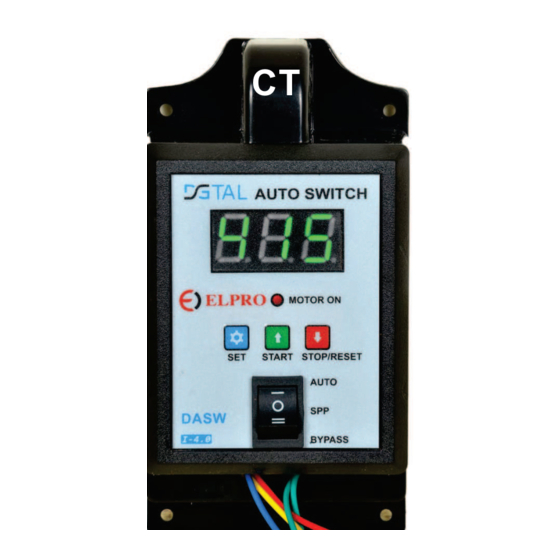

DASW-CYC – DIGITAL AUTO SWITCH
B
SUPPLY
Y
R
R Y B
FEATURES
Superior MCU based technology
Ø
With Digital VOLT-AMP
Ø
Operating mode : Auto / SPP / Bypass
Ø
Fault Protection : Single phasing, Phase reversal, Voltage unbalance, Dryrun, Overload
Ø
Auto on delay time : 30 to 300 Second
Ø
Dryrun reset time : 0 to 999 Minute
Ø
Operating Voltage : 150 to 500 VAC
Ø
Overload Range : 4 to 40 AMP
Ø
Dryrun Range : 2 to 36 AMP
Ø
Models : DASW-DST DASW-OVL DASW-CYC
Ø
OPERATING MODE
AUTO - In Auto mode, Motor automatically start after on delay time when the Healthy supply resume /
Ø
fault is cleared. Hence no need to push the starter's START button to start the motor.
SPP - In SPP mode, the user has to push the starter's START button manually to start the motor.
Ø
BYPASS - In Bypass mode, all the protections will get bypassed. Hence the unit will not OFFER any
Ø
protection against any fault.
ELPRO CONTROLS, Ahmedabad, Gujarat, India
www.elprocontrols.com
Email : elprocontrols@gmail.com hello@elprocontrols.com
CT
N V S1 S2

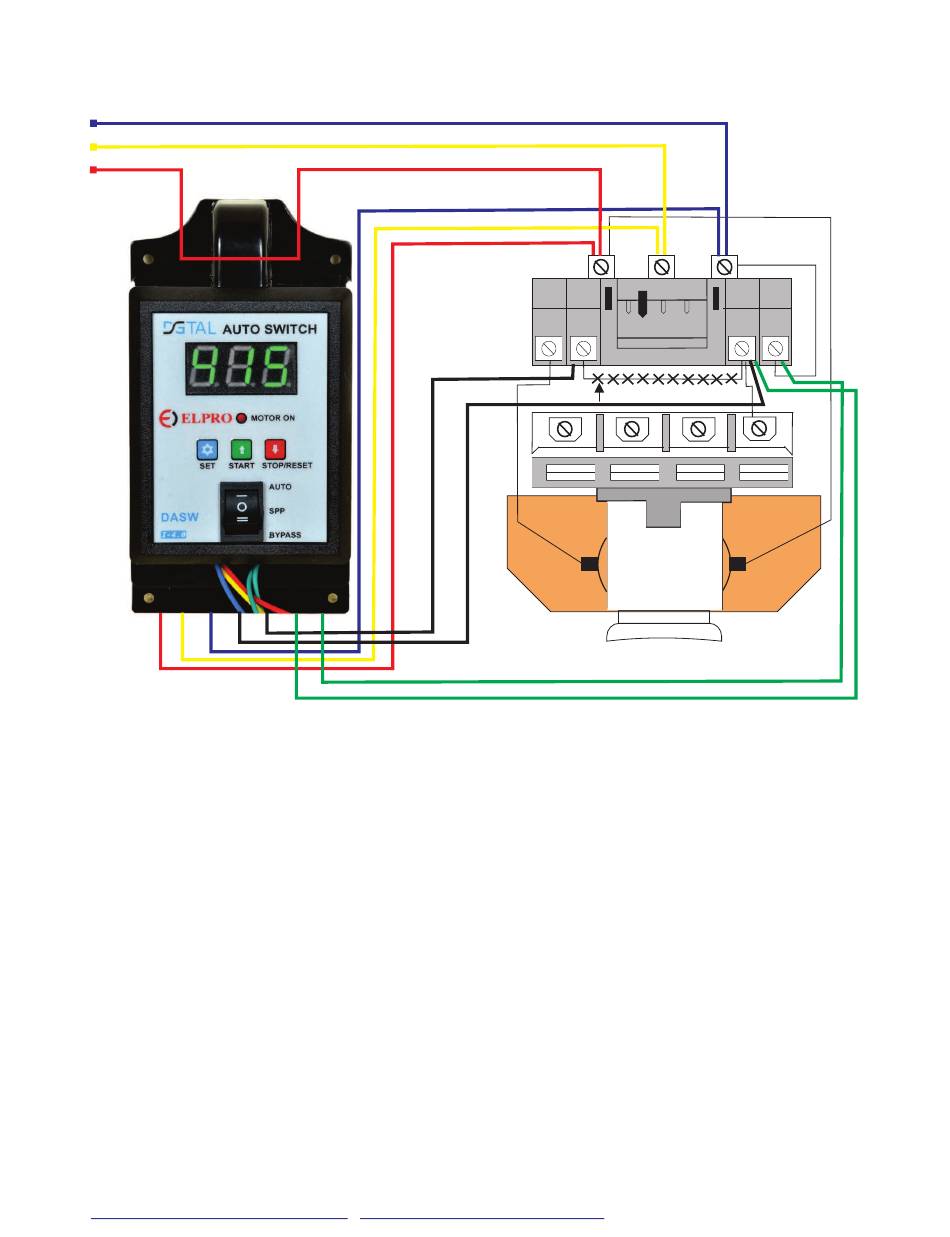

Wiring diagram of DASW With LT/LK Starter
meter
, ,
/
R Y B
OFF 6 8 10 ON
P1 P2
REMOVE THIS WIRE
P3 P4
