Summary of Contents for FISCHER FXC 85
- Page 1 Setting tools FXC 85 and FGC 100. Quick and easy fixing in concrete and steel.

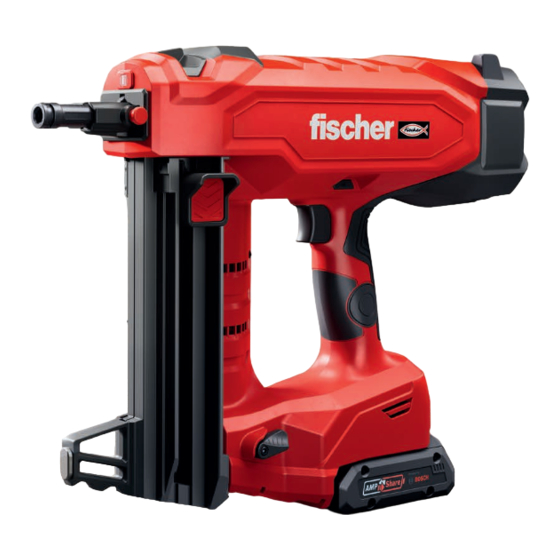

- Page 2 Setting tools FXC 85 and FGC 100 FXC 85. Battery-actuated setting tool for quick fixing in concrete and steel. Work light for perfect illumination of the work area. Simple adjustment of the setting depth to various applications. Interchangeable nose piece for extended applications.
- Page 3 · Quick and easy release of the magazine to remove · The user interface on the FXC 85 enables the tool to be switched jammed nails. on/off and serves as a status display for the battery and the tool as well ·...
- Page 4 Setting tools FXC 85 and FGC 100 FGC 100. Quick and easy fastening in concrete and steel. Easy nail depth adjustment to adapt for various applications. Interchangeable nose piece for extended applications. Easy nail push button facilitates the quick nail High performance gas loading.
- Page 5 Advantages at a glance · The fischer gas actuated fastening tool is suitable for · The 100 joules power of the fischer gas actuated fastening tool a fast and reliable installation of e. g. drywall tracks FGC 100 ensures correct penetration into the working surface without and electrical connections in all directions –...
- Page 6 The E-Clips range covers a wide electrical clips to be plugged in and held for easy variety of electrical applications and convenient installation The FXC 85 & FGC 100 is perfect for fixing to ceilings due to its optimal weight balance Light-duty building Composite decks...
- Page 7 The embedment depth for maximum loads in solid brick is ≥20 mm. Further information on loads, embedment depths and the optimum selection of fixing solutions can be found in the load table sheet for the FXC 85 and FGC 100.
- Page 8 1x GBA 18V 4.0 Ah Lithium-ion battery (US) 500 fixings per charge, 4.0 Ah FXC 85 E-Fix nose 571029 1x FXC 85-N E-Fix For the use of fischer electrical fixings (plastic) for direct fixing * Country-specific, possibly further country variants ** With 4.0 Ah ProCore/GBA battery...
- Page 9 > 8,000 fixings per charge – at least 2.5 Ah FGC 100 E-Fix nose FGC 100-N E-Fix 554869 For the use of fischer ETICS plugs TFD 30 and 50 and fischer electrical fixings (plastic) for direct fastening Possibly further variants. Country specific charging plug.
- Page 10 Setting tools FXC 85 and FGC 100 Assortment FXC 85 & FGC 100 Assortment for fixings with the fischer setting tools FXC 85 and FGC 100 More information: www.fischer-international.com Standard nails High performance nails Magnetic clip Fuel cell Cleaning kit...
- Page 11 Setting tools FXC 85 and FGC 100 Accessories Accessories Pipe clip Cable bow Cable harness Fastening tie Washer Perforated steel banding Textile web strapping ETICS plug Technical specification Length Width Height Material Sales unit Article description Item No. [mm] [mm]...
- Page 12 Setting tools FXC 85 and FGC 100 Loads Standard nails DFN and high-performance nails DFNH Recommended loads of a single nail in the respective building material as multiple use with at least 6 nails per attachment part. Building material Setting depth h...
- Page 13 Setting tools FXC 85 and FGC 100 Many brands. Many machines. One battery system. FULL COMPATIBILITY LEADING BATTERY TECHNOLOGY PROFESSIONAL EXPERTISE SAVE TIME AND MONEY PLACE AND EFFORT SPARED A GROWING COMMUNITY AMPShare is the cross-brand battery system for professionals in trade and industry. With just one shared battery system you can switch flexibly between professional tools and brands –...
- Page 14 Setting tools FXC 85 and FGC 100 All services at a glance. Guarantee 5 years spare parts availability When you purchase a new tool, We guarantee an 5-year you receive 2 years guarantee. availability of spare parts If repairs are arising during this...
- Page 15 Setting tools FXC 85 and FGC 100 Process of the fischer service. Pack Order return service and documents Remove the fuel cell and nails Please contact your fischer from your defective tool and contact person in order to put it inside the tool case/ arrange the return service stable shipping carton.
- Page 16 Dealer: www.fischer-international.com fischer stands for Fixing Systems Automotive fischertechnik Consulting Electronic Solutions fischerwerke GmbH & Co. KG Klaus-Fischer-Straße 1 · 72178 Waldachtal Germany P +49 7443 12 - 0 www.fischer-international.com · info@fischer.de...
