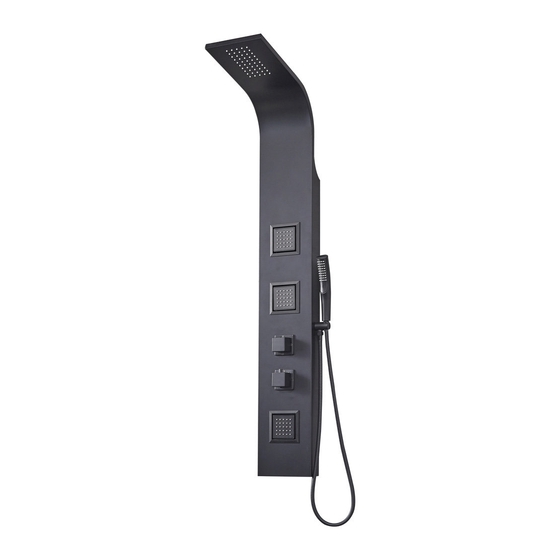

Round shower tower panel

Advertisement

Round Shower Tower Panel
Fitting Instructions
Please follow them carefully and
leave this manual with end user
V2.01.24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Milan SP003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Victorian Plumbing Milan SP003

  • Page 1 Round Shower Tower Panel Fitting Instructions Please follow them carefully and leave this manual with end user V2.01.24...
  • Page 2: Tools Required For Installation

    Installation Guide Before installation, please read this guide carefully. We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage.
  • Page 3: Installation

    Notice: Before assembly; flush the water supply pipes thoroughly to remove any debris (allow the main stopcock open for about 3 minutes), otherwise dirt particles might affect the function of the shower panel. Installation Diagrams are for illustration purposes only. Your Shower tower may superficially differ from this drawing however the installation guide steps still apply.
  • Page 4 Step 2: Calculate the height of the shower tower, and mark the bracket position on the wall. Drill the holes in the wall using an appropriately sized drill bit and insert the rawl plugs included. Fix the brackets to the wall with the screws provided. Recommended 25.4cm Warning:...
  • Page 5 Step 3: Wrap PTFE tape around the hot and cold water supply outlets. Place the filters into the hot and cold outlets. Connect the two flexi-hoses to the water supply outlets, with the hot water supply on the left and the cold water supply on the right. Tighten with a spanner. Step 4: Hang the shower tower on the wall brackets.
  • Page 6: Temperature Adjustment

    Step 5: Turn on the water supply, run the shower and check all joints for any leaks. Open the hot and cold water, test the shower with the temperature settings at 30˚C, 38˚C and 50˚C. Note: To increase the temperature past 38˚C, press the button on the temperature handle and turn anti-clockwise.
  • Page 7 • To set the correct temperature indicator position; the three points on the scale plate, black plastic rotator limiter and slotted axial valve should line up to the 12-O’clock position. Achieve the temperature you want, turn the flow control off, and refit the handle.
  • Page 8: Troubleshooting

    Maintenance: If the water flow is less than normal and temperature control is imprecise after a period of usage. It is often due to the poor water which blocks the small filter net. The cleaning method: First, turn off the water supply remove the shower tower from the brackets. Then unscrew the end caps off the flexi-pipes with an adjustable wrench.
