Scanstrut FLIP PRO PLUS SC-USB-F4 Installation Instructions

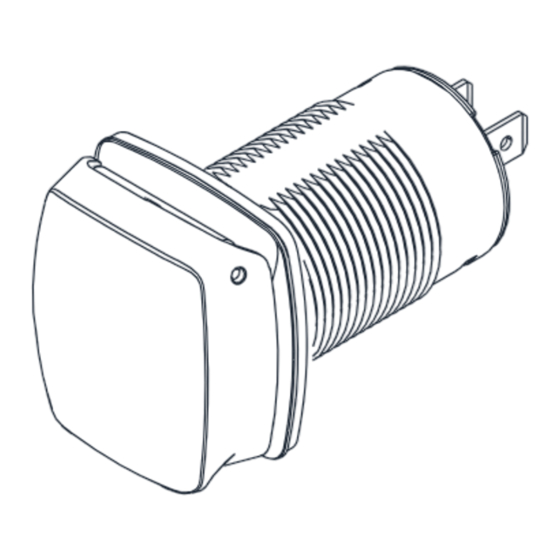

FLIP PRO PLUS - FAST CHARGE USB-A & USB-C SOCKET (SC-USB-F4)
(not illustrated)
SC-USB-F4-001 Deutsch Connector
SC-USB-F4-002 Flying Lead
Technical information:
Input voltage
12/24V system
Input current
max
(12V system)
USB-A USB-C
5V⎓3A, 5V⎓3A,
Output type
9V⎓3A, 9V⎓3A,
12V⎓3A 12V⎓3A
MAX MAX
Standby draw
Waterproof
IPX4 front only lid closed
rating
For latest tech info visit: www.scanstrut.com/USB
READ IMPORTANT SAFETY INFORMATION BEFORE
INSTALLING.
1
FRONT INSTALL ONLY
Draw a centre line to align template,
ensure line is square on surface and
correct orientation.
90°
5
REAR INSTALL ONLY
Tighten lock ring onto product until
secure.
10-32V DC
6A
(24V system)
USB-A USB-C
5V⎓3A,
5V⎓3A,
9V⎓3A,
9V⎓3A,
12V⎓3A,
12V⎓3A 15V⎓3A,
20V⎓3A
MAX
MAX
< 0.1W
2
Use drilling template to drill ø32mm
(1 1/4") hole.
3mm (0.11") Min
25mm (1") Max
FRONT INSTALL ONLY
Apply silicone seal on fixings and pilot holes. Place the
front fit bezel over charger and fix bezel in place. Make
sure the bezel orientation is correct.
TOP
17-011-2023 (Issue 1)
Parts list:
USB charger Gasket Lock ring
x1 x1
Front install only
No.6x20mm
Front fit bezel screws
x1 x2
3
FRONT INSTALL ONLY
Drill 2 pilot holes for front fit bezel.
Pilot Hole Size
Material
Soft Material e.g Plywood
Hard Material e.g Fiberglass
UK & International
+44 (0)1392531280
sales@scanstrut.com
Installation Instructions
Tool list:
32mm (1 1/4") Hole saw
Front install only
x1
Drill bit 2.5mm (3/32") or
3mm (1/8")
Silicone
4 Feed barrel through the gasket and
hole.
No. 6 Screw
2.5mm (3/32")
3mm (1/8")
6
Connect to 12/24V supply, ensuring a waterproof
connection. Fuse and select cable diameter according
to input voltage and current for your specific
installation.
For further installation
and warranty information
please visit: +1 860 308 1416
www.scanstrut.com usasales@scanstrut.com
Drill
Pozi Screwdriver
USA
