Summary of Contents for Diamond ICE155WS-R2

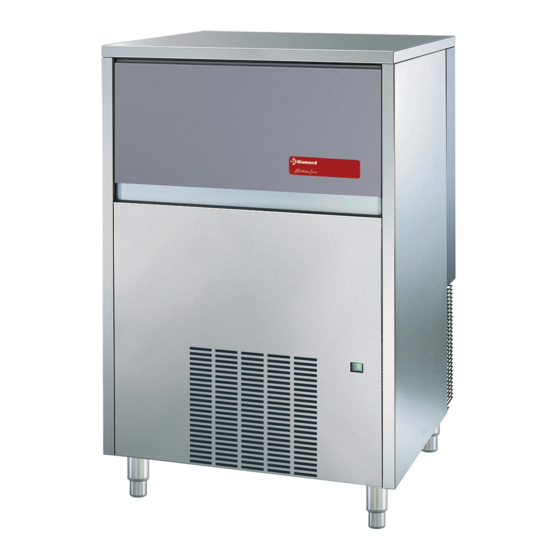

- Page 1 08/2018 Mod: ICE155WS-R2 Production code: GB1555W HC...
- Page 2 EC DECLARATION OF CONFORMITY The above-mentioned apparatus is designed for the production of ice. We the undersigned declare under our own exclusive responsibility that the ice maker referred to in this declaration is in full compliance with the requirements of the following European Directives, standard, regulations, technical specifications and subsequent modifications.
-
Page 3: Table Of Contents
Dear Customer, congratulations on choosing a top-quality product, which is sure to live up to your expectations. Please read this instruction manual carefully before using your new automatic ice flaker. TABLE OF CONTENTS IMPORTANT ADVICE AND RECOMMENDATIONS TECHNICAL SPECIFICATIONS ADVICE ABOUT TRANSPORTATION UNPACKING INSTALLATION 5.1 CONNECTION DIAGRAM... -
Page 4: Important Advice And Recommendations
1 IMPORTANT ADVICE AND RECOMMENDATIONS Symbol ISO 3864-B.3.2 CAUTION: Fire hazard Before installing and using the appliance, read the advice and recommendations contained in this instruction manual very carefully. They are given in order to ensure safe installation, use and maintenance of the appliance. Before to start, make sure that the appliance is intact. - Page 5 • in places with a minimum volume of 1 m for every 8 grams of R290; the quantity is indicated on the data plate affixed to the appliance • in places with flat, intact flooring, with no channels or grilles or other connections to the floors below, where in the event of leakage the gas could accumulate (R290 refrigerant is heavier than air and tends to accumulate downwards)
- Page 6 In the event of damage to the refrigerant circuit: switch off the machine immediately, disconnect it from the power supply, ventilate the environment, call authorized service. This instruction manual forms an integral part of the automatic granular ice flakers (also more simply called “appliance” in the text) and must be kept for possible future consultation.
- Page 7 In the event of the appliance being sold or transferred to another person, this Manual must be handed over to the new user, in order to enable him to become familiar with the operation of the equipment and the corresponding advice and recommendations. Before installing and using the appliance, read the advice and recommendations contained in this Instruction Manual very carefully.
- Page 8 yourself. Contact only professionally qualified and authorized personnel • in addition to rendering any form of warranty null and void, modifying (or attempting to modify) this appliance is extremely dangerous • open and close the door carefully without slamming it •...
-
Page 9: Advice About Transportation
Should you decide to scrap appliance, first disconnect the power cable from the mains, and then cut the cable off. In addition, proceed as follows: • break off and remove the door in order to prevent the possible danger of a child getting trapped inside •... -
Page 10: Installation
Lift the appliance using equipment fit to bear its weight. Separate the appliance from the wooden pallet and fit the supplied feet into the housings on the base plate provided for the purpose (6 in Fig. 3). Use a spirit level to ensure that the appliance is standing perfectly level. If necessary, adjust the feet. 5 INSTALLATION 5.1 CONNECTION DIAGRAM (Fig. -
Page 11: Start-Up
• the appliance must be connected to the electricity mains by professionally qualified personnel in accordance with the Manufacturer’s instructions • before connecting the appliance to the electricity mains, make sure that the mains voltage rating corresponds to the value indicated on the rating plate •... -
Page 12: Operation
• should any trace of water appear, check the drain hole of the container to ensure that it is not clogged, that the water fill and drain pipes are correctly connected and are not throttled or damaged • make sure that the temperature of the air or water does not exceed the installation limit values (see paragraph 5.2) •... -
Page 13: Cleaning
Complete sanitizing can only be carried out only by the Authorized Technical Service Centres, and must be done regularly depending on the conditions of use of the appliance, the chemical and physical features of the water, and after every period in which the appliance has remained at a standstill for any length of time. -
Page 14: Periods At A Standstill
• suitable for use with food-making machinery • not harmful to the materials and components of this appliance For the directions for use and concentrations, please refer to those shown on the packaging and recommended by the manufacturer. We recommend using the solution at the temperature of 25°C. 1.
