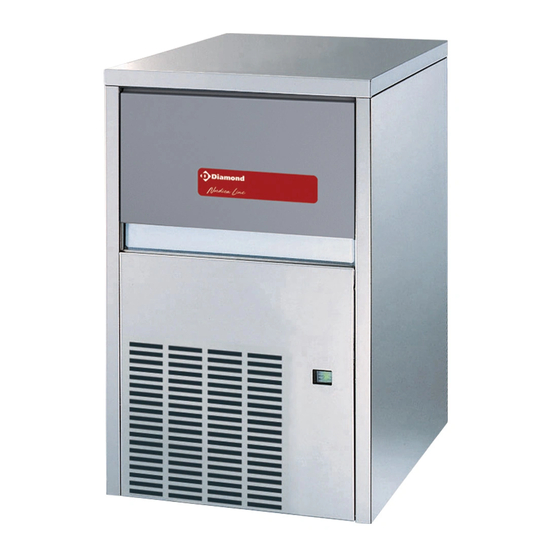

- Page 1 03/2023 Mod: ICE70WS-R2 Production code: GB601W HC...
- Page 2 EC DECLARATION OF CONFORMITY The above-mentioned apparatus is designed for the production of ice. We the undersigned declare under our own exclusive responsibility that the ice maker referred to in this declaration is in full compliance with the requirements of the following European Directives, standard, regulations, technical specifications and subsequent modifications.
-
Page 3: Table Of Contents
Dear Customer, congratulations on choosing a top-quality product, which is sure to live up to your expectations. Please read this instruction manual carefully before using your new automatic ice flaker. TABLE OF CONTENTS IMPORTANT ADVICE AND RECOMMENDATIONS TECHNICAL SPECIFICATIONS ADVICE ABOUT TRANSPORTATION UNPACKING INSTALLATION 5.1 CONNECTION DIAGRAM... -
Page 4: Important Advice And Recommendations
1 IMPORTANT ADVICE AND RECOMMENDATIONS Before installing and using the appliance, read the advice and recommendations contained in this instruction manual very carefully. They are given in order to ensure safe installation, use and maintenance of the appliance. Before to start, make sure that the appliance is intact. If in doubt, do not use it and contact the authorized technical assistance center. - Page 5 In the event of damage to the refrigerant circuit: switch off the machine immediately, disconnect it from the power supply, ventilate the environment, call authorized service. This instruction manual forms an integral part of the automatic granular ice flakers (also more simply called “appliance” in the text) and must be kept for possible future consultation.
- Page 6 In the event of the appliance being sold or transferred to another person, this Manual must be handed over to the new user, in order to enable him to become familiar with the operation of the equipment and the corresponding advice and recommendations. Before installing and using the appliance, read the advice and recommendations contained in this Instruction Manual very carefully.
- Page 7 yourself. Contact only professionally qualified and authorized personnel • in addition to rendering any form of warranty null and void, modifying (or attempting to modify) this appliance is extremely dangerous • open and close the door carefully without slamming it •...
-
Page 8: Advice About Transportation
Should you decide to scrap appliance, first disconnect the power cable from the mains, and then cut the cable off. In addition, proceed as follows: • break off and remove the door in order to prevent the possible danger of a child getting trapped inside •... -
Page 9: Installation
5 INSTALLATION 5.1 CONNECTION DIAGRAM (Fig. 4) 7. electrical connection controlled by omnipolar circuit-breaker with residual current device 8. water tap 9. water supply pipe 10. water drainage pipe 5.2 POSITIONING The appliance must be installed in a hygienically clean location; avoid premises such as cellars and storerooms, because poor hygiene promotes the formation and proliferation of bacteria in the appliance. -
Page 10: Start-Up
• make sure that the appliance is connected to an efficient earthing system • make sure that the capacity of the power supply system suits the maximum power value indicated on the rating plate of the appliance • the appliance is supplied with a plug, prepare a socket controlled by an omnipolar circuit-breaker (7 in Fig. 4), with a contact- opening gap of not less than 3 mm, that provides full disconnection under overvoltage category III conditions, sin accordance with national safety standards currently in force. -
Page 11: Operation
If the fault still persists after the above inspections have been made, turn off the electric power source by means of the switch fitted during the installation phase, pull out the plug (if any) from its socket, turn off the tap connecting the appliance to the water mains, and contact the nearest Authorized Technical Service Centre. -
Page 12: Cleaning
• cleaning the ice-tray • checking the charge of coolant gas • checking the operating cycle • sanitizing the appliance The frequency of cleaning and sanitizing operations can vary, depending on: • temperature and environmental conditions • temperature and quality of water (hardness, presence of grit, etc.) •... -
Page 13: Periods At A Standstill
3. switch on the appliance and let it run, topping up the level of the solution in the basin until at least 2 litres of solution has been used 4. switch off appliance and disconnect from power supply mains 5. remove all ice from bin 6.
