Amp-Master™ AM-LV-1000
User's Manual
1. OVERVIEW
1.1 INTRODUCTION
The Amp-Master™ AM-LV-1000 is a low-voltage current recorder that is installed onto LV power
cables where it measures and stores a profile of the currents flowing. The device has three flexible
current transformers for performing 3-phase measurements. The device ships with PC-based
software which is used to configure the unit as well as to download and view recorded data. The
recorders are shipped with a padded carry-case for carrying the recorders and ancillary equipment.

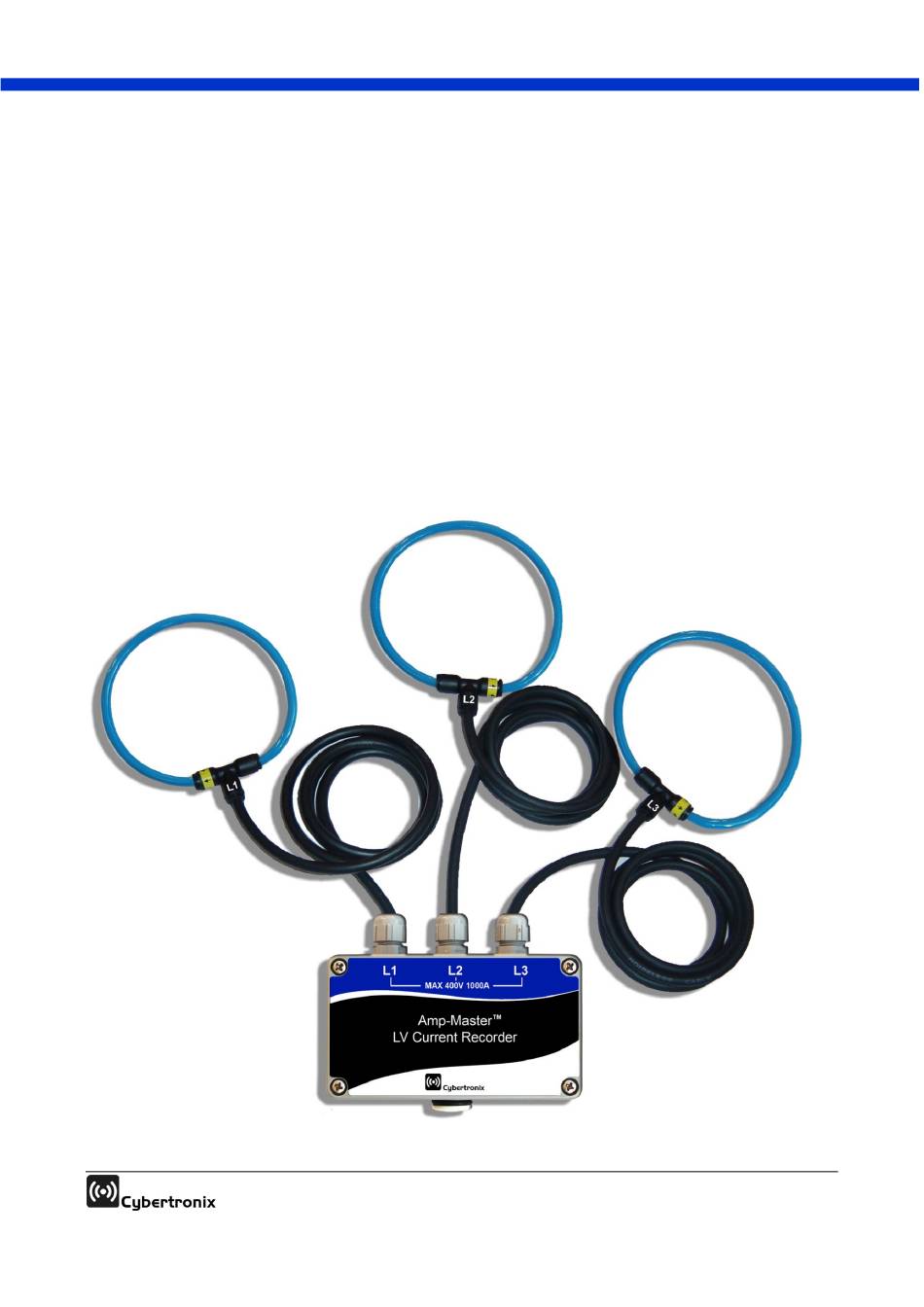

A photograph of a recorder is shown in Figure 1.
FIGURE 1: AMP-MASTER™ LV CURRENT RECORDER
Version 2.0
Page 3 of 16
