Emerson Branson GSX-E1 V2 Quick Start User Manual

Step 1:
Connect the Monitor and Power Supply

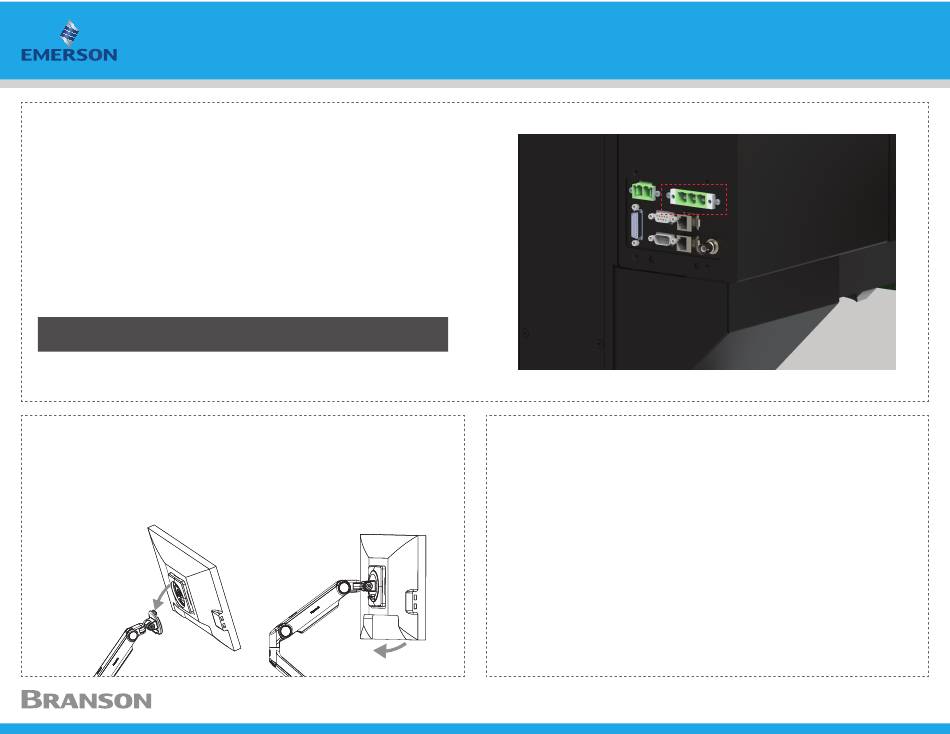

1. Uncrate the machine and locate the monitor and line cord
Plug and screw in the line cord at the back of the power supply (see Figure 1)
2.
3. Slide the monitor onto the arm and lock in place (see Figure 2)
4. Insert two cables into the back of the monitor:
- Ethernet cable
- Power cable
Assemble and insert an ultrasonic stack per the User Manual.
5.
- Pull the magnetic cover towards you to remove it. Remove the cover and
install stack (see Chapter 4 of the GSX-E1 User Manual for detailed instructions)
Note: Cables will fit specifically into each component; they're not
interchangeable
1. Tilt the monitor back and lower onto the arm, so that the hook fits into the
corresponding hole on the VESA bracket. Then rotate the bottom of the monitor
back towards the arm until the tab snaps in place
2. To remove, lift the release tab and pull the bottom of the monitor away from the
arm, then lift free of the hook
Figure 2: Monitor
Contact your local Branson expert for any questions related to startup
GSX-E1 V2 Quick Start User Guide
Figure 1: Line Cord Connector
Step 2:
Power ON the GSX-E1 System
1. Apply appropriate power to device (refer to User Manual)
2. Turn on the GSX-E1 system using the power button at the front of the power
supply (see Figure 3 on reverse)
3. A login screen will appear. Enter username and password (see Chapter 5 of the
GSX-E1 User Manual for detailed instructions)
4. The next screen will allow the original password to be changed
EDP 4000797
REV. 01
