Insignia NS-UZ14XSS8 User Manual

13.8 cu.ft. upright freezer
Hide thumbs Also See for NS-UZ14XSS8:
Table of Contents

Advertisement

Quick Links

USER GUIDE
13.8 Cu.Ft. Upright Freezer
NS-UZ14XSS8
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-UZ14XSS8 and is the answer not in the manual?

Questions and answers

Related Manuals for Insignia NS-UZ14XSS8

Summary of Contents for Insignia NS-UZ14XSS8

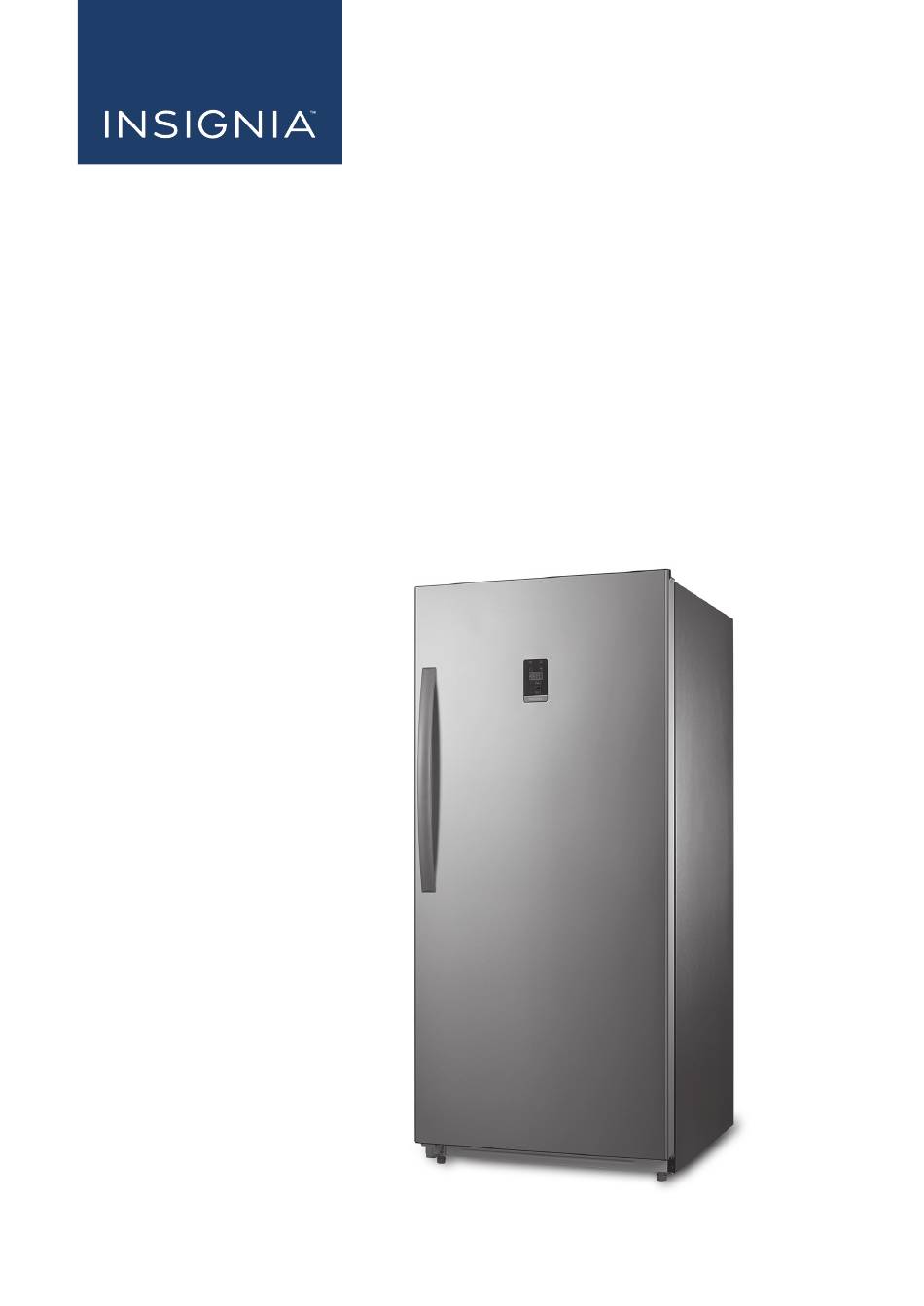

  • Page 1 USER GUIDE 13.8 Cu.Ft. Upright Freezer NS-UZ14XSS8 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY ....... . . 19 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-UZ14XSS8 represents the state of the art in upright freezer design and is designed for reliable and trouble-free performance. www.insigniaproducts.com...

  • Page 3: Important Safety Instructions

    13.8 Cu.Ft. Upright Freezer Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your freezer. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your freezer.
  • Page 4 NS-UZ14XSS8 15 Do not handle the plug with wet hands. This could result in an electric shock. 16 Unplug the power cord by holding the plug, never by pulling the cord. 17 Do not turn the appliance on or off by plugging or unplugging the power cord.

  • Page 5: Grounding Requirement

    13.8 Cu.Ft. Upright Freezer 5 WARNING–Do not damage the refrigerant tubing when handling, moving, or using the freezer. 6 WARNING–DANGER—Never allow children to play with, operate, or crawl inside the freezer. Risk of child entrapment. Before you throw away your old freezer: 1) Take off the doors 2) Leave the shelves in place so that children may not easily climb inside...

  • Page 6: Features

    NS-UZ14XSS8 Features Package contents • 13.8 cubic foot upright freezer • Door handle, screws, and hex wrench • Quick Setup Guide Interior Notes The illustrations shown in this user guide are only for reference. The actual product may differ slightly.

  • Page 7: Touch Pad Controls

    13.8 Cu.Ft. Upright Freezer Touch pad controls Door open High temperature indicator/alarm indicator/alert Lower temperature Raise temperature button button Temperature indicator Quick freeze button Control Panel Lock/Unlock button Freezer/Fridge mode button Setting up your freezer Before using your freezer • Remove the exterior and interior packing, especially the foam packing between the outside condenser and the cabinet.

  • Page 8: Finding A Suitable Location

    NS-UZ14XSS8 Finding a suitable location • Place your freezer on a floor that is strong enough to support the freezer when it is fully loaded. • This freezer is designed to be free standing only, and should not be recessed or built-in.

  • Page 9: Providing A Proper Power Supply

    13.8 Cu.Ft. Upright Freezer Providing a proper power supply Check your local power source. This freezer requires a 115V, 60Hz power supply. Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this freezer.

  • Page 10: Installing The Door Handle

    NS-UZ14XSS8 Installing the door handle Notes • The illustrations shown in this user guide are only for reference. The actual product may differ slightly. • The screws and wrench are in the plastic bag. 1 Unplug the freezer. 2 Screw the extended-head screws into the door holes with a Phillips screwdriver.
  • Page 11 13.8 Cu.Ft. Upright Freezer 3 Loosen the hex screws on top and bottom of the handle with the hex wrench (provided) so that you can fit the handle over the extended head screws in the door. Hex screws are here. Extra hex screws are Provided.

  • Page 12: Using Your Freezer

    NS-UZ14XSS8 Using your freezer The storage life of frozen foods varies and the recommended storage time should not be exceeded. Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

  • Page 13: Switching Between Freezer And Refrigerator Modes

    13.8 Cu.Ft. Upright Freezer Switching between Freezer and Refrigerator modes This freezer has an advanced design feature that lets you change it from a freezer to a refrigerator. The Freezer/Fridge light on the control panel indicates the current mode. 1 Press and hold Lock for three seconds to unlock the control panel. 2 Press and hold the Freezer/Fridge button for three seconds to change modes.

  • Page 14: Storing Your Freezer

    NS-UZ14XSS8 Storing your freezer 1 Unplug your freezer from the wall outlet. 2 Remove all food. 3 Clean the freezer. 4 Leave the door open slightly to avoid possible formation of condensation, mold, or odor. Caution Use extreme caution with children. The unit should not be accessible to child's play.

  • Page 15: Understanding Alerts

    13.8 Cu.Ft. Upright Freezer Understanding Alerts High Temp Alert The freezer is having trouble maintaining a cold temperature. You will get this alert if: • FREEZER MODE: the inside temperature is over 18° F (-8° C) for 36 hours. • FRIDGE MODE: If the inside temperature is over 59°...

  • Page 16: How Do I Reset My Freezer To Factory Defaults

    NS-UZ14XSS8 How do I reset my freezer to factory defaults? 1 Press and hold Lock for three seconds to unlock the control panel. 2 Press the Lock and + buttons at the same time for three seconds to reset the freezer to factory defaults. The panel beeps and all of the indicators turn on for three seconds.
  • Page 17 13.8 Cu.Ft. Upright Freezer PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The freezer door does Food packages are interfering Move the food packages or remove some food. not close completely with the door. The door gaskets are dirty. Clean the door gaskets. The freezer may not be level.

  • Page 18: Specifications

    NS-UZ14XSS8 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The compressor turns The room temperature is hotter This is normal. on and off frequently. than normal. You have just added a large Allow time for the new food to cool, then check again.

  • Page 19: One-Year Limited Warranty

    Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 20 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
  • Page 21 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V3 ENGLISH ©2019 Best Buy. All rights reserved.
