SOFTWARE OVERVIEW

The software provides a realtime graphical and digital interface for monitoring and/or recording pressure, temperature, and
flow rate parameters from the Hydraulic System Analyzer In addition to the graphical and digital displays, the main screen has
a menu bar, buttons with common functions, and alarm indicators
Measurement
(over a 1 second time period)
Average Pressure
Minimum Pressure
Maximum Pressure
Average Temperature
Average Flow Rate
Average Power
June 2022

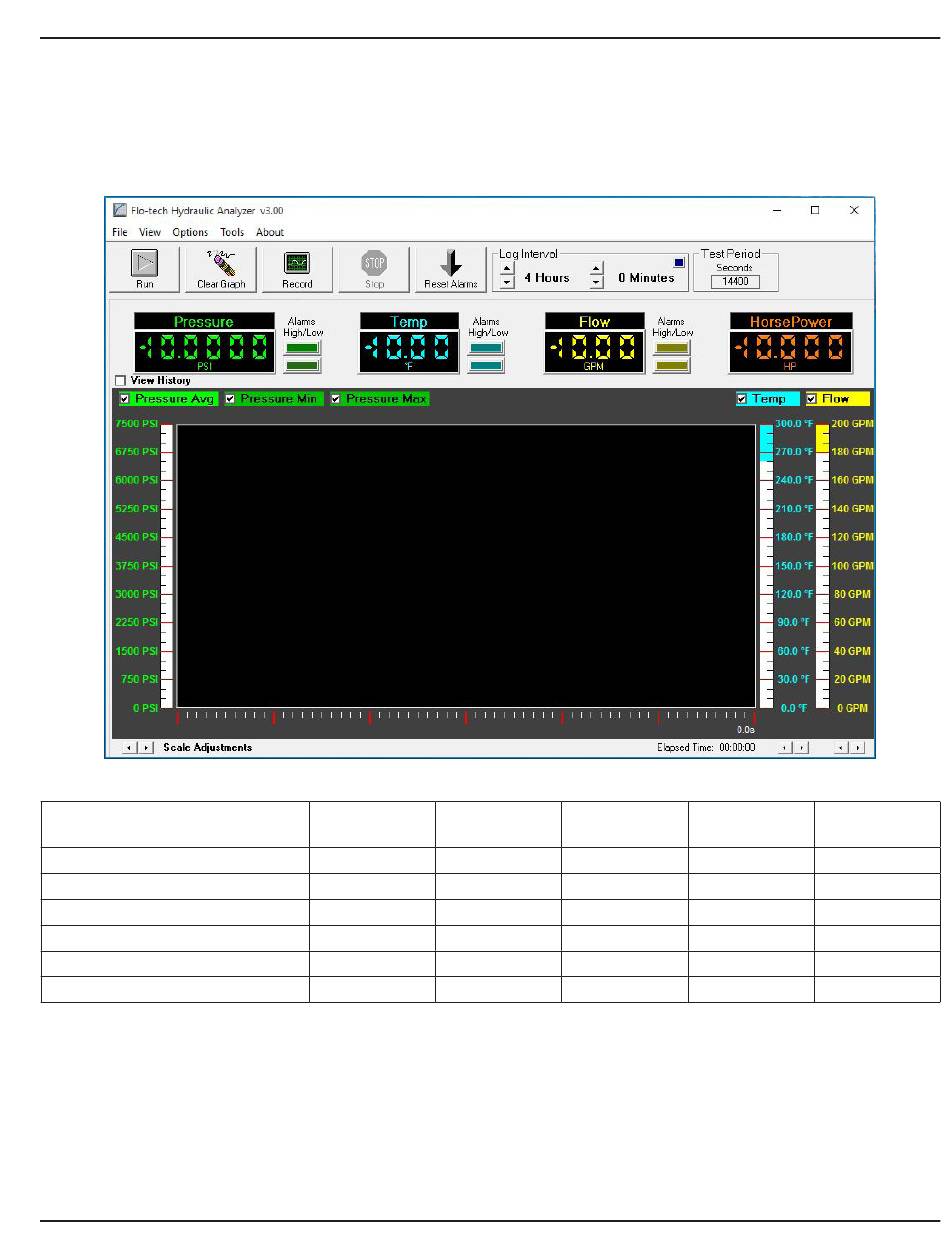

Figure 1: Flo-Check USB hydraulic system analyzer screen
Color Alarm
Indication Indication
•
Green
Dark Green
Dark Green
•
Blue
•
Yellow
Orange
Table 6: Measurement display and record features
TST-UM-02433-EN-02
Digital Graphical
Indication Display
• •
•
•
• •
• •
•
Software Overview
Record to
File
•
•
•
•
•
•
